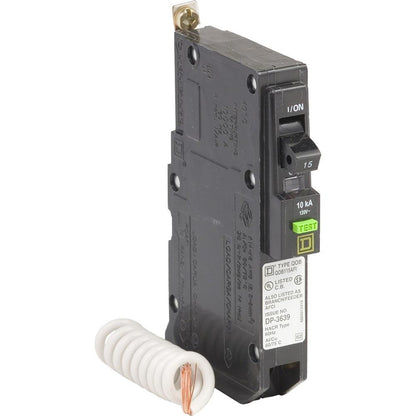

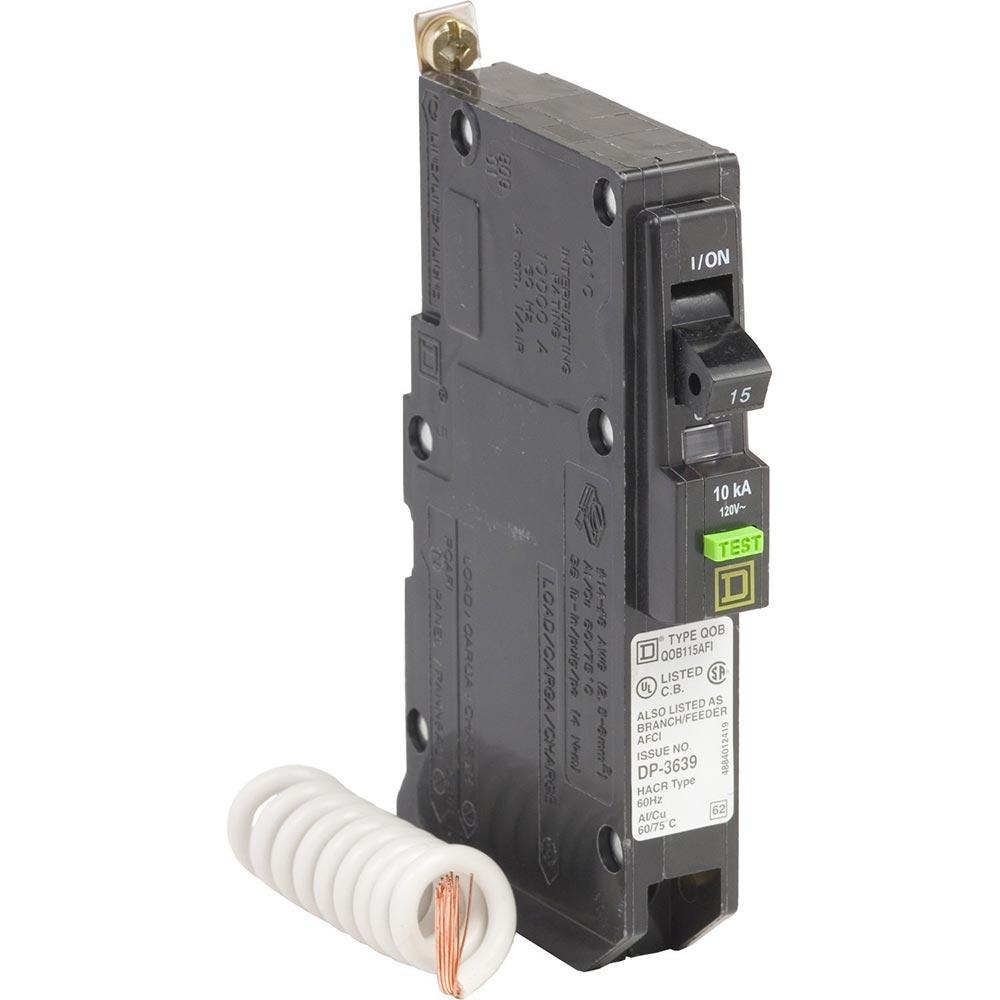

Square D QOB115AFI Circuit Breaker 120/240V 15A 1P 10kA@120V Bolt-on QOB Series

Product Description:
The Square D QOB115AFI is a Molded Case Circuit Breaker from the QOB Series. It is a 1 pole, 15 amp breaker rated for 120/240 volts with a 10kA AIC rating at 120V. This model uses a bolt-on connection and provides thermal magnetic protection. It is designed for use in Square D NQOD Panelboards and meets CSA and UL standards.

Key Features:
✔ Part Number: QOB115AFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Arc Fault Circuit Interrupter
✔ Protection: Thermal Magnetic
✔ UPC: 785901485896
✔ GTIN: 00785901485896
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.75 in x 4.76 in
✔ Weight: 0.57
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: AWG 14 to AWG 8 Copper, AWG 12 to AWG 8 Aluminum
