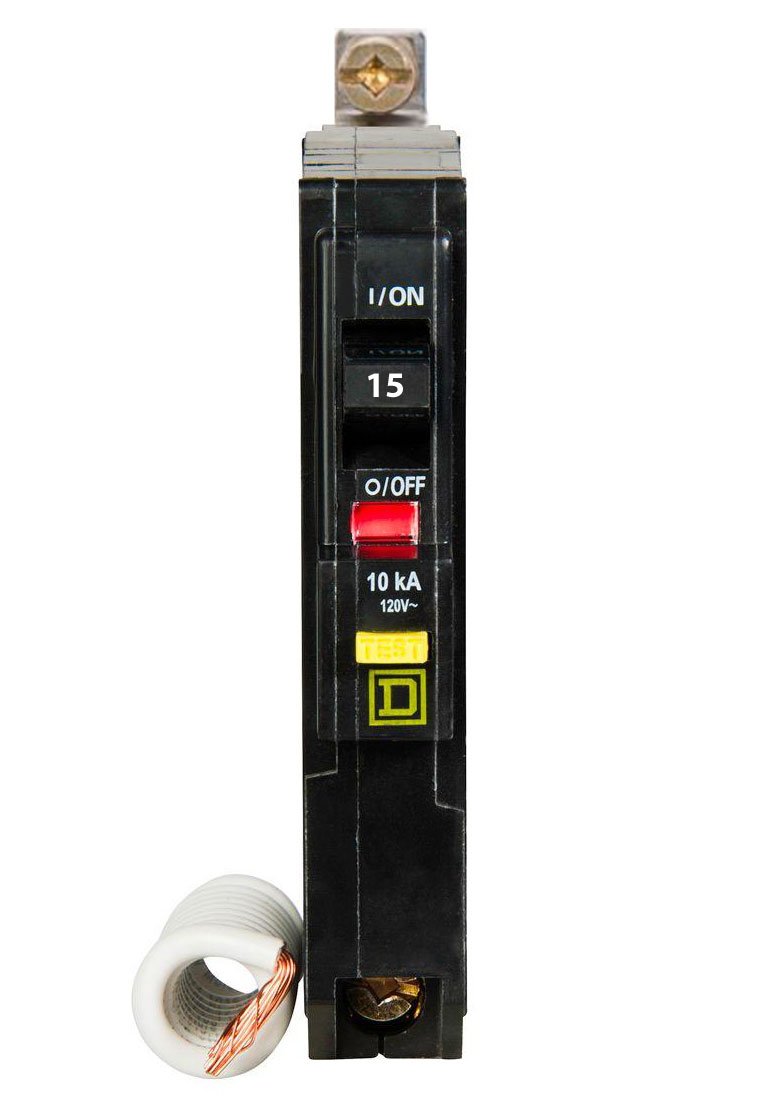

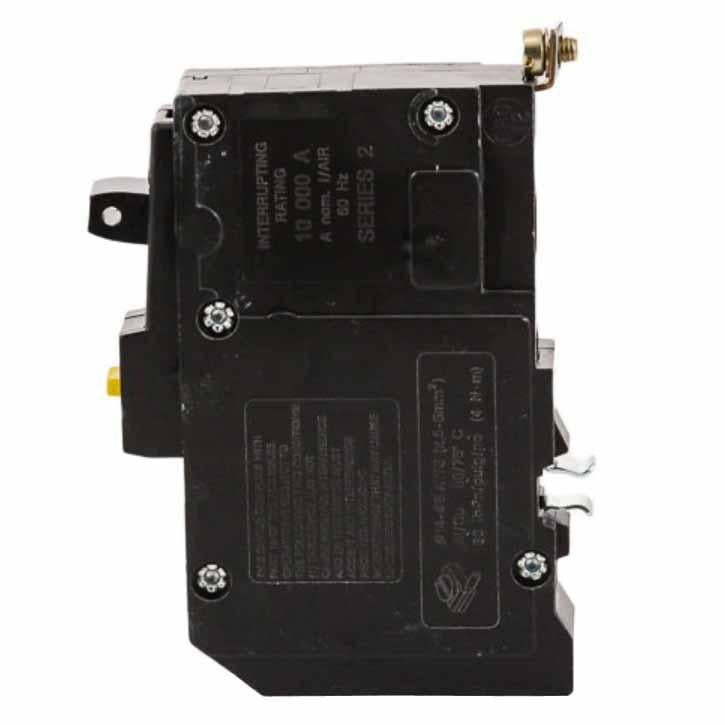

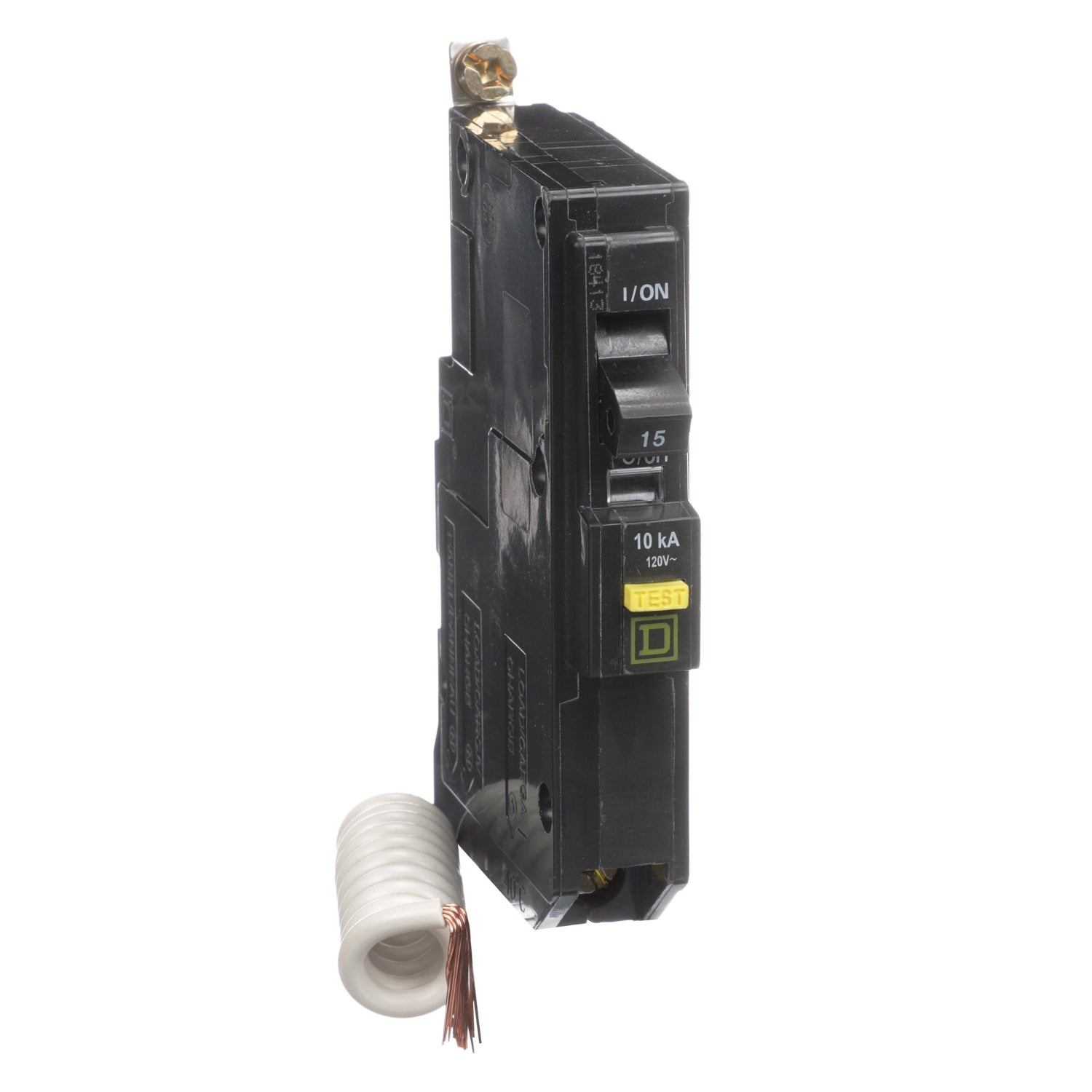

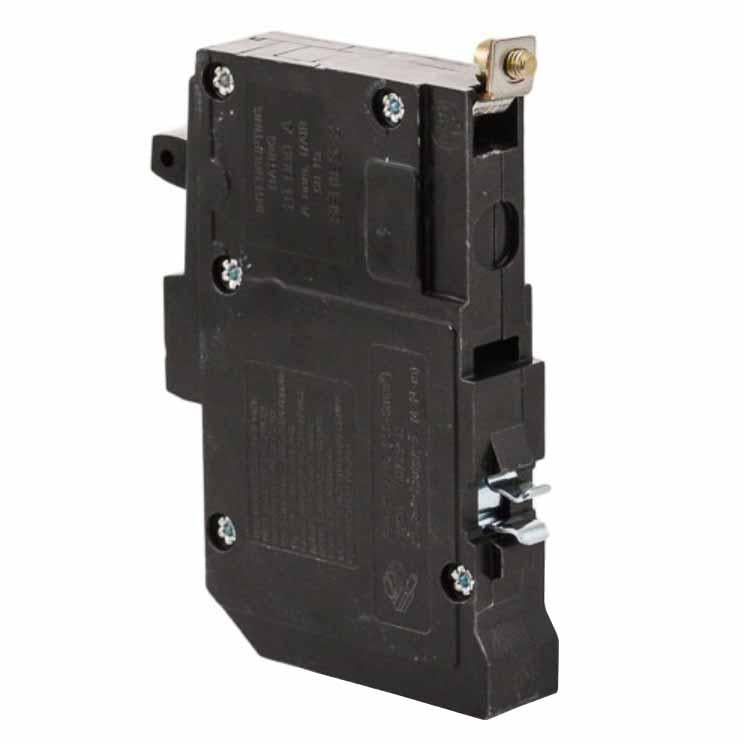

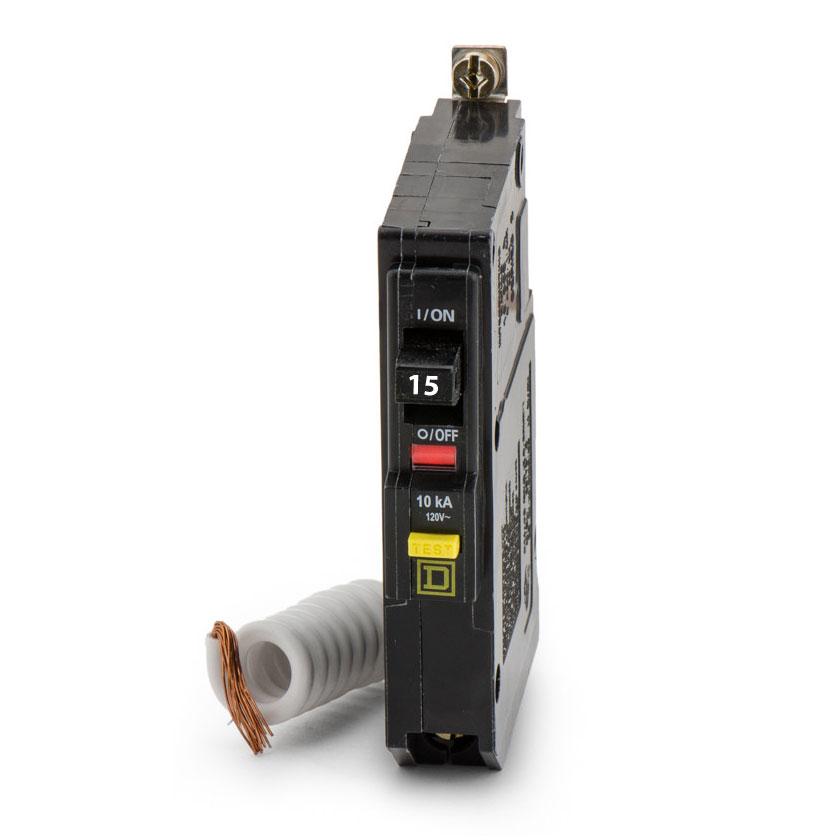

Square D QOB115GFI Circuit Breaker | 120V 15A 1P 10kA@120V Bolt-On GFCI QOB Series

Product Description:
The Square D QOB115GFI is a 1-pole Molded Case Circuit Breaker designed for 120 Volt, 15 amp applications. It features a 10kA@120V AIC rating and uses a Bolt-On connection for secure installation. This GFCI breaker provides Thermal Magnetic protection and is suitable for use in QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QOB115GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120
✔ Amperage: 15
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 785901368700
✔ GTIN: 00785901368700
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.12 in x 4.13 in
✔ Weight: 1
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 12-8 AWG (Aluminum) 14-8 AWG (Copper)
