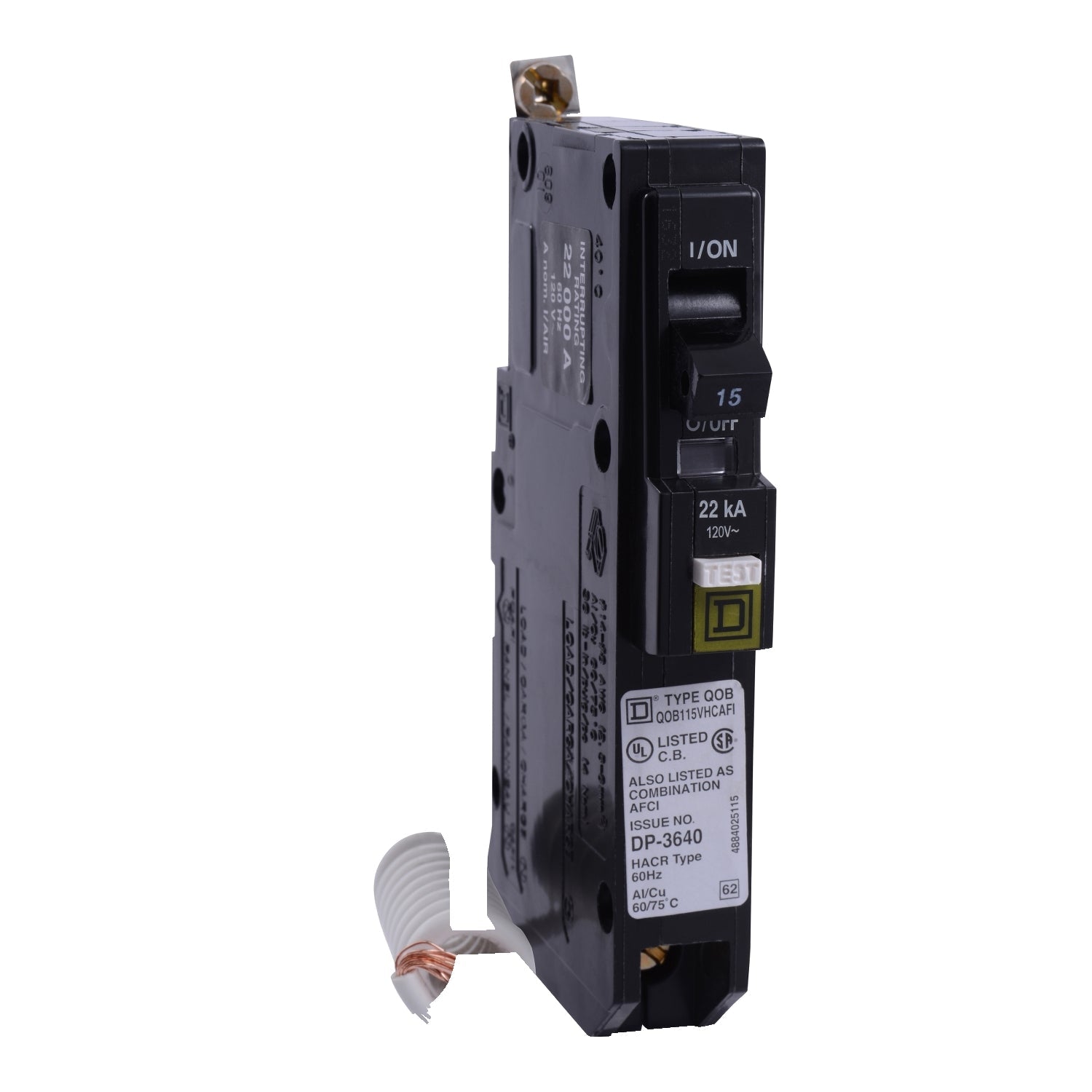

Square D QOB115VHCAFI Circuit Breaker | QO Series QO-AF 120V 15A

Product Description:
The Square D QOB115VHCAFI is a Molded Case Circuit Breaker from the QO Series. It is a 1-pole, 120V, 15A breaker with a 22kA AIC rating and Bolt-On connection. This QO-AF type breaker includes Thermal Magnetic protection and is designed for QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QOB115VHCAFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO-AF
✔ Voltage: 120V
✔ Amperage: 15A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 22kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Arc Fault Circuit Interrupter
✔ Temp Rating: Min. 104°F, Max. 104°F
✔ Certification: CSA, UL Listed
✔ UPC: 606486144261
✔ GTIN: 03606490000000
✔ Country of Origin: Mexico
✔ Dimensions: 3.09 in (78.49 mm) x 4.44 in (112.78 mm)
✔ Weight: 0.26 lbs
✔ Panel Type: QO Load Centers and NQ Panelboards
