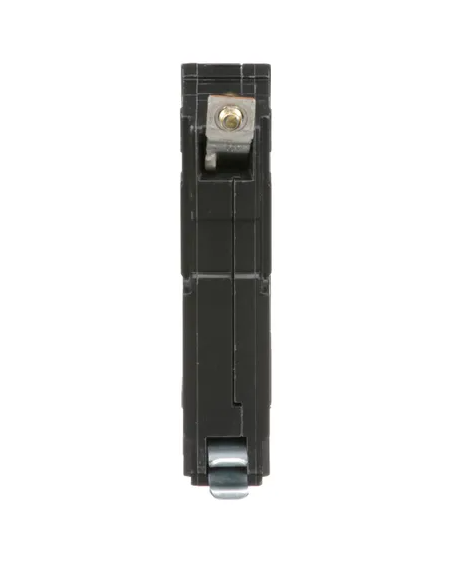

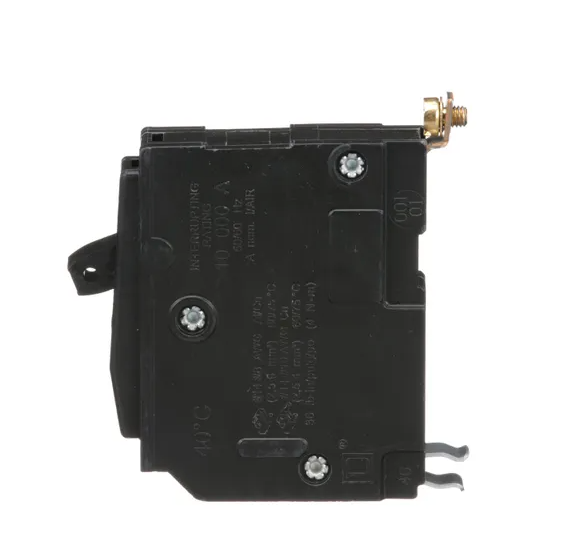

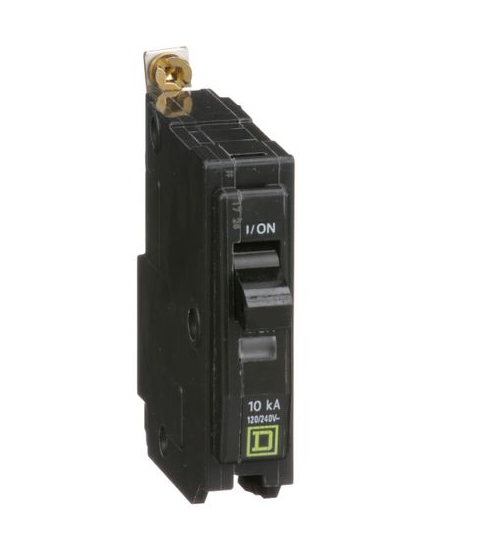

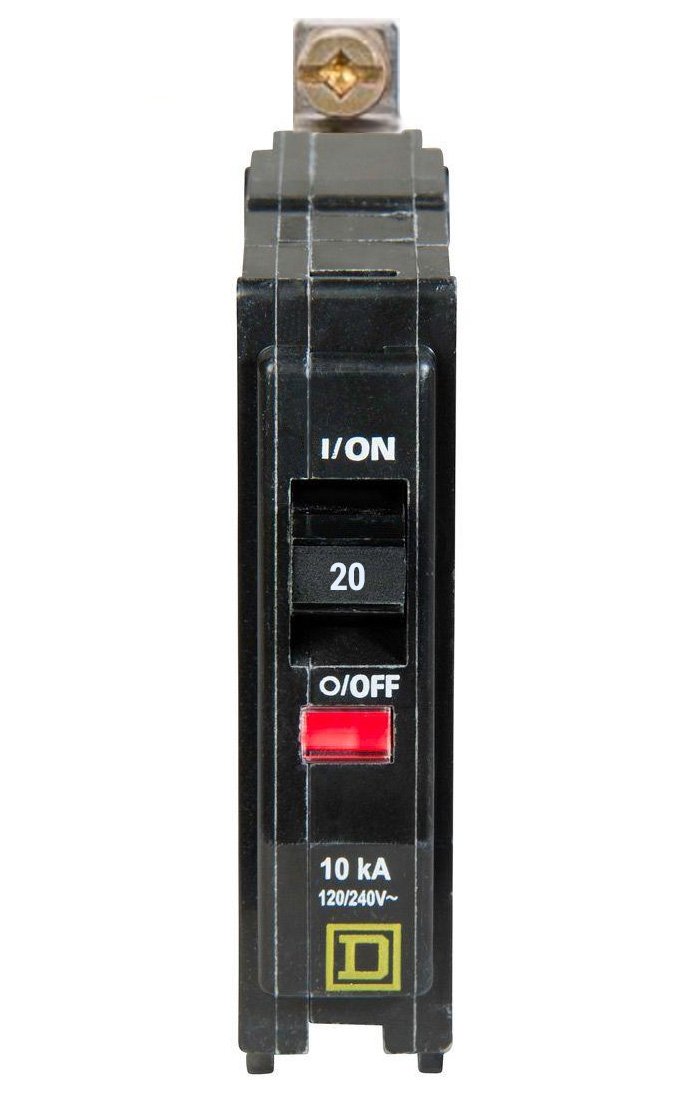

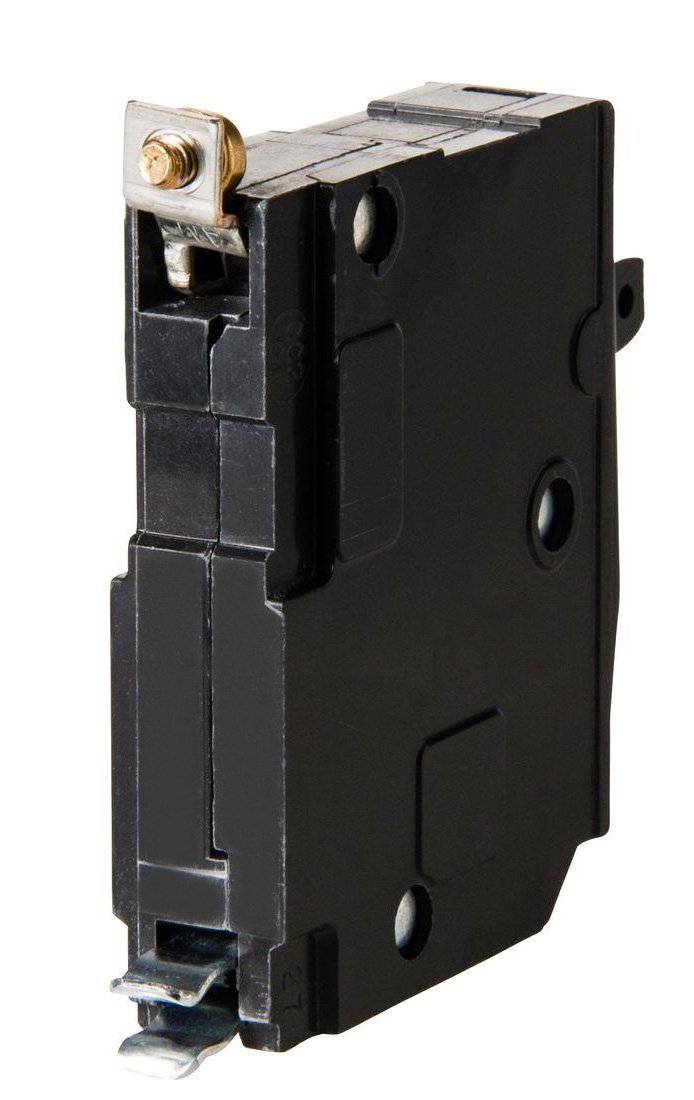

Square D QOB120 Circuit Breaker | 120/240V 20A 1P 10kA@120V Bolt-On QOB Series

Product Description:
The Square D QOB120 is a Molded Case Circuit Breaker from the QOB Series family. It is a 1 pole, 20 amp breaker rated for 120/240 volts with a 10kA interrupting rating at 120V. This bolt-on connection breaker provides thermal magnetic protection and is designed for use in Square D NQOD Panelboards.

Key Features:
✔ Part Number: QOB120
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901416722
✔ GTIN: 00785901416722
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 3 in x 2.99 in
✔ Weight: 0.3
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 14 TO 8 AWG (ALUMINUM/COPPER) (2) 14 TO 10 AWG (COPPER)
