Square D QOB120VHCAFI Circuit Breaker | 120V 20A 1P 22kA@120V Bolt-On Arc Fault QO Series

Product Description:

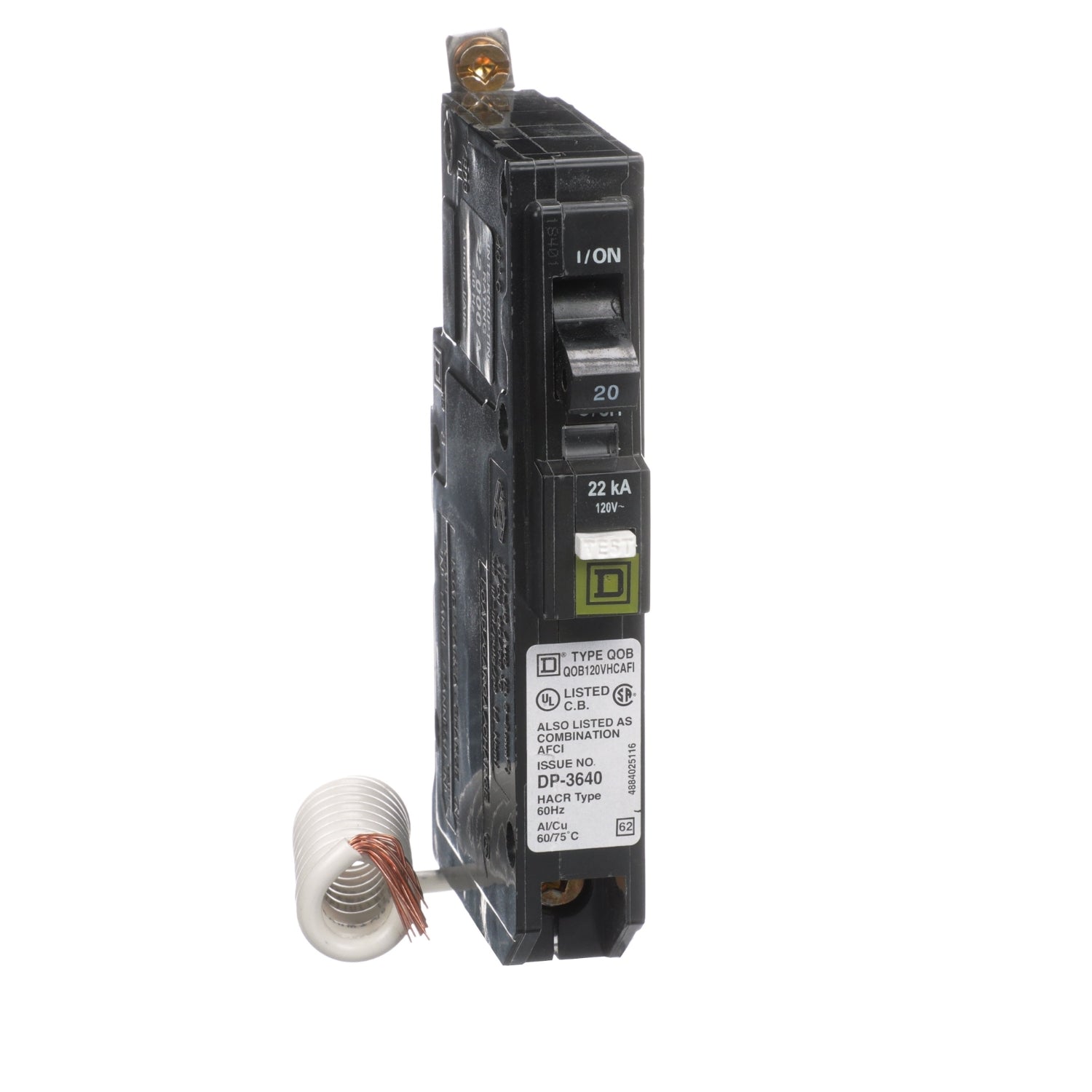

The Square D QOB120VHCAFI is a Molded Case Circuit Breaker from the QO Series family. This 1-pole, 20-amp breaker operates at 120 volts and features an Arc Fault Circuit Interrupter (AFCI) for enhanced safety. It is designed for use in QO Load Centers and NQ Panelboards, providing reliable thermal magnetic protection.

Key Features:
✔ Part Number: QOB120VHCAFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO-AF
✔ Voltage: 120
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 22kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Arc Fault Circuit Interrupter
✔ Protection: Thermal Magnetic
✔ UPC: 785901677918
✔ GTIN: 00785901677918
✔ Country of Origin: United States
✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 0.56
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL, CSA
✔ Wire Size: AWG 12/14, AWG 8 Copper/Aluminum
