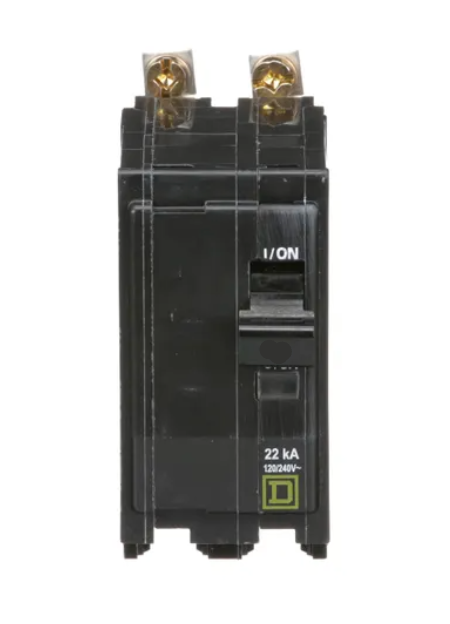

Square D QOB220VH Circuit Breaker | 120/240V 20A 2P 22kA@240V Bolt-on QOB Series

Product Description:
The Square D QOB220VH is a 2-pole molded case circuit breaker designed for 120/240V electrical systems. It has a 20 amp rating and provides reliable thermal magnetic protection. This high interrupting capacity breaker is suitable for use in Square D NQOD panelboards and features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: QOB220VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 20
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901371922
✔ GTIN: 00785901371922
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3 in x 2.99 in
✔ Weight: 0.6
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
