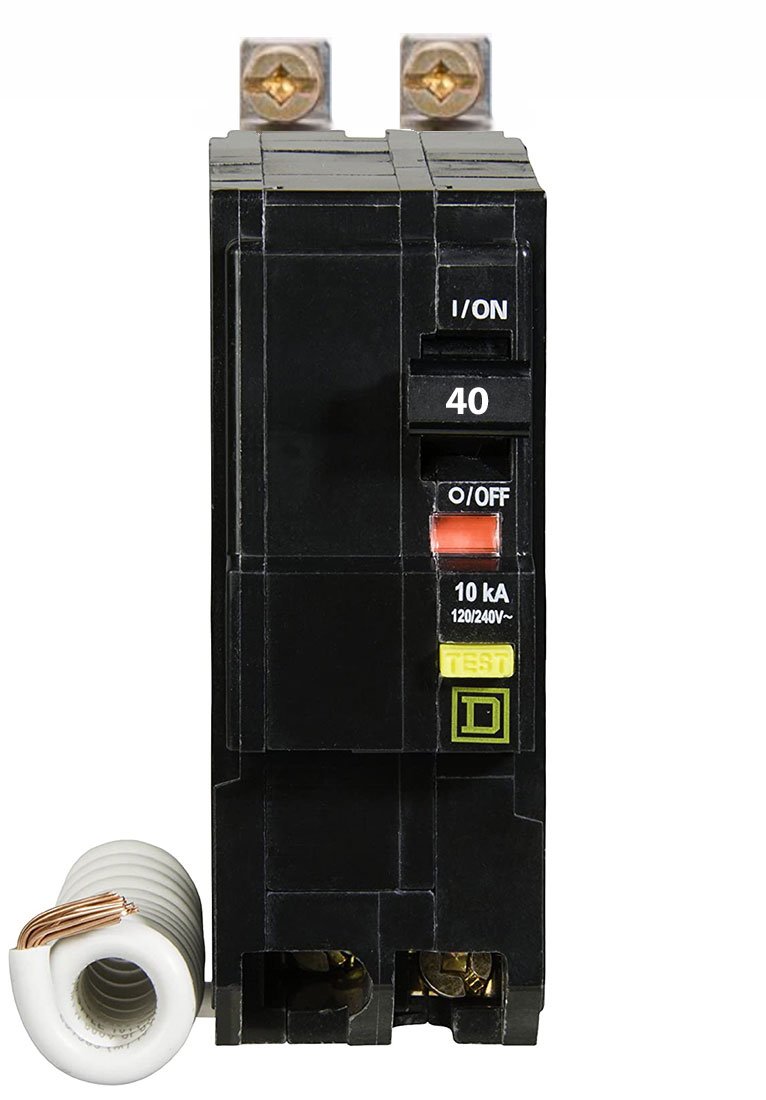

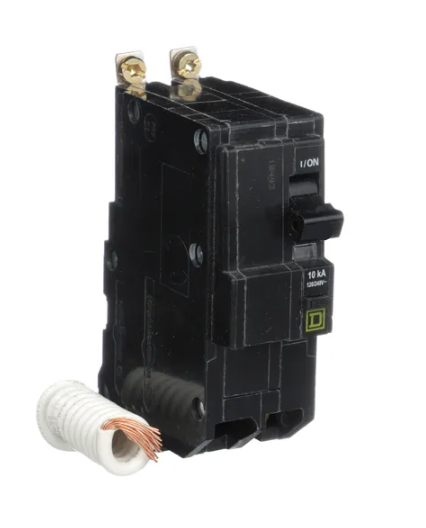

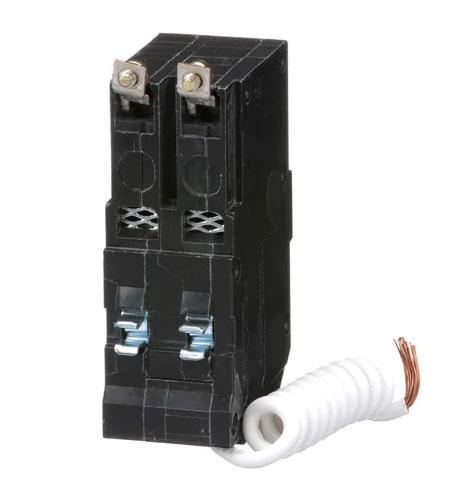

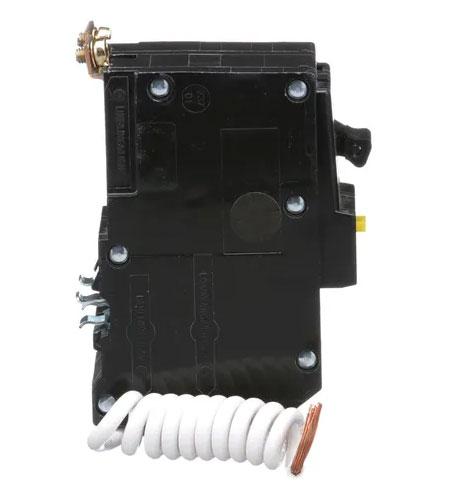

Square D QOB240EPD Circuit Breaker | 120/240V 40A 2P 10kA@120V Bolt-on QOB Series

Product Description:
The Square D QOB240EPD is a 2-pole molded case circuit breaker designed for 120/240V applications. It provides reliable thermal magnetic protection with a 40A rating and a 10kA interrupting capacity at 120V. This bolt-on breaker is suitable for use in QO load centers and NQ panelboards, ensuring safe and efficient circuit management.

Key Features:
✔ Part Number: QOB240EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ Wire Size: Min. 12 AWG (Al), 14 AWG (Cu) Max. 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Ground Fault Equipment Protection
✔ Protection: Thermal Magnetic
✔ UPC: 785901116493
✔ GTIN: 00785901116493
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.12 in x 4.13 in
✔ Weight: 1.02
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
