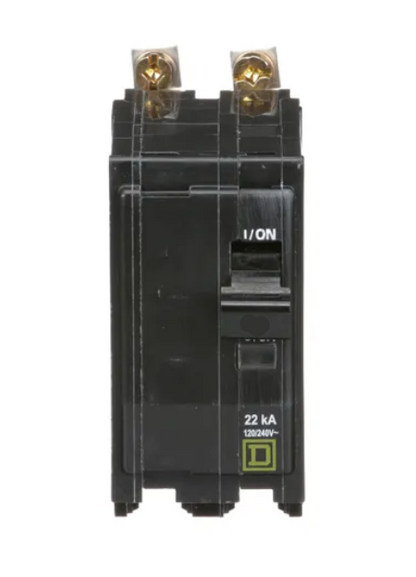

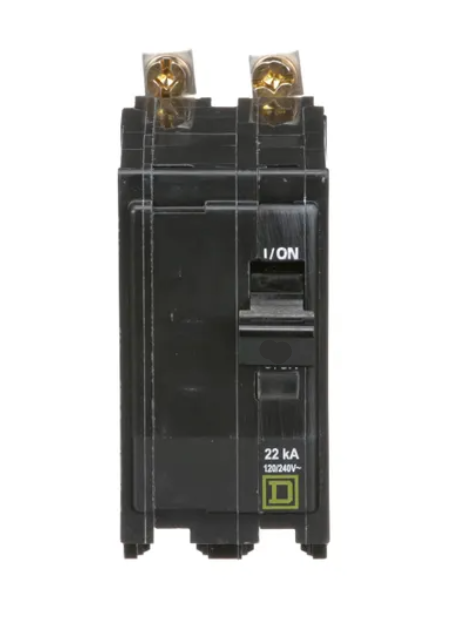

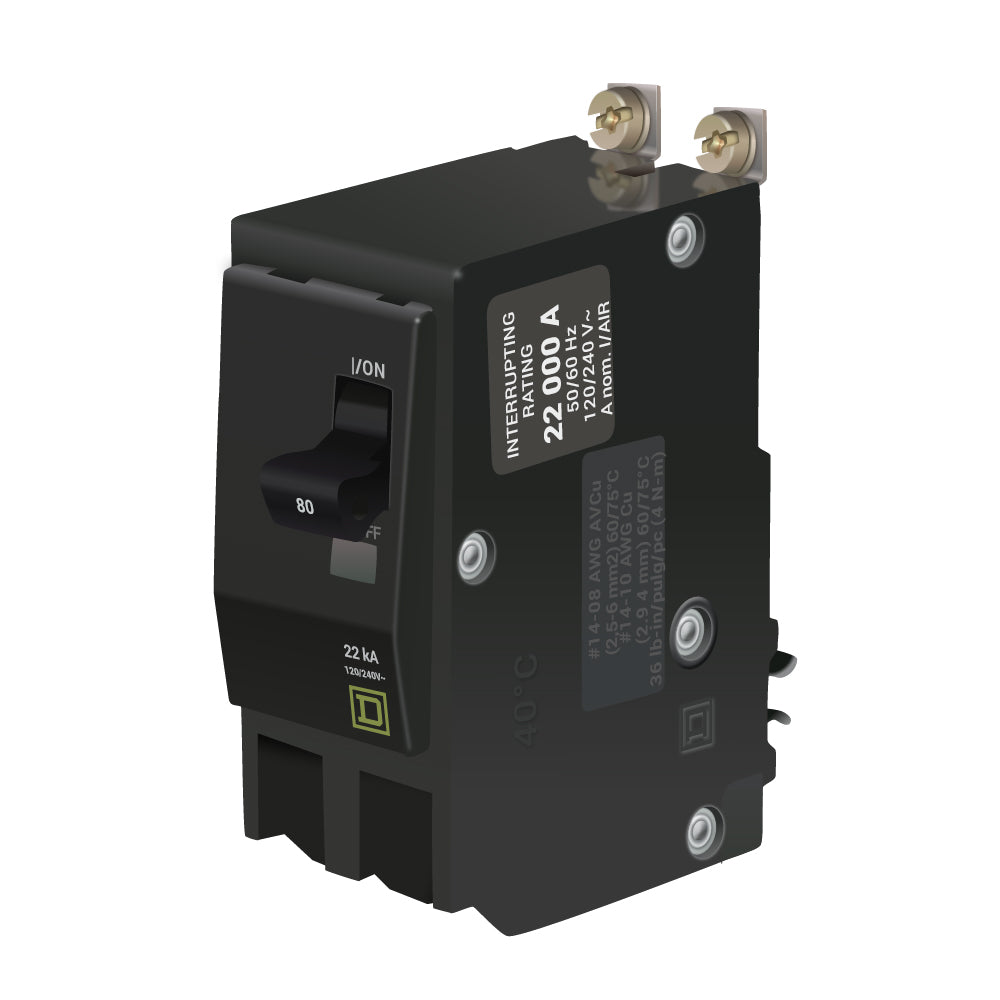

Square D QOB280VH Circuit Breaker | 120/240V 80A 2P 22kA@240V Bolt-on QOB Series

Product Description:
The Square D QOB280VH is a 2-pole molded case circuit breaker designed for 120/240V electrical systems. It offers a 80 amp rating and a high interrupting capacity of 22kA at 240V. This thermal magnetic breaker provides reliable protection against overloads and short circuits. It features a bolt-on connection and is compatible with Square D NQOD panelboards.

Key Features:
✔ Part Number: QOB280VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 80
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901120667
✔ GTIN: 00785901120667
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Weight: 0.32
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
