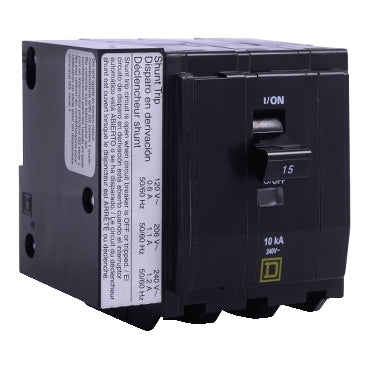

Square D QOB3151021 Circuit Breaker | 240V 15A 3P 10kA@240V QOB Series

Product Description:
The Square D QOB3151021 is a 3-pole molded case circuit breaker rated for 240 volts and 15 amps. It features thermal magnetic protection and a bolt-on connection type for secure installation. This circuit breaker is designed for use in Square D NQOD panelboards and meets UL and CSA standards.

Key Features:
✔ Part Number: QOB3151021
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 785901494379
✔ GTIN: 00785901494379
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 3 in x 2.99 in
✔ Weight: 1.21
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 14 To 8 Awg (Aluminum/Copper) (2) 14 To 10 Awg (Copper)
