Images are for reference only
Square D

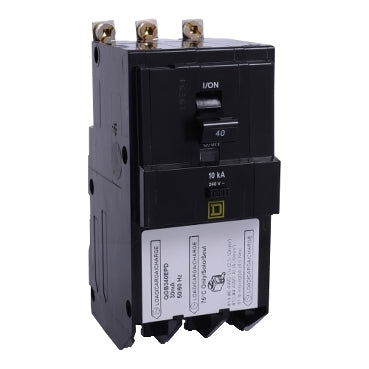

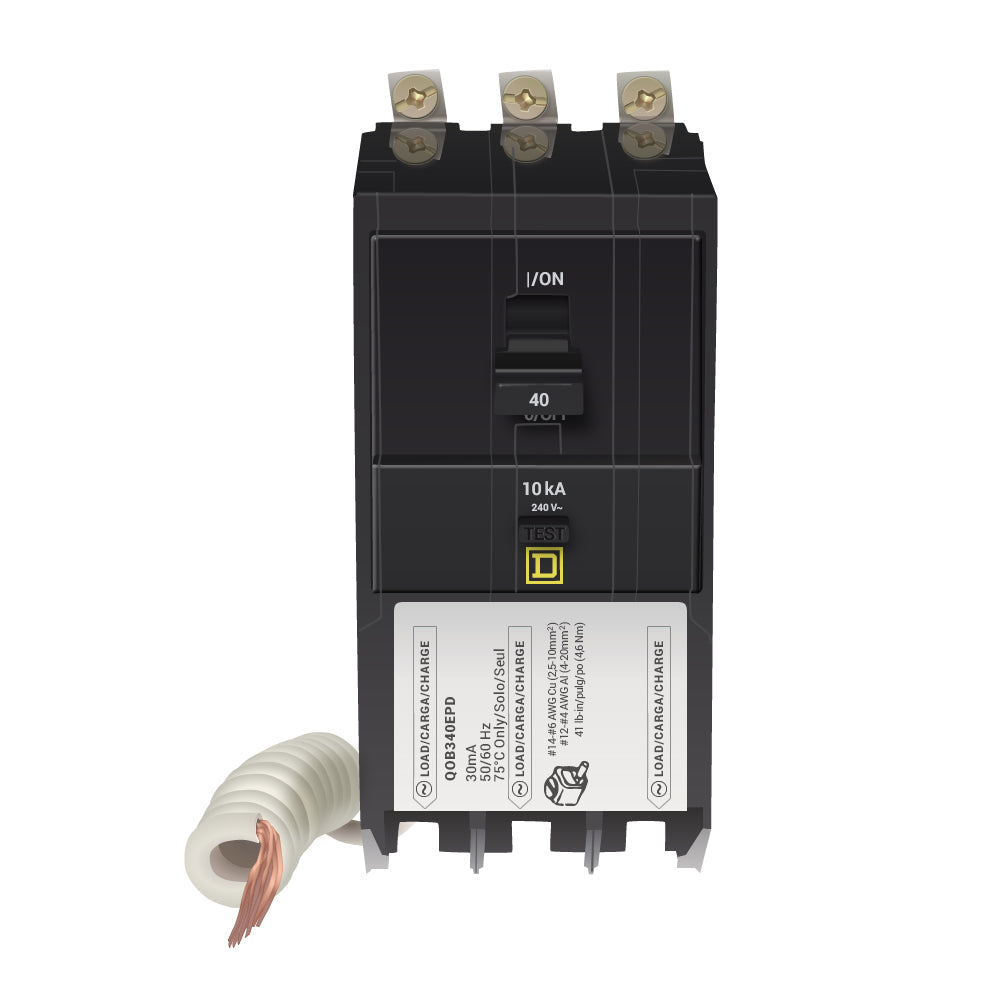

Square D QOB340EPD Circuit Breaker | 120V 40A 3P 10kA@120V Bolt-On QOB Series
Square D QOB340EPD Circuit Breaker | 120V 40A 3P 10kA@120V Bolt-On QOB Series
Price:
Sale
Sold out
Regular price
$783.35 USD
Regular price
$1,188.00 USD
Sale price
$783.35 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D QOB340EPD is a 3-pole molded case circuit breaker rated for 40 amps and 120 volts. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker is designed for use in QO load centers and NQ panelboards and has an interrupting rating of 10kA at 120V.
Key Features:
✔ Part Number: QOB340EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 606486145671
✔ GTIN: 03606490000000
✔ Country of Origin: Mexico
✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
The Square D QOB340EPD is a 3-pole molded case circuit breaker rated for 40 amps and 120 volts. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker is designed for use in QO load centers and NQ panelboards and has an interrupting rating of 10kA at 120V.
Key Features:
✔ Part Number: QOB340EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 606486145671
✔ GTIN: 03606490000000
✔ Country of Origin: Mexico
✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
