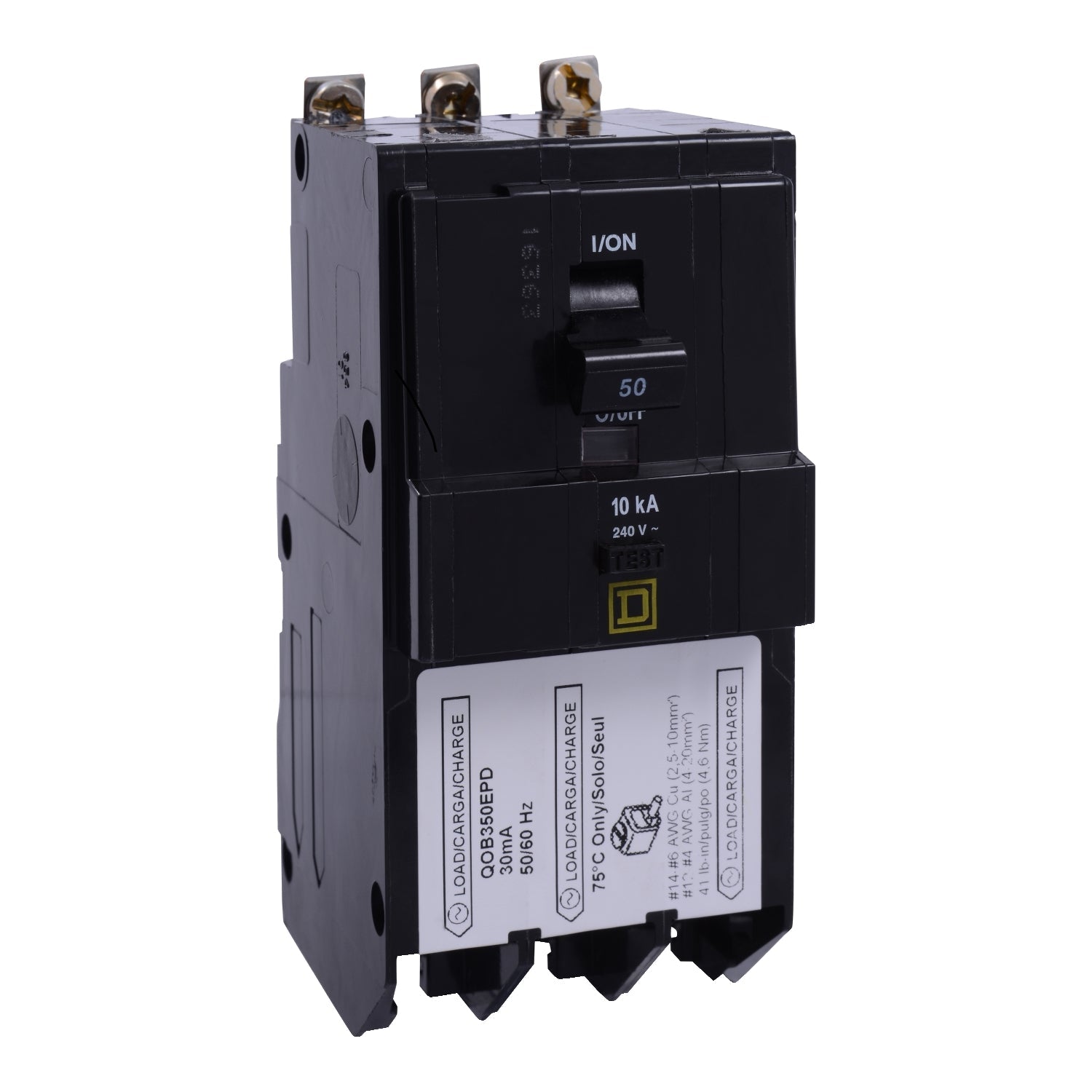

Square D QOB350EPD Circuit Breaker | 120V 50A 3P 10kA@120V Bolt-On QOB Series

Product Description:
The Square D QOB350EPD is a 3-pole molded case circuit breaker rated for 50 amps and 120 volts. It features thermal magnetic protection and a bolt-on connection for secure installation. This circuit breaker is designed for use in QO load centers and NQ panelboards. It has an interrupting rating of 10kA at 120V.

Key Features:
✔ Part Number: QOB350EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Ground Fault Equipment Protection
✔ Protection: Thermal Magnetic
✔ UPC: 785901956976
✔ GTIN: 00785901956976
✔ Country of Origin: Mexico
✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
