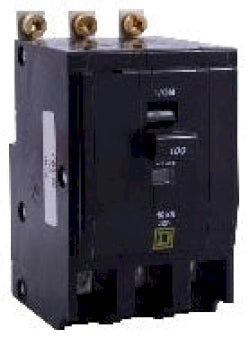

Square D QOB380VH Circuit Breaker | 240V 80A 3P 22kA@240V Bolt-on QOB Series

Product Description:
The Square D QOB380VH is a 3-pole molded case circuit breaker designed for 240V applications. It provides reliable circuit protection with an 80A current rating and a 22kA interrupting capacity. This thermal magnetic breaker features a bolt-on connection for secure installation and is part of the QOB Series family.

Key Features:
✔ Part Number: QOB380VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901054856
✔ GTIN: 00785901054856
✔ Country of Origin: Mexico
✔ Dimensions: 2.24 in x 3.5 in x 3.5 in
✔ Weight: 1
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 4 to 2/0 AWG Aluminum/Copper
