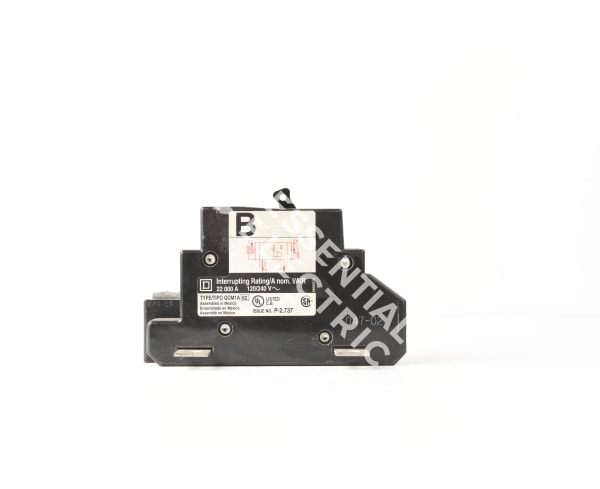

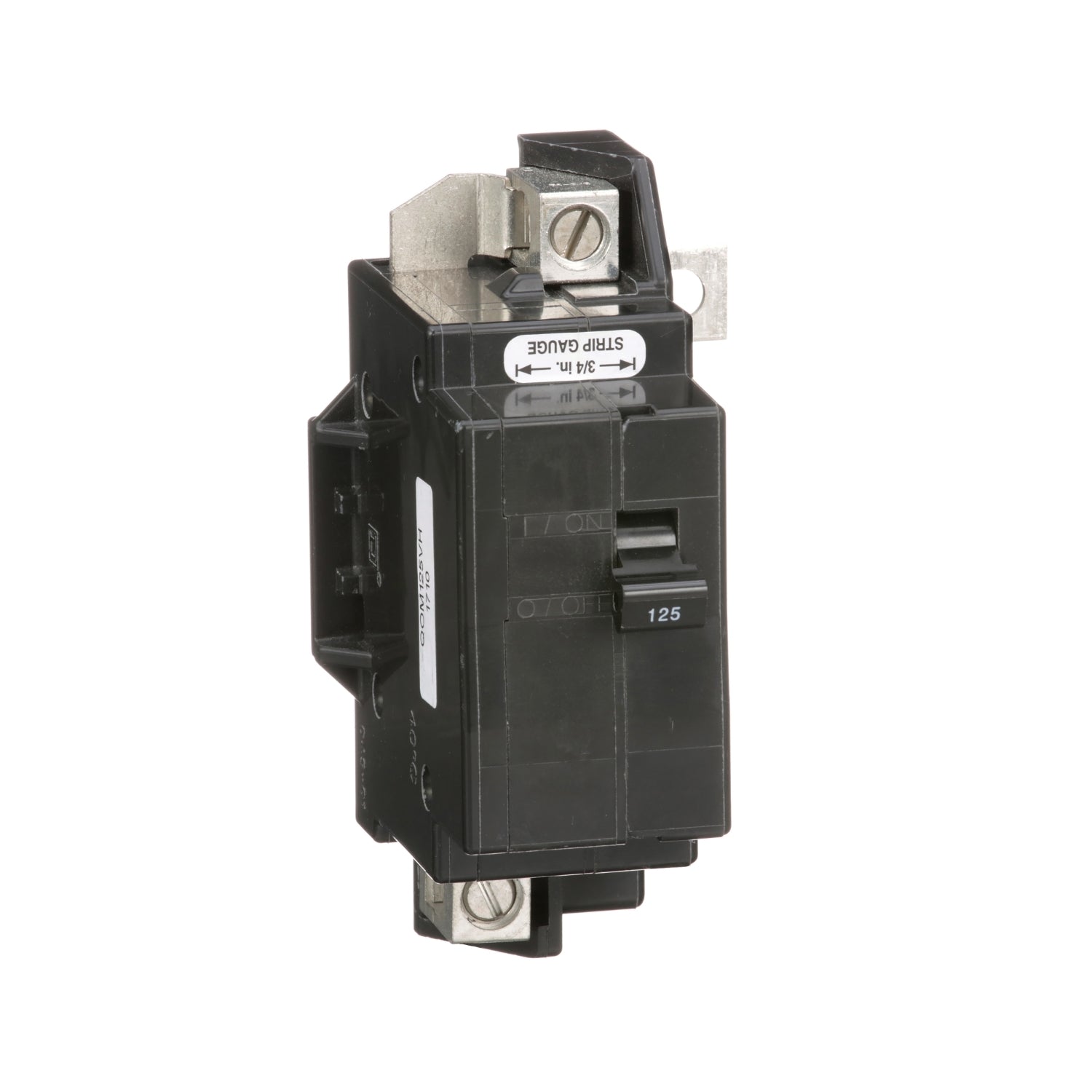

Square D QOM125VH Circuit Breaker | 125A 120/240V 2P 22kA@240V Bolt-on QOM Series

Product Description:
The Square D QOM125VH is a Molded Case Circuit Breaker from the QOM Series family. It is a 2-pole, 125 amp breaker rated for 120/240V with an AIC rating of 22kA@240V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: QOM125VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOM Series
✔ Type: QOM
✔ Voltage: 120/240
✔ Amperage: 125
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Main Breaker
✔ Protection: Thermal Magnetic
✔ UPC: 785901004042
✔ GTIN: 00785901004042
✔ Country of Origin: Mexico
✔ Dimensions: 3.47 in x 5.09 in x 5.08 in
✔ Weight: 1
✔ Panel Type: Homeline Load Center, QO Load Center
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
