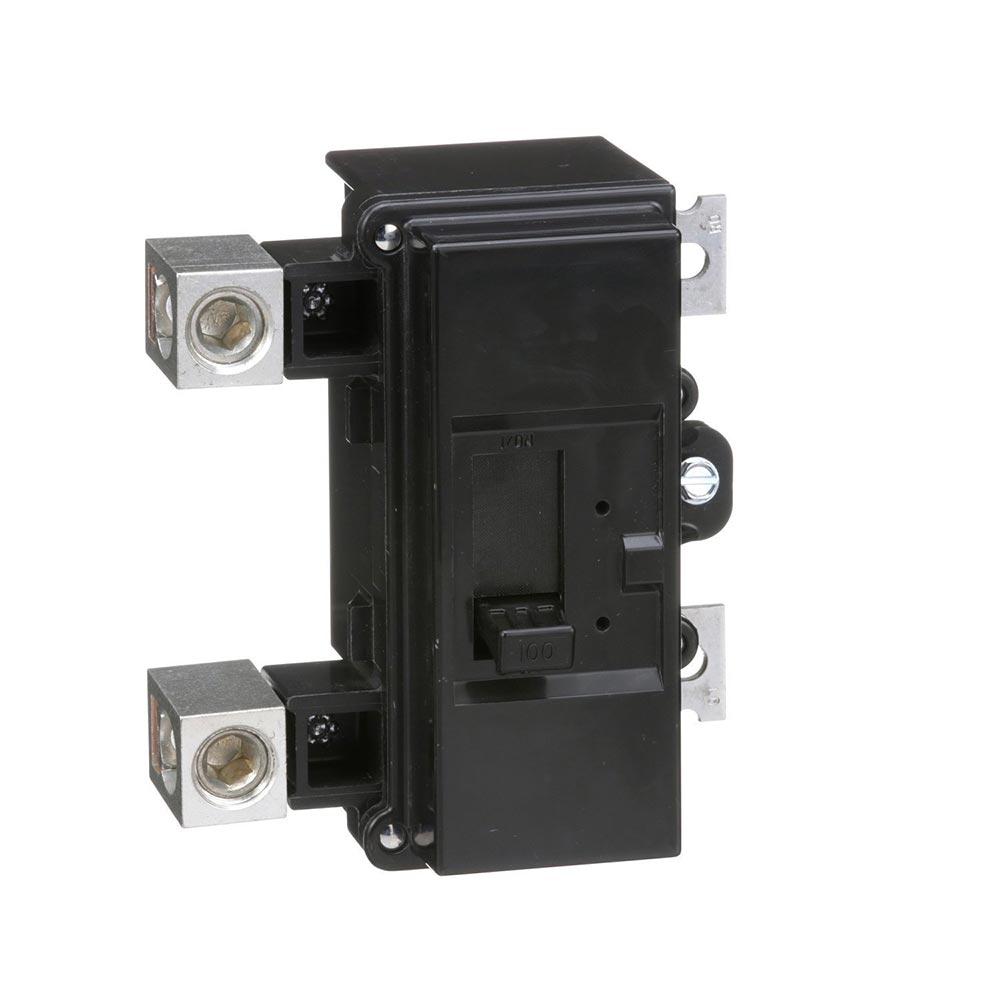

Square D QOM2100VH Circuit Breaker 120/240V 100A 2 Pole 22kA@240V Bolt-On QOM Series

Product Description:
The Square D QOM2100VH is a 2-pole molded case circuit breaker designed for 120/240V systems with a 100A rating. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker is part of the QOM Series and is suitable for use in Homeline and QO load centers. It meets UL and CSA standards for safety and reliability.

Key Features:
✔ Part Number: QOM2100VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOM Series
✔ Type: QOM
✔ Voltage: 120/240
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Main Breaker
✔ Protection: Thermal Magnetic
✔ UPC: 785901021957
✔ GTIN: 00785901021957
✔ Country of Origin: Mexico
✔ Dimensions: 3.6 in x 5.6 in x 5.59 in
✔ Weight: 1.21
✔ Panel Type: Homeline Load Center, QO Load Center
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 4 Awg To 300 Kcmil (Aluminum/Copper)
