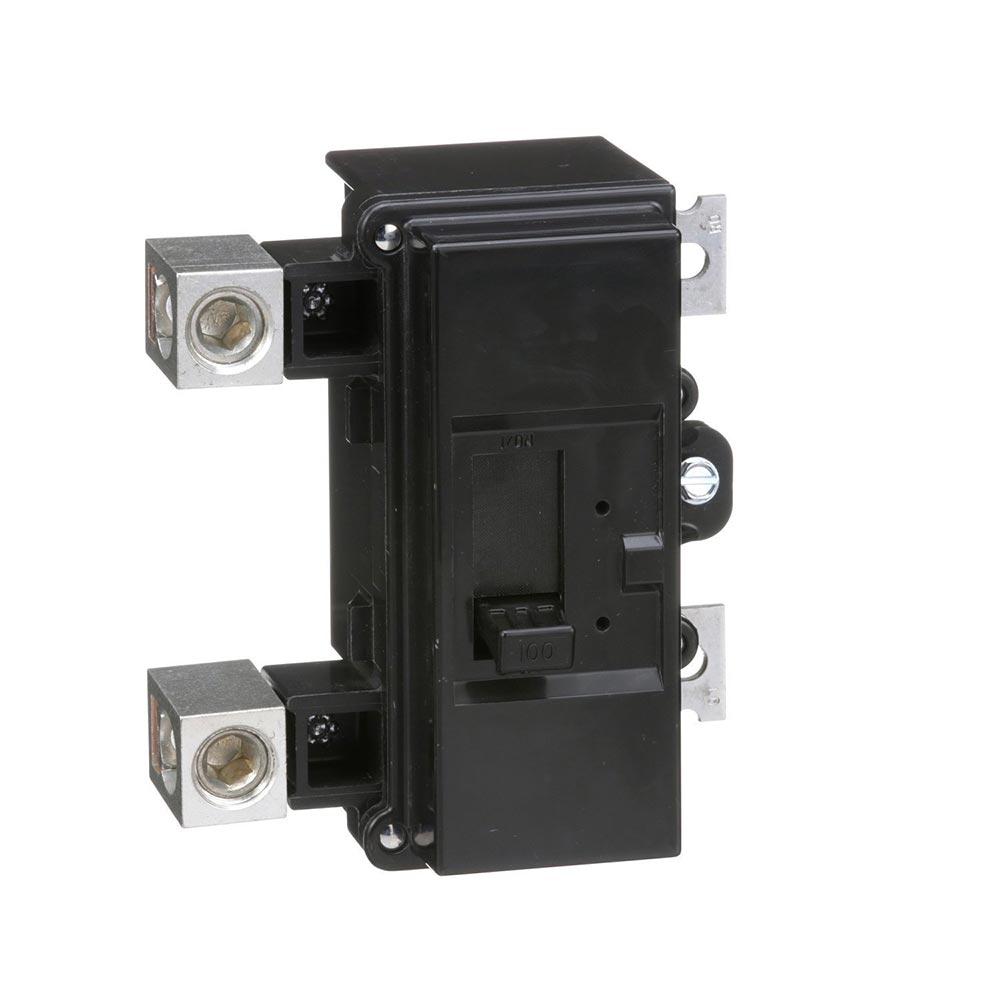

Square D QOM2200VH Circuit Breaker | 240V 200A 2P 22kA@240V Bolt-On QOM Series

Product Description:
The Square D QOM2200VH is a Molded Case Circuit Breaker from the QOM Series family. It is a 2-pole, 240 Volt, 200 amp rated breaker with an AIC rating of 22kA@240V. This circuit breaker uses a bolt-on connection and provides thermal magnetic protection for reliable performance.

Key Features:
✔ Part Number: QOM2200VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOM Series
✔ Type: QOM
✔ Voltage: 240
✔ Amperage: 200
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Main Breaker
✔ Protection: Thermal Magnetic
✔ UPC: 785901004066
✔ GTIN: 00785901004066
✔ Country of Origin: United States
✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.17
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed; CSA
