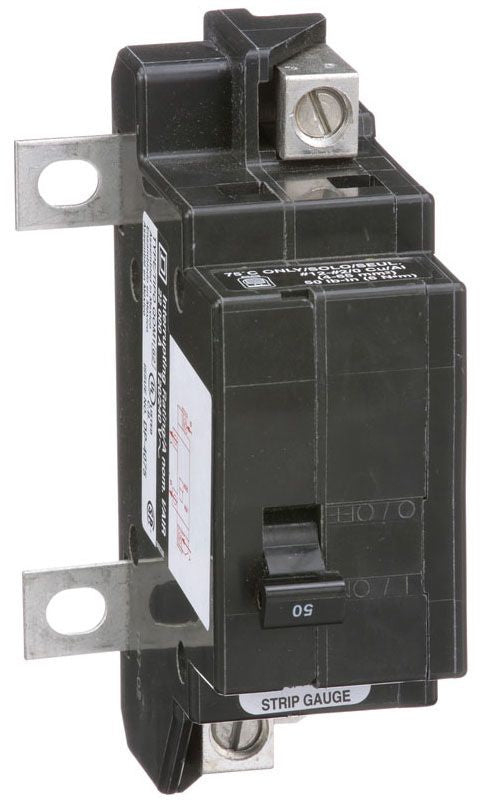

Square D QOM50VH Circuit Breaker | 240V 50A 2P 22kA@240V Bolt-On QOM Series

Product Description:
The Square D QOM50VH is a Molded Case Circuit Breaker from the QOM Series. It is a 2-pole, 50 amp breaker rated for 240 volts with an AIC rating of 22kA@240V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: QOM50VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOM Series
✔ Type: QOM
✔ Voltage: 240
✔ Amperage: 50
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901879596
✔ GTIN: 00785901879596
✔ Country of Origin: Mexico
✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Panel Type: QO Load Center, Homeline Load Center
✔ Standards: UL Listed, CSA
✔ Certification: UL Listed CSA Certified CE Marked
✔ Wire Size: #4 to #2/0 AWG(Al/Cu)
