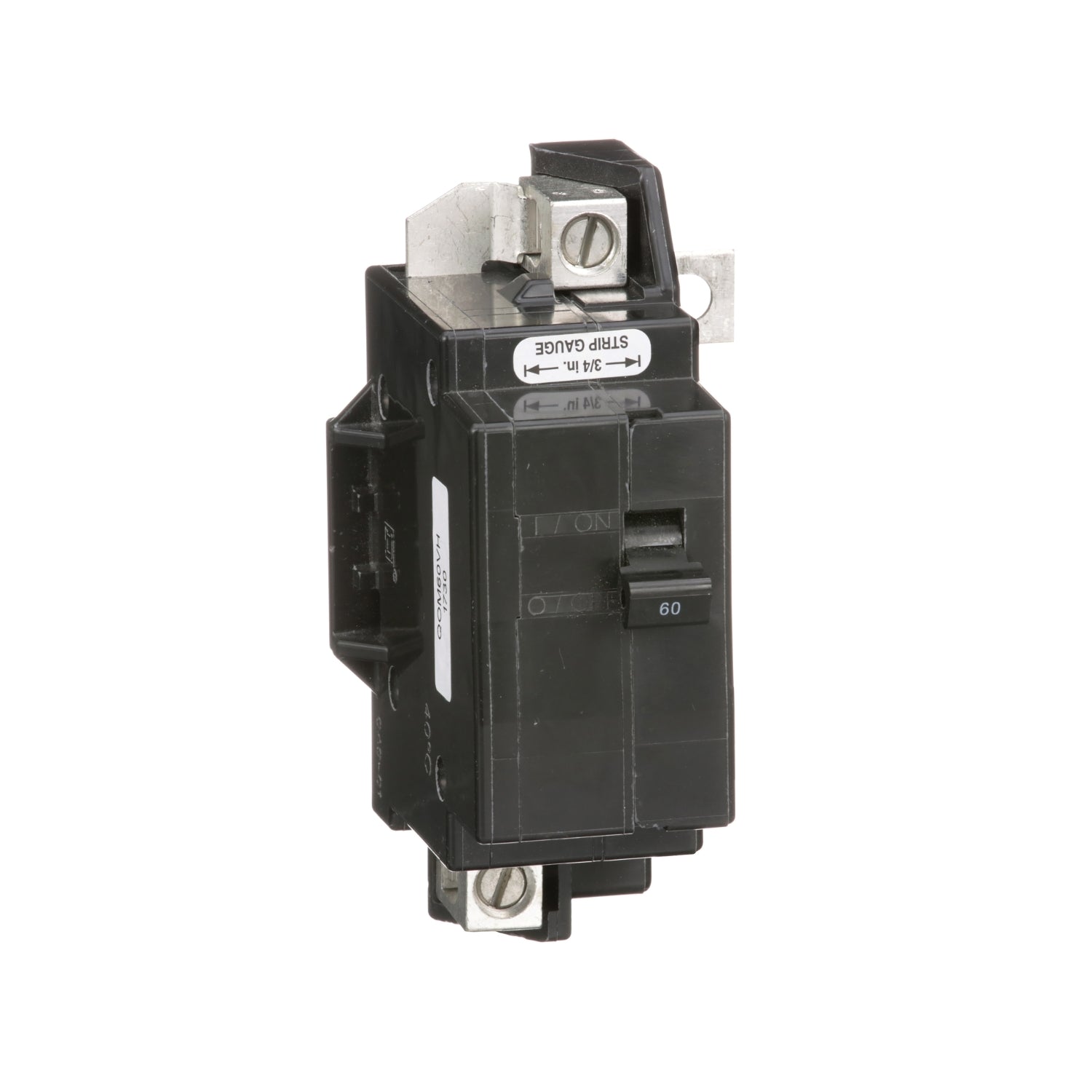

Square D QOM60VH Circuit Breaker | 240V 60A 2P 22kA@240V Bolt-On QOM Series

Product Description:
The Square D QOM60VH is a Molded Case Circuit Breaker from the QOM Series. It features a 2-pole design with a 240V, 60A rating and a 22kA@240V AIC rating. This bolt-on breaker includes thermal magnetic protection for reliable performance. It is compatible with QO Load Center and Homeline Load Center panels.

Key Features:
✔ Part Number: QOM60VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOM Series
✔ Type: QOM
✔ Voltage: 240
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: QOM1
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 2/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901879602
✔ GTIN: 00785901879602
✔ Country of Origin: Mexico
✔ Dimensions: 3.46 in x 5.08 in
✔ Weight: 1
✔ Panel Type: QO Load Center, Homeline Load Center
✔ Standards: CSA, UL E84967, UL Listed
✔ Certification: CSA, UL E84967, UL Listed
