Square D QOT1520 Circuit Breaker | 120/240V 20A 2P 10kA@120V Plug-In QO Series

Product Description:
The Square D QOT1520 is a Molded Case Circuit Breaker from the QO Series family. It is a 2-pole, 20 amp breaker rated for 120/240 volts with a 10kA AIC rating at 120V. This model uses a plug-in connection and provides thermal magnetic protection. It is designed for use in QO load centers and NQ panelboards.

Key Features:
✔ Part Number: QOT1520
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QOT
✔ Voltage: 120/240
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Tandem
✔ Protection: Thermal Magnetic
✔ UPC: 785901418047
✔ GTIN: 00785901418047
✔ Country of Origin: Mexico

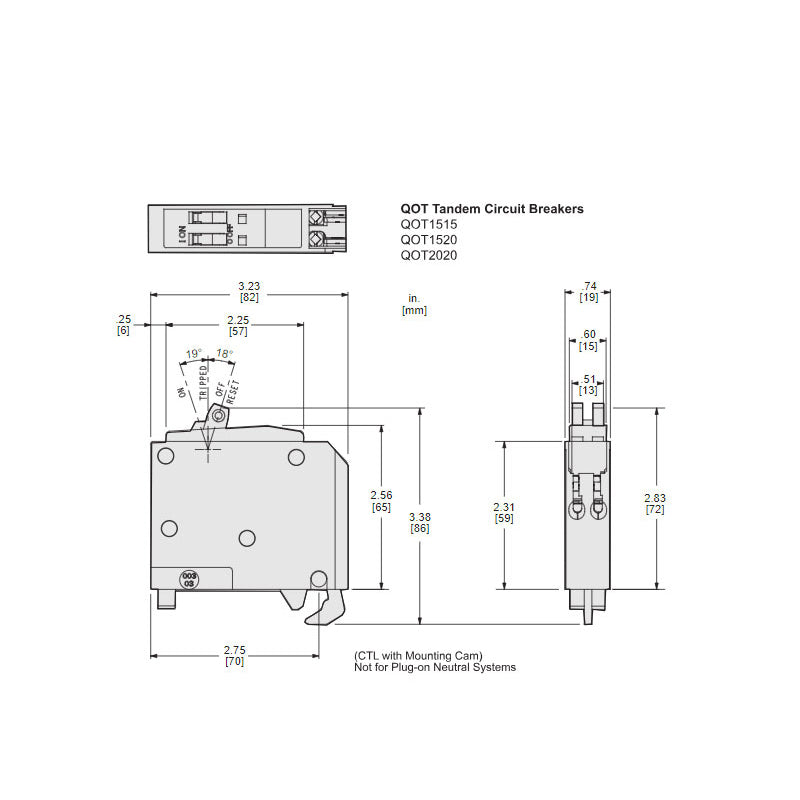

✔ Dimensions: 0.75 in x 3.22 in x 3.23 in
✔ Weight: 0.31
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 12 To 8 Awg (Aluminum) 14 To 8 Awg (Copper)
