Product Description:

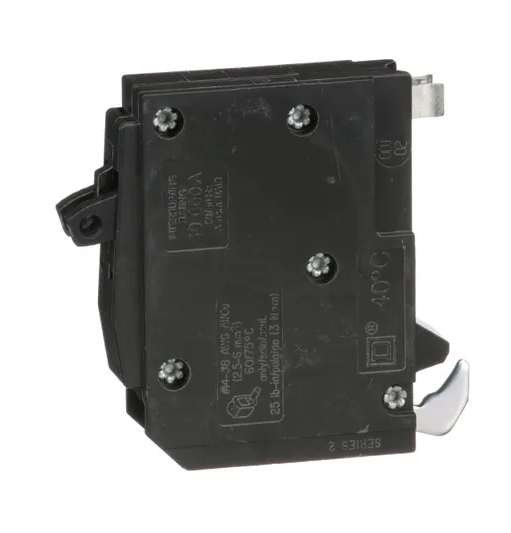

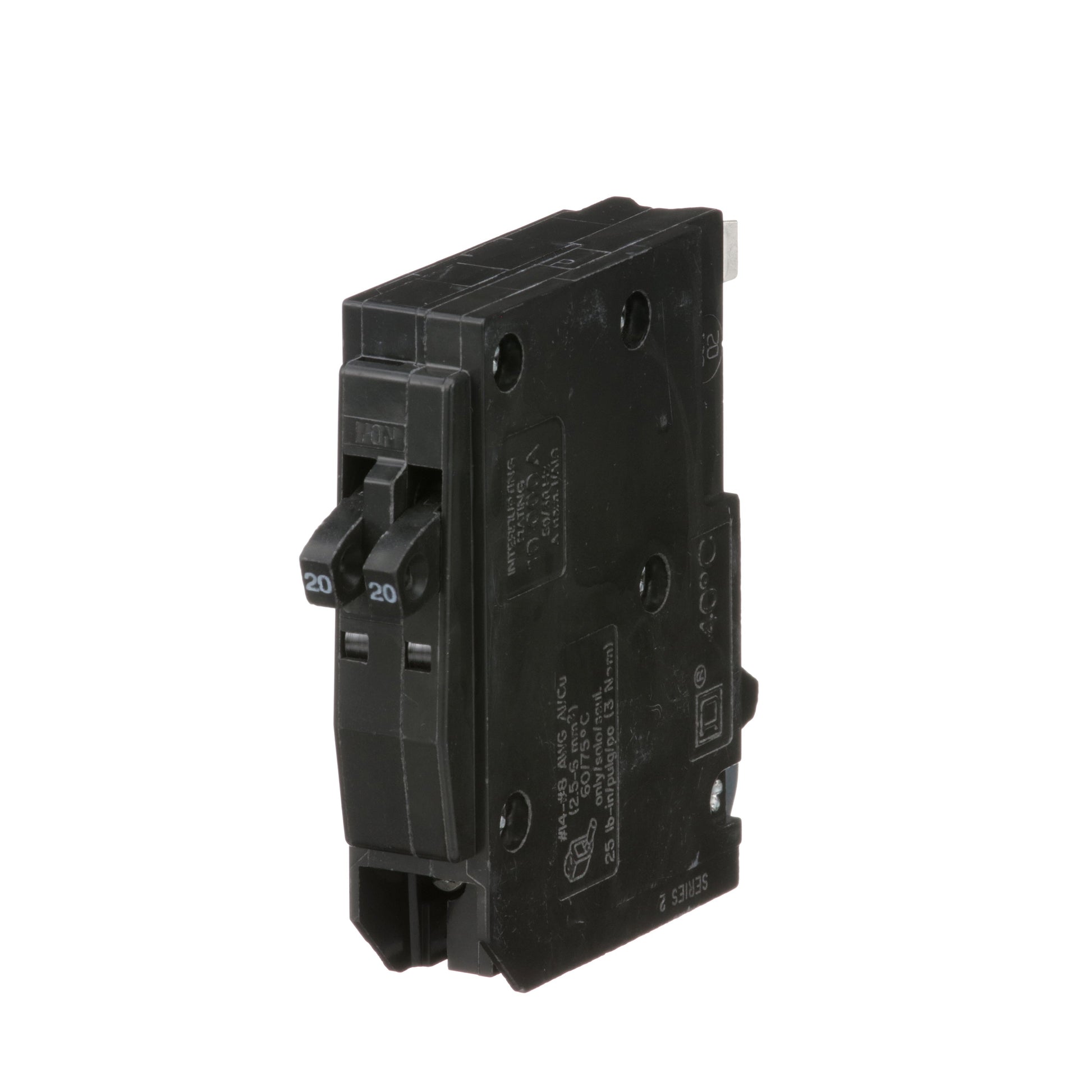

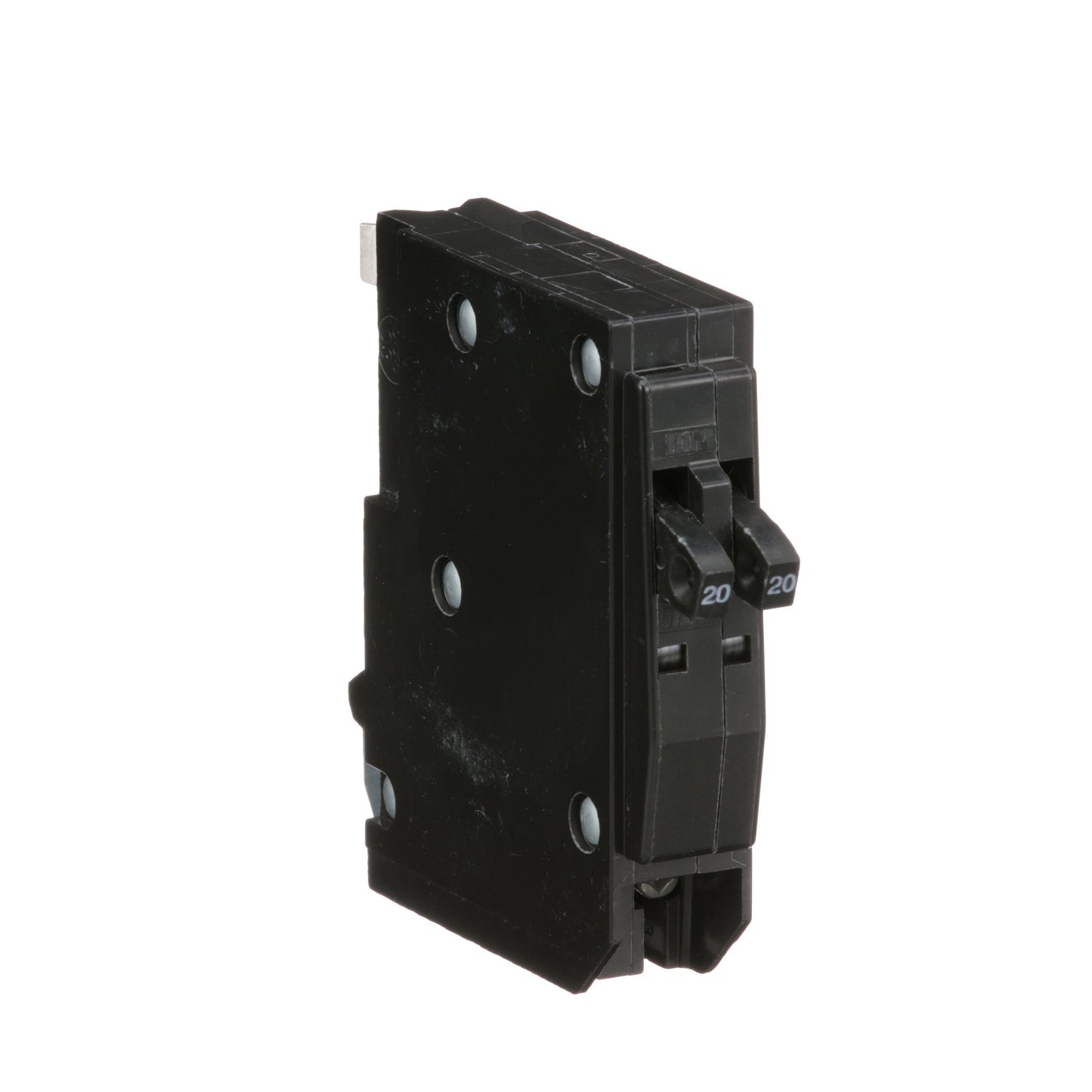

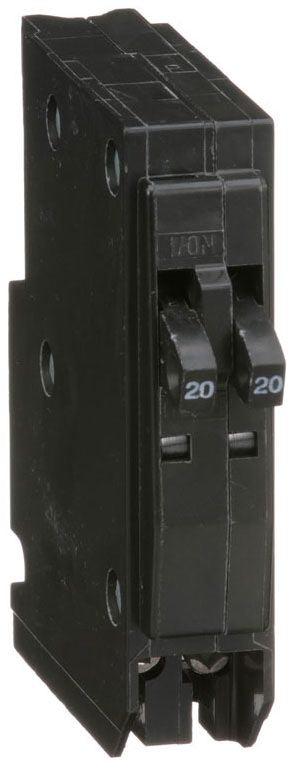

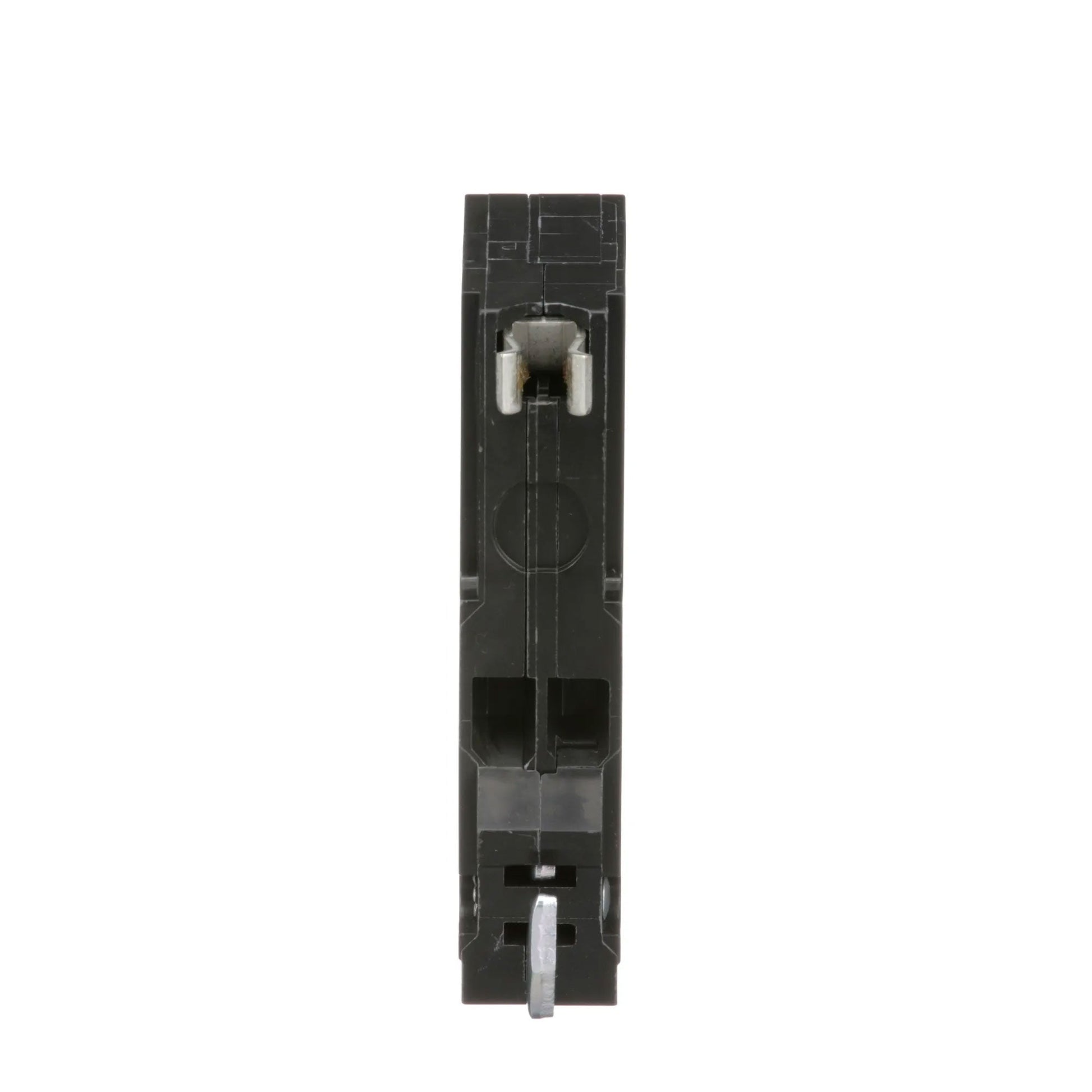

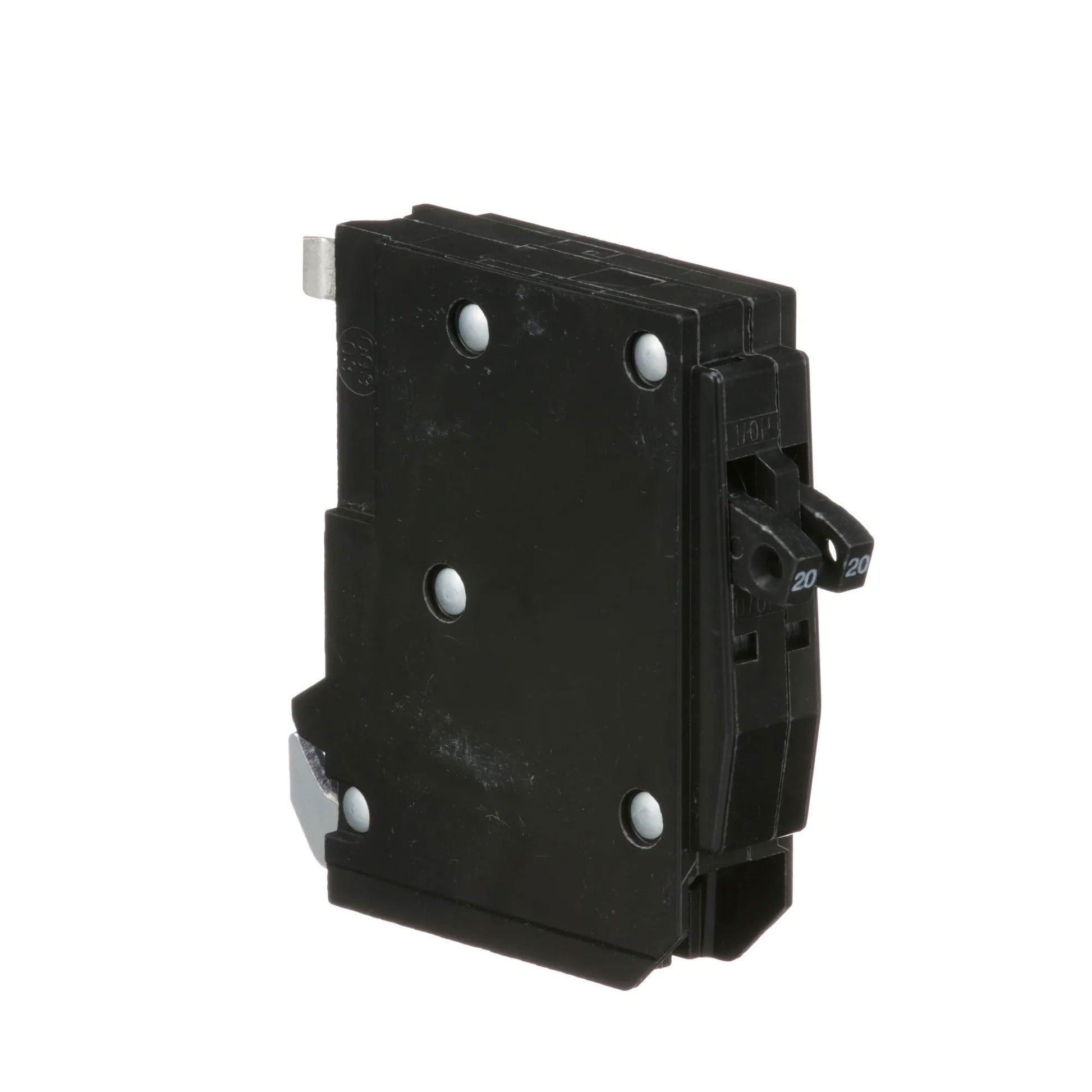

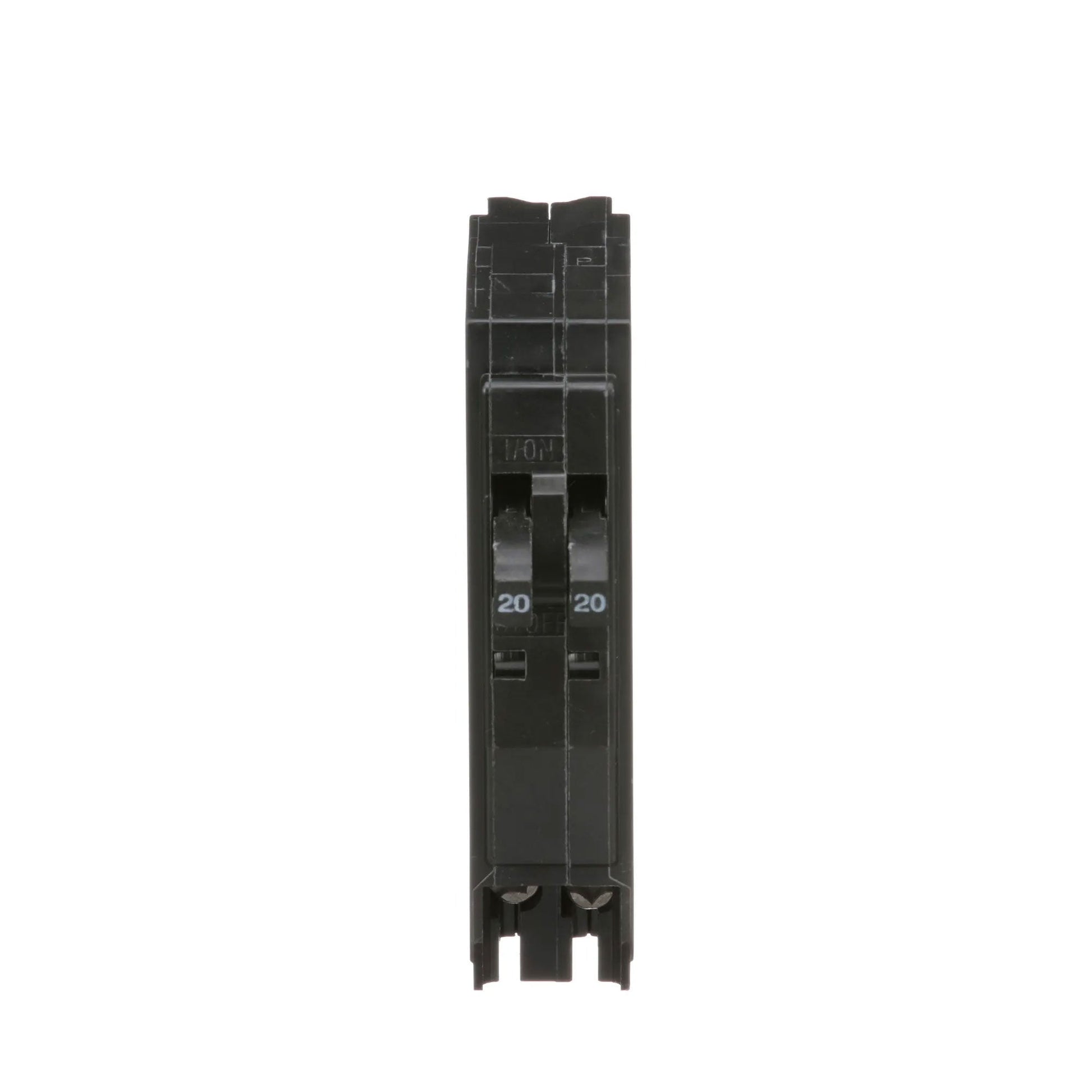

The Square D QOT2020 is a Molded Case Circuit Breaker from the QO Series family. It features a 2-pole design with 120/240 VAC voltage and a 20 amp rating. This breaker offers Thermal Magnetic protection and has an AIC rating of 10kA@120V. It uses a Plug-In connection and is compatible with QO Load Centers and NQ Panelboards.
Key Features:
✔ Part Number: QOT2020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QOT
✔ Voltage: 120/240 VAC
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Tandem
✔ Protection: Thermal Magnetic
✔ UPC: 785901418085
✔ GTIN: 00785901418085
✔ Country of Origin: Mexico

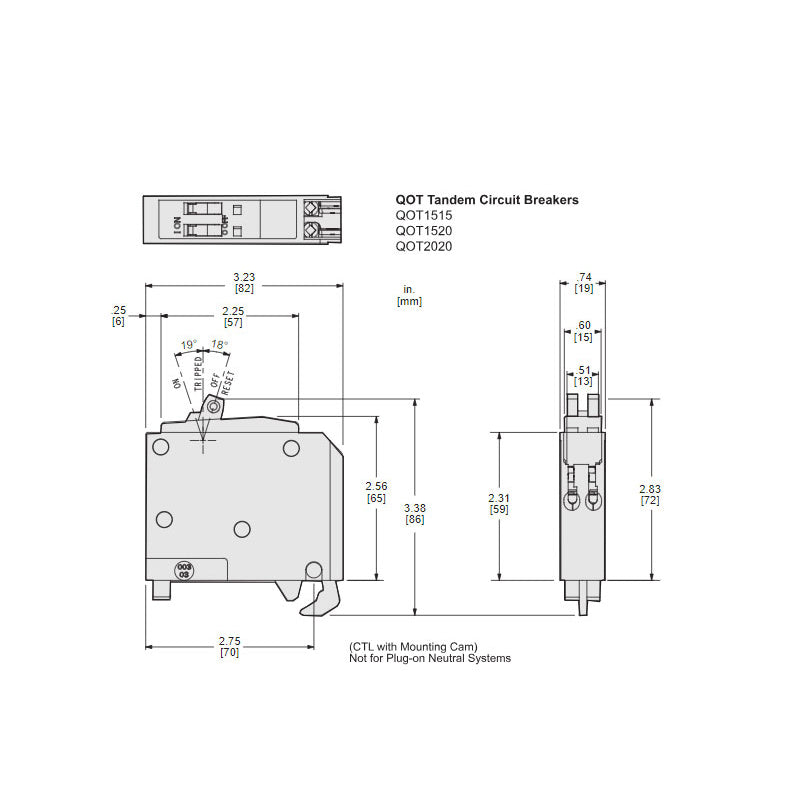

✔ Dimensions: 0.75 in x 3.22 in x 3.23 in
✔ Weight: 0.17 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 12 To 8 Awg (Aluminum) 14 To 8 Awg (Copper)
