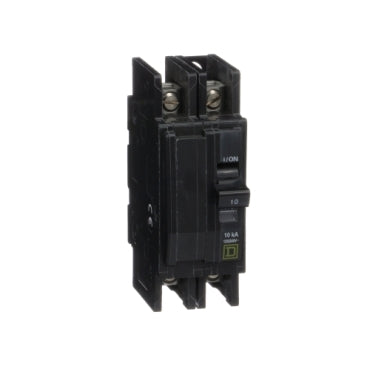

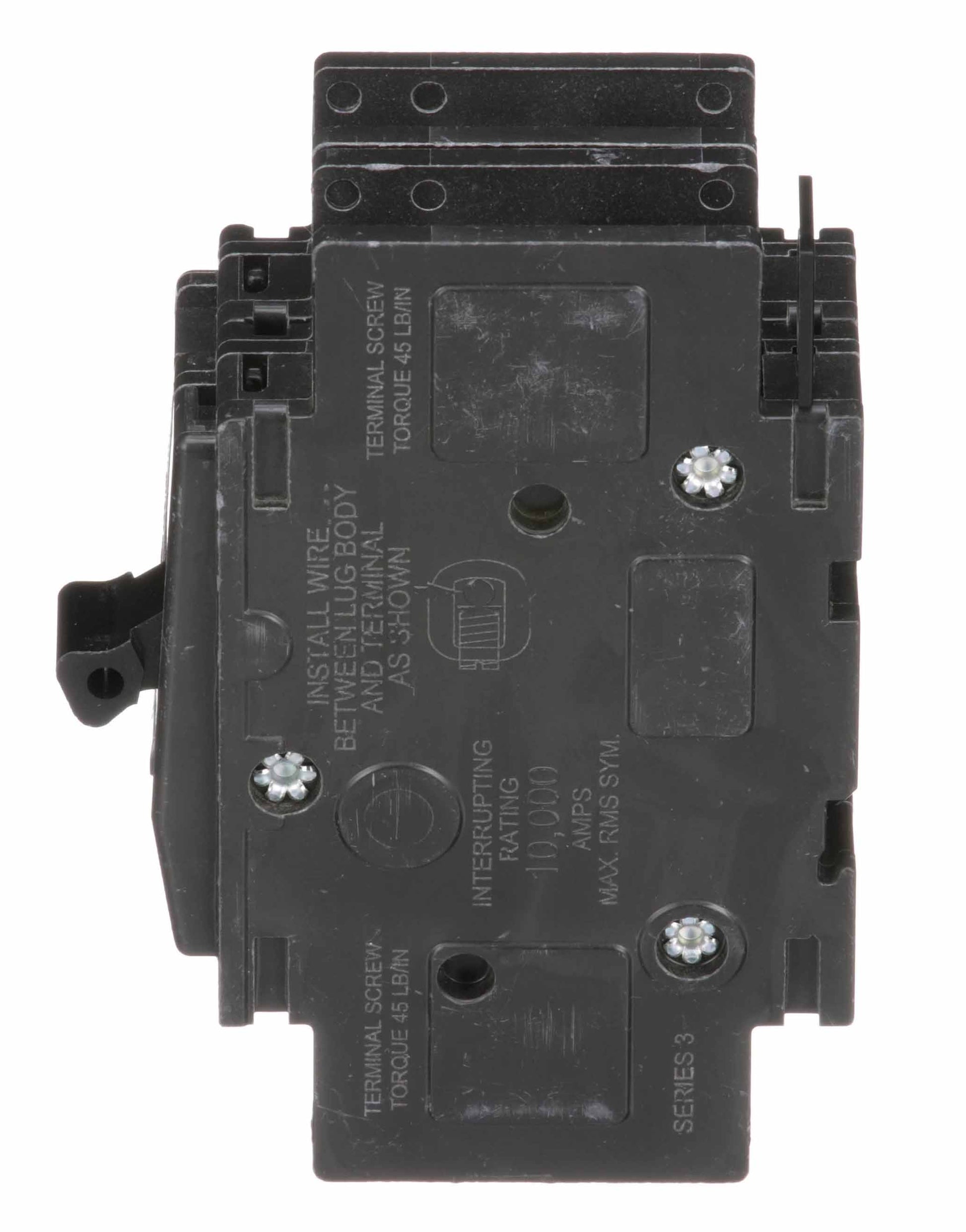

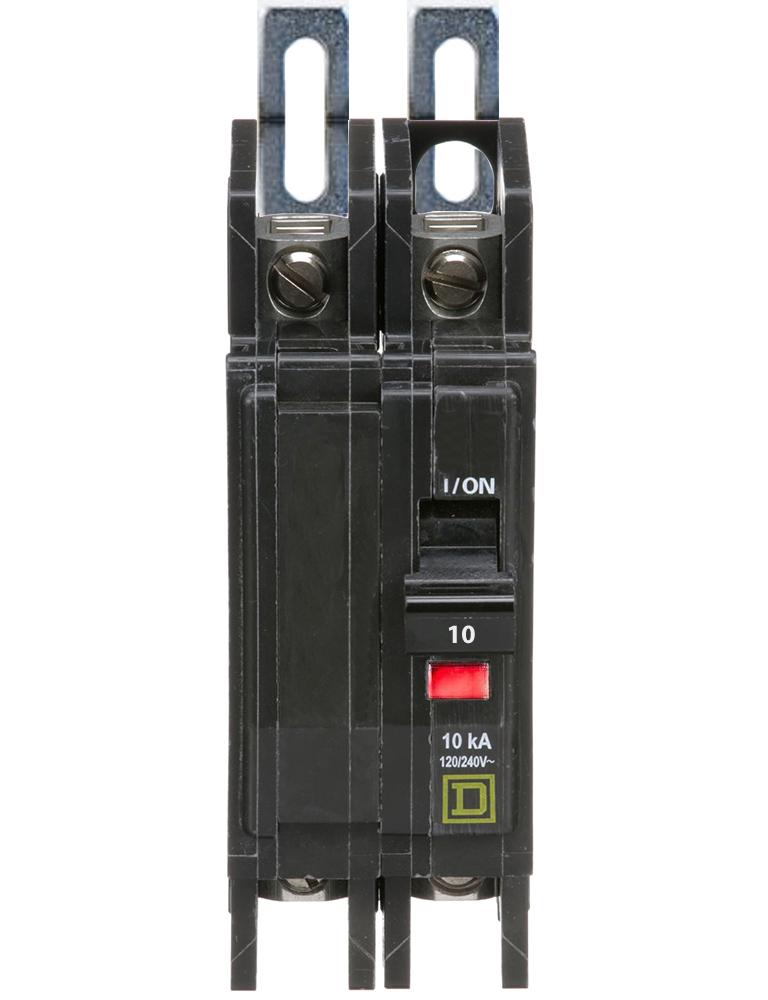

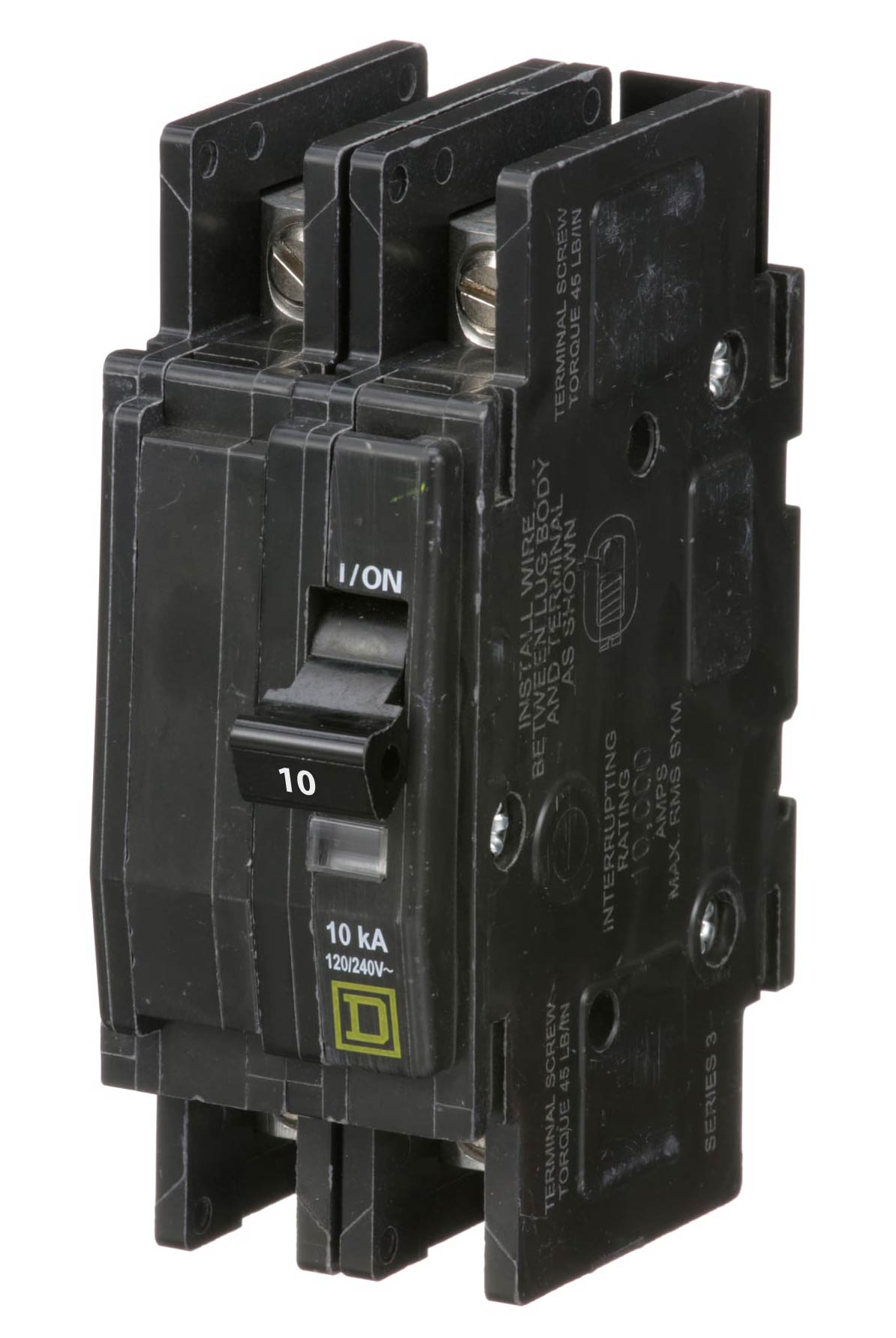

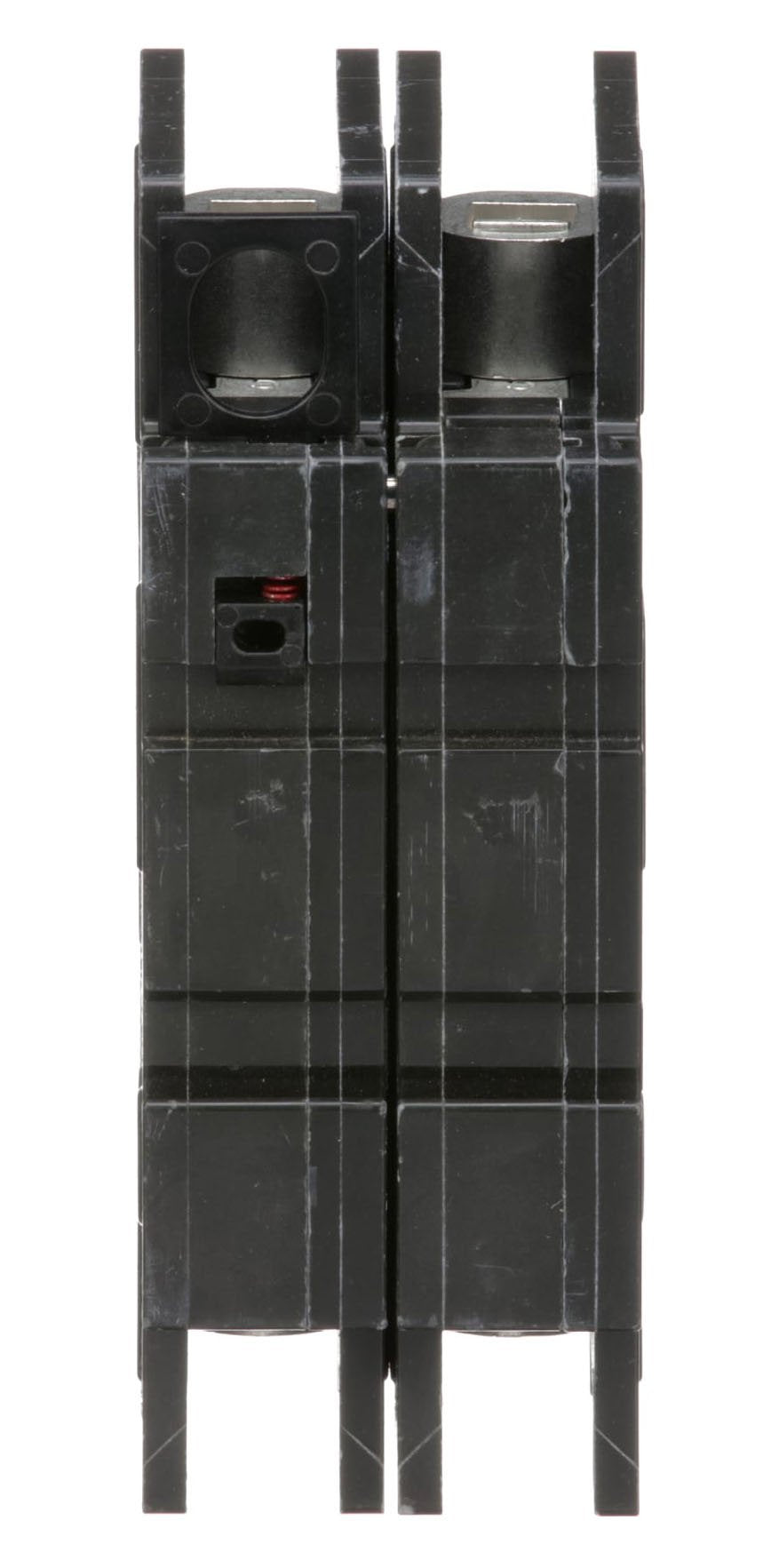

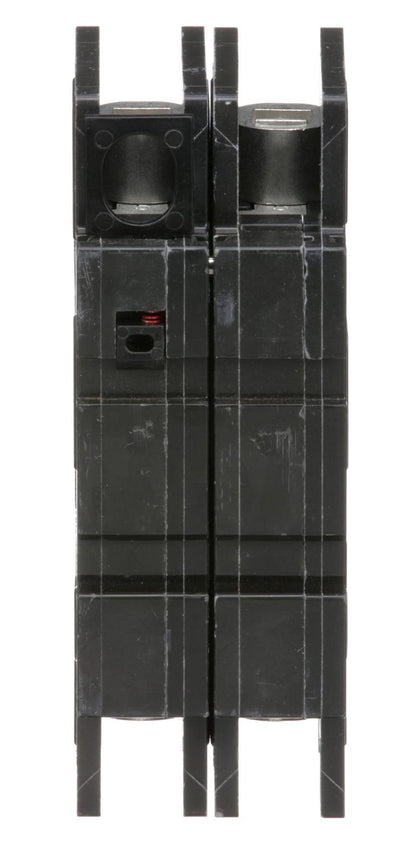

Square D QOU210 Circuit Breaker | 120/240V 10A 2P 10kA@240V Bolt-On QOU Series

Product Description:
The Square D QOU210 is a Molded Case Circuit Breaker from the QOU Series. It is a 2-pole, 10 amp breaker rated for 120/240V with a 10kA interrupting capacity at 240V. This thermal magnetic circuit breaker uses a bolt-on connection and is designed for reliable protection in electrical systems.

Key Features:
✔ Part Number: QOU210
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240
✔ Amperage: 10
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901477457
✔ GTIN: 00785901477457
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.45 in x 4.45 in
✔ Weight: 0.6
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
