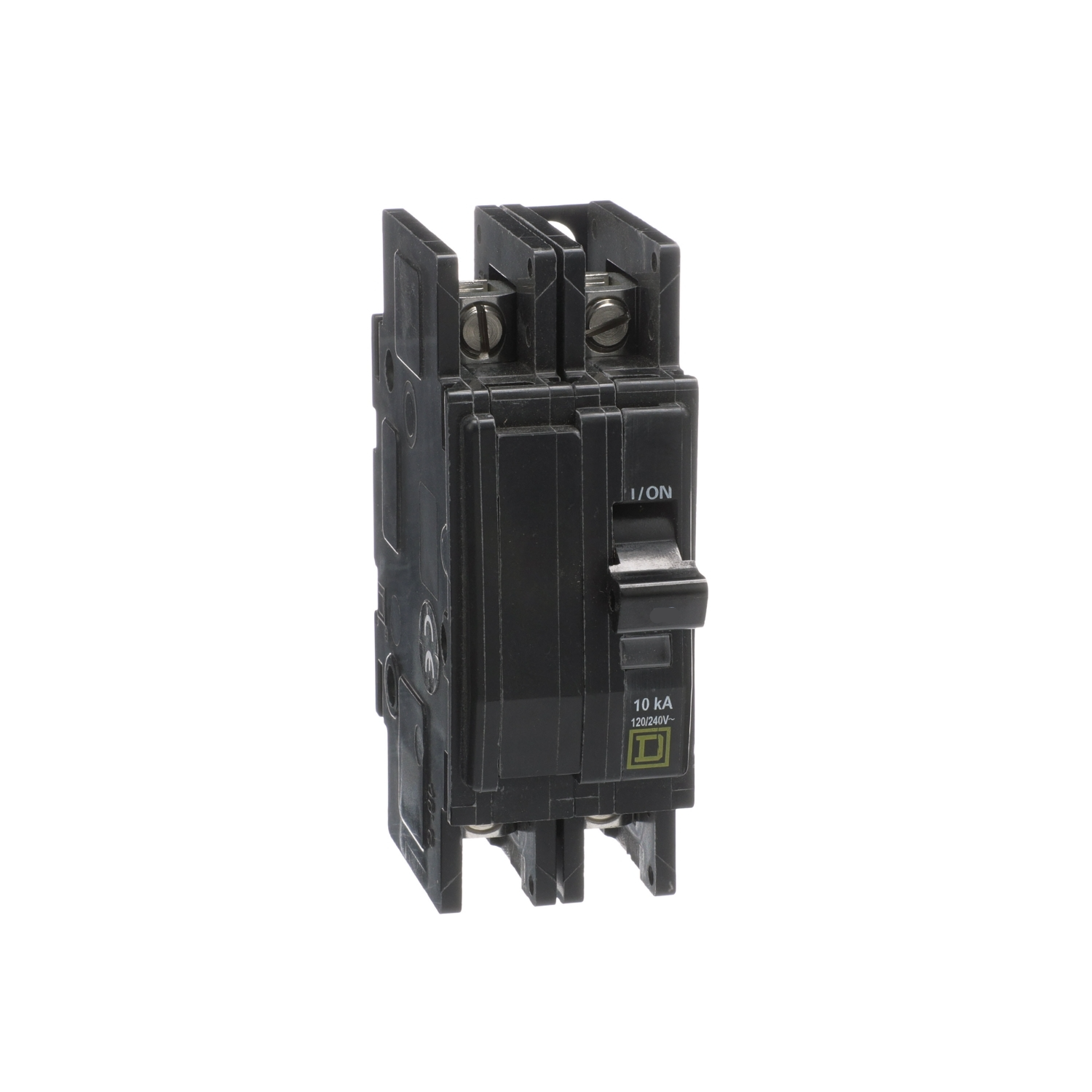

Square D QOU220VH Circuit Breaker | 120/240V 20A 2P 22kA@240V Bolt-On QOU Series

Product Description:
The Square D QOU220VH is a Molded Case Circuit Breaker from the QOU Series family. This 2-pole, 20-amp breaker is rated for 120/240V and offers a high interrupting capacity of 22kA at 240V. It features thermal magnetic protection and a bolt-on connection for secure installation. Suitable for various electrical panels, it meets industry standards including UL listing.

Key Features:
✔ Part Number: QOU220VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240
✔ Amperage: 20
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901679837
✔ GTIN: 00785901579830
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.05 in x 4.05 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
