Product Description:

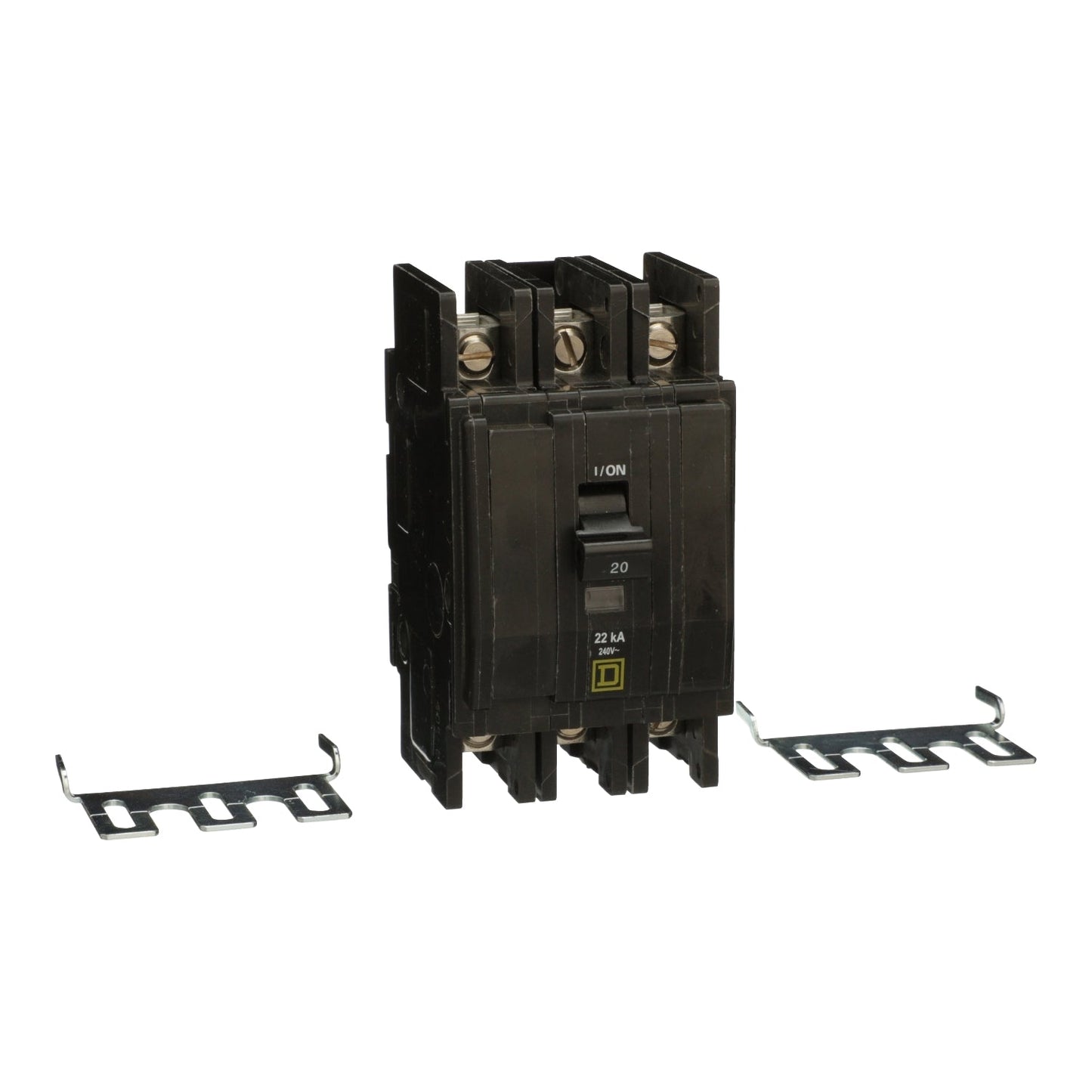

The Square D QOU320VH is a molded case circuit breaker designed for reliable electrical protection. It features a 3-pole configuration with a 240V voltage rating and 20A amperage capacity. This high interrupting capacity breaker offers thermal magnetic protection and is built to meet industry standards including UL and CSA.
Key Features:
✔ Part Number: QOU320VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 240
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901560012
✔ GTIN: 00785901560012
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 4.05 in x 4.05 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
