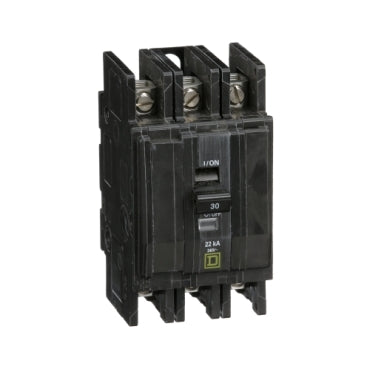

Square D QOU330VH Circuit Breaker | 240V 30A 3P 22kA@240V Bolt-On QOU Series

Product Description:
The Square D QOU330VH is a 3-pole molded case circuit breaker designed for 240V applications. It provides reliable circuit protection with a 30 amp rating and a 22kA interrupting capacity. This thermal magnetic breaker features a bolt-on connection and is suitable for various electrical panels.

Key Features:
✔ Part Number: QOU330VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901560067
✔ GTIN: 00785901560067
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 4.05 in x 4.05 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
