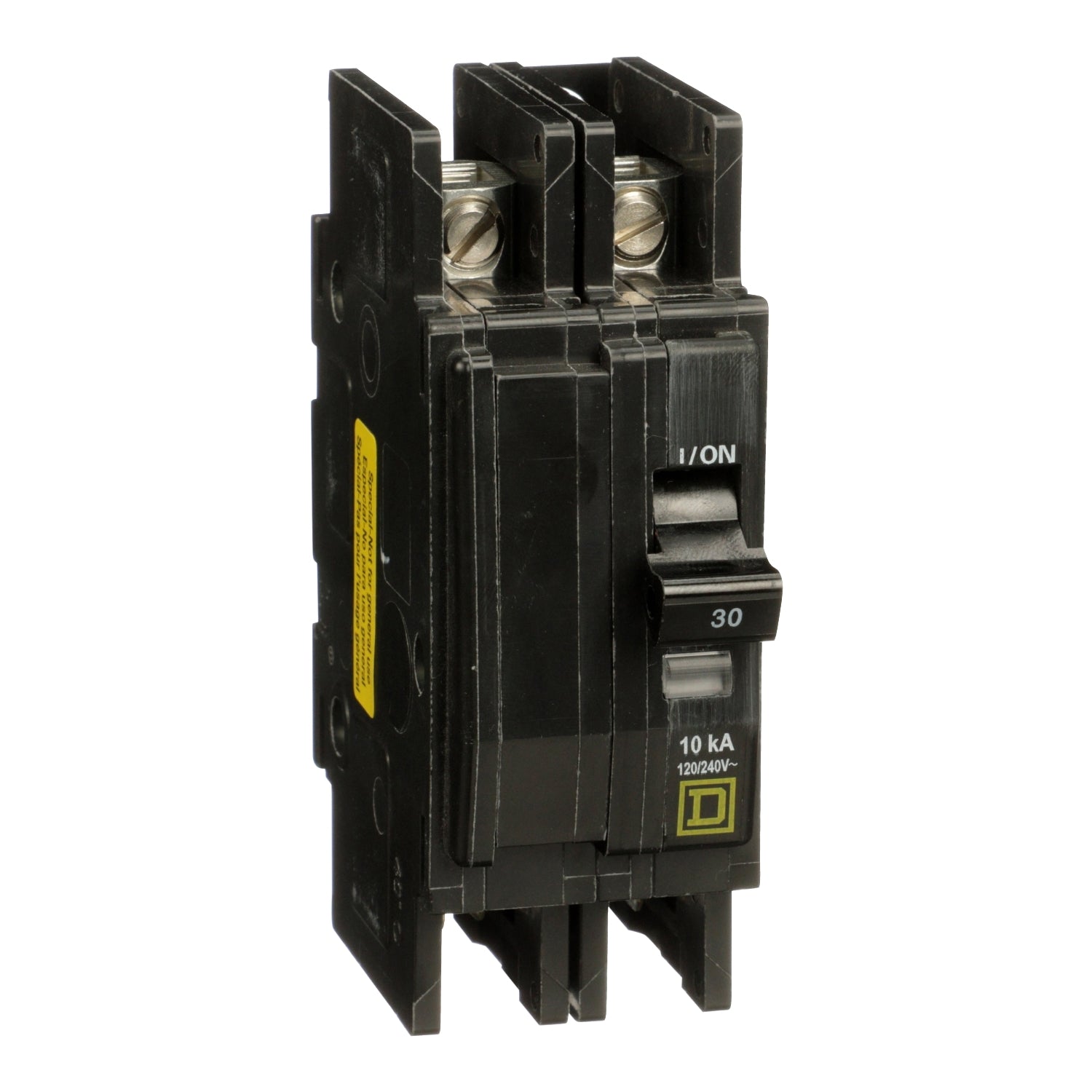

Square D QOUQ230 Circuit Breaker | 240V 30A 2P 10kA@240V Bolt-On QOU Series

Product Description:
The Square D QOUQ230 is a Molded Case Circuit Breaker from the QOU Series family. It is a 2-pole, 30 amp breaker rated for 240 volts with a 10kA interrupting capacity. This thermal magnetic circuit breaker uses a bolt-on connection and is suitable for standard electrical protection applications.

Key Features:
✔ Part Number: QOUQ230
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOUQ
✔ Voltage: 240
✔ Amperage: 30
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug
✔ Wire Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2 AWG (Cu/Al)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901760740
✔ GTIN: 00785901760740
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.05 in
✔ Weight: 0.75
✔ Standards: IEC, CSA, UL Listed
✔ Certification: IEC, CSA, UL Listed
