General Electric

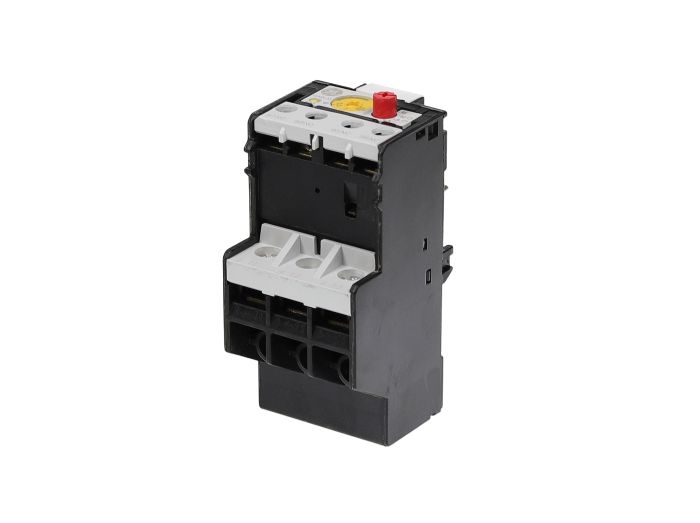

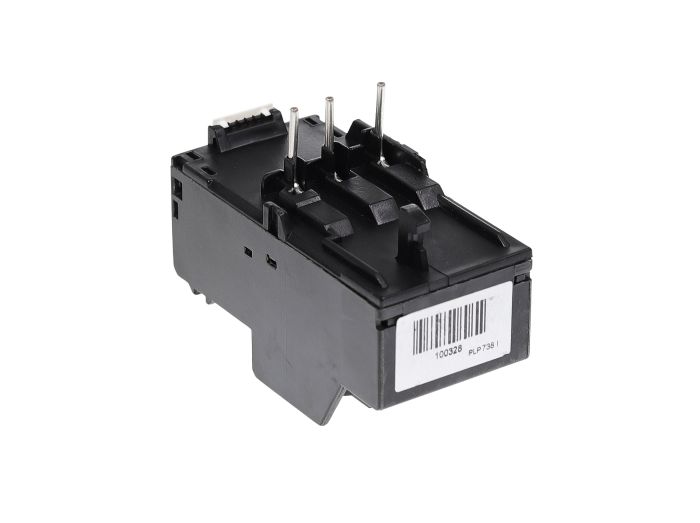

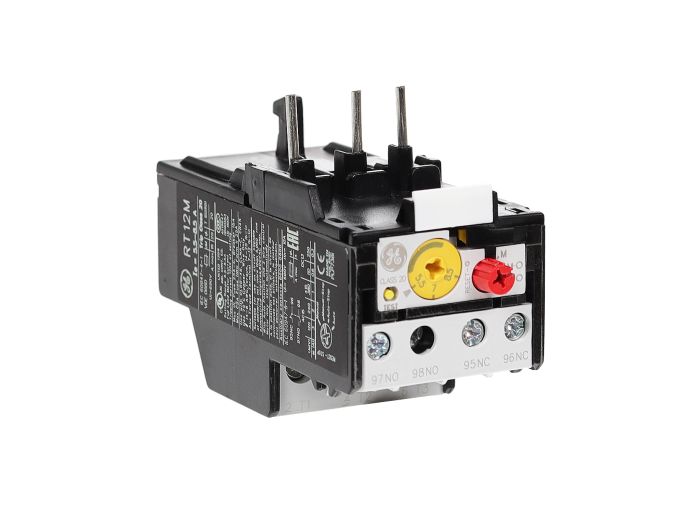

RT12M GE RT1 Thermal Overload Relay, 5.5-8.5A, Class 20
RT12M GE RT1 Thermal Overload Relay, 5.5-8.5A, Class 20
Couldn't load pickup availability
ABB / GE Branding Notice
On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions. Because of this transition, some products may be labeled as either ABB or GE depending on the manufacturing date and production batch.
Customers may receive products with:
- ABB branding
- GE branding
- Packaging reflecting either brand
Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.
Please contact our support team before ordering if you have questions about labeling, compatibility, or product identification.
RT12M GE RT1 Thermal Overload Relay, 5.5-8.5A, Class 20
Use GE RT12M when the starter calls for the RT1 direct-mount overload in the 5.5-8.5 A band. This Class 20 relay has three poles, screw terminals, and a manual/auto reset arrangement that can be used with or without the stop feature.
Before setting the dial, verify the motor nameplate and the contactor frame. GE lists RT12M for CL00, CL01, CL02, CL25, CL04, and CL45 units, and the catalog cautions installers not to exceed the contactor current rating.
Common Applications
- Starter maintenance where the specified overload catalog number is RT12M
- Direct attachment to the supported CL-series contactor frames
- Panel layouts that add the manufacturer-specified RTXP mounting base
Key Features
- Dial range: Adjusts across 5.5-8.5 A.
- Class 20 curve: Distinguishes RT12M from nearby Class 10 RT1 models.
- Field reset choice: Select manual or automatic reset.
- Control contacts: Includes 1NO and 1NC auxiliary contacts.
- Wiring method: Screw-terminal connections on a three-pole relay.
Specifications
- Current range: 5.5-8.5 A
- Trip class: Class 20
- Reset type: Manual/Auto with or without stop
- Poles: 3
- Auxiliary contacts: 1NO and 1NC
- Terminals: Screw
- Ambient range: -25 to 60 deg C
- Contactor frames: CL00, CL01, CL02, CL25, CL04, CL45
- Panel base: RTXP
- Maximum fuse rating in selection table: 25 A
- Maximum breaker rating in selection table: 15 A
Product Identification
- Part number: RT12M
- Manufacturer marking: General Electric legacy product
- Catalog owner: ABB
- Series: RT
FAQ
What amp setting does RT12M cover?
The adjustment window runs from 5.5 A through 8.5 A, so confirm the motor full-load current before setup.
Is this the Class 10 version?
No. RT12M is the Class 20 catalog number; RT1M is the nearby Class 10 manual/auto model and is not interchangeable by part number.
What hardware is required for panel mounting?
GE directs panel installations to use an RTXP base adapter instead of treating the direct-mount relay as a standalone panel device.
Does RT12M have auxiliary contacts?
Yes. Exact distributor records agree on one normally open contact and one normally closed contact.
