Product Description:

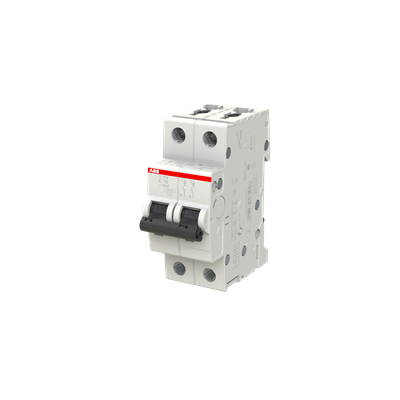

The ABB S202-C16 is a Molded Case Circuit Breaker from the S 200 Series family. It features 2 poles, 480V voltage, and a 16 amp rating with a 6kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: S202-C16
✔ Manufacturer: ABB
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: S 200 Series
✔ Type: S202-C
✔ Voltage: 480
✔ Amperage: 16
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 6kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 01677946590
✔ GTIN: 04016779465908
✔ Dimensions: Depth / Length 69 mm X Height 88 mm X Width 35 mm
✔ Weight: 0.25
✔ Certification: EN IEC UL
