Product Description:

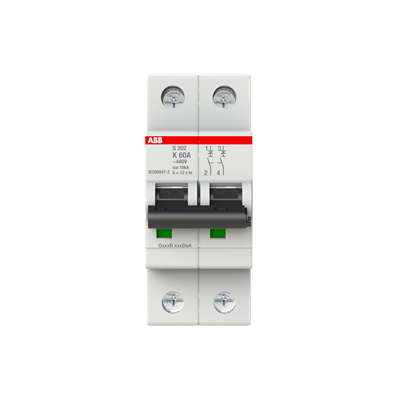

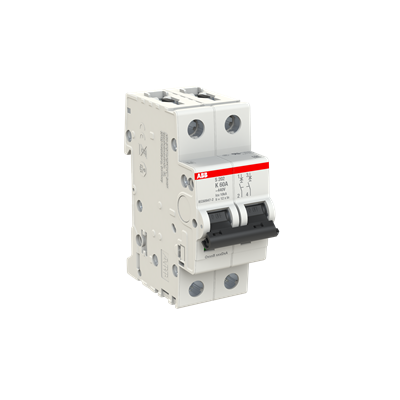

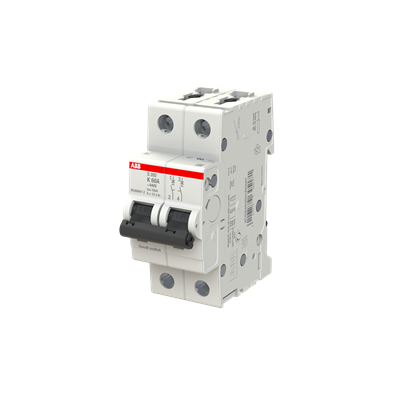

The ABB S202-K60 is a 2-pole Molded Case Circuit Breaker from the S 200 Series. It features a 60A current rating, 480V voltage, and a 6kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection. It is designed for reliable performance in electrical systems.
Key Features:
✔ Part Number: S202-K60
✔ Manufacturer: ABB
✔ Subcategory: Molded Case
✔ Family: S 200 Series
✔ Type: S202-K
✔ Voltage: 480V
✔ Amperage: 60A
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 6kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Dimensions: 69mm x 88mm x 35mm
✔ Weight: 0.55kg
✔ Certification: EN IEC UL
