Product Description:

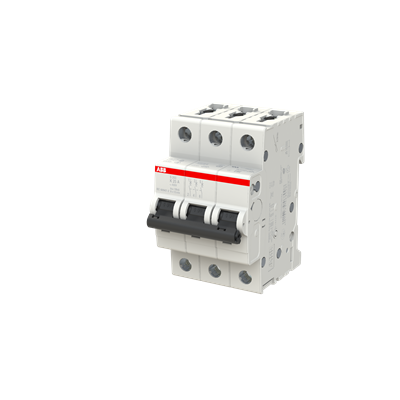

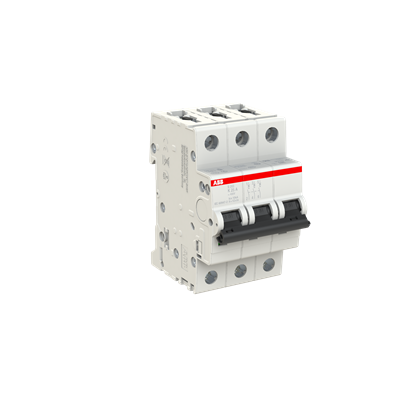

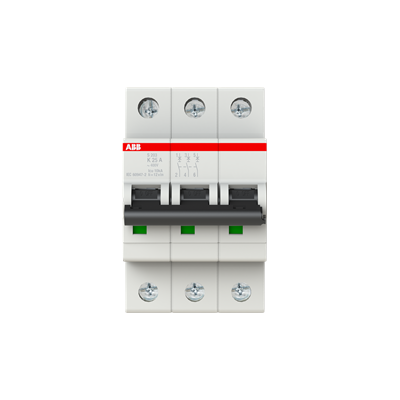

The ABB S203-K25 is a Molded Case Circuit Breaker from the S 200 Series family. It features a 3-pole design with a 480V voltage rating and 25A amperage capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 6kA@480V. It uses a Feed-Thru connection for easy installation.
Key Features:
✔ Part Number: S203-K25
✔ Manufacturer: ABB
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: S 200 Series
✔ Type: S203-K
✔ Voltage: 480
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 6kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ UPC: 01677950756
✔ GTIN: 04016779507561
✔ Dimensions: Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
✔ Weight: 1.43
✔ Certification: EN IEC UL
