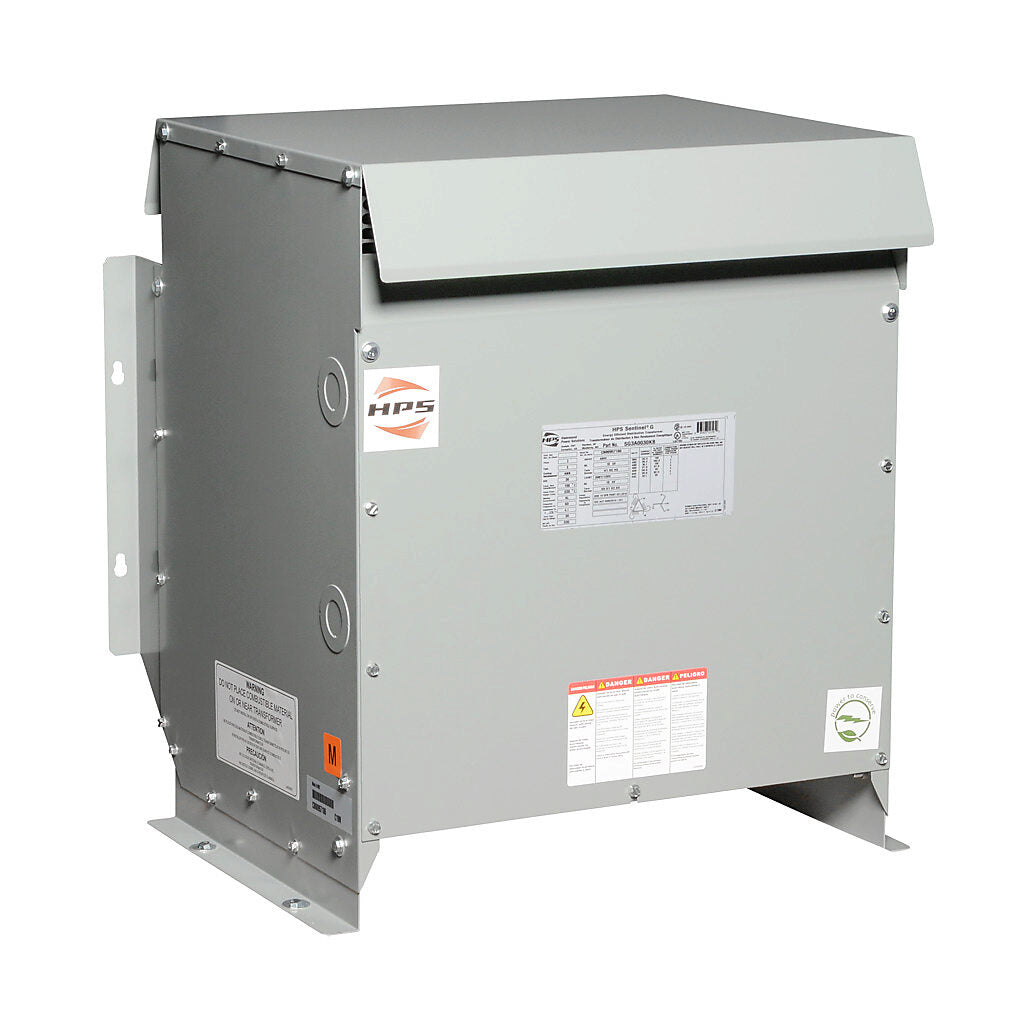

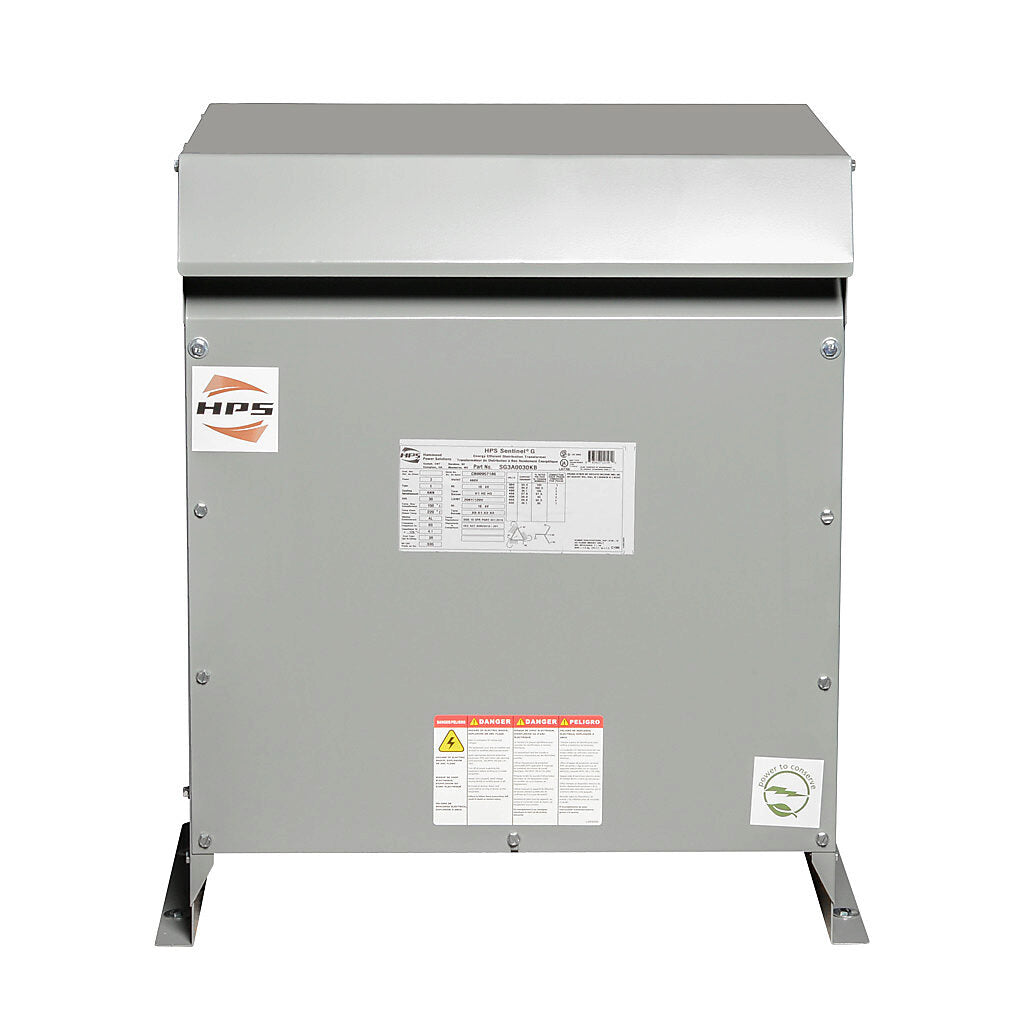

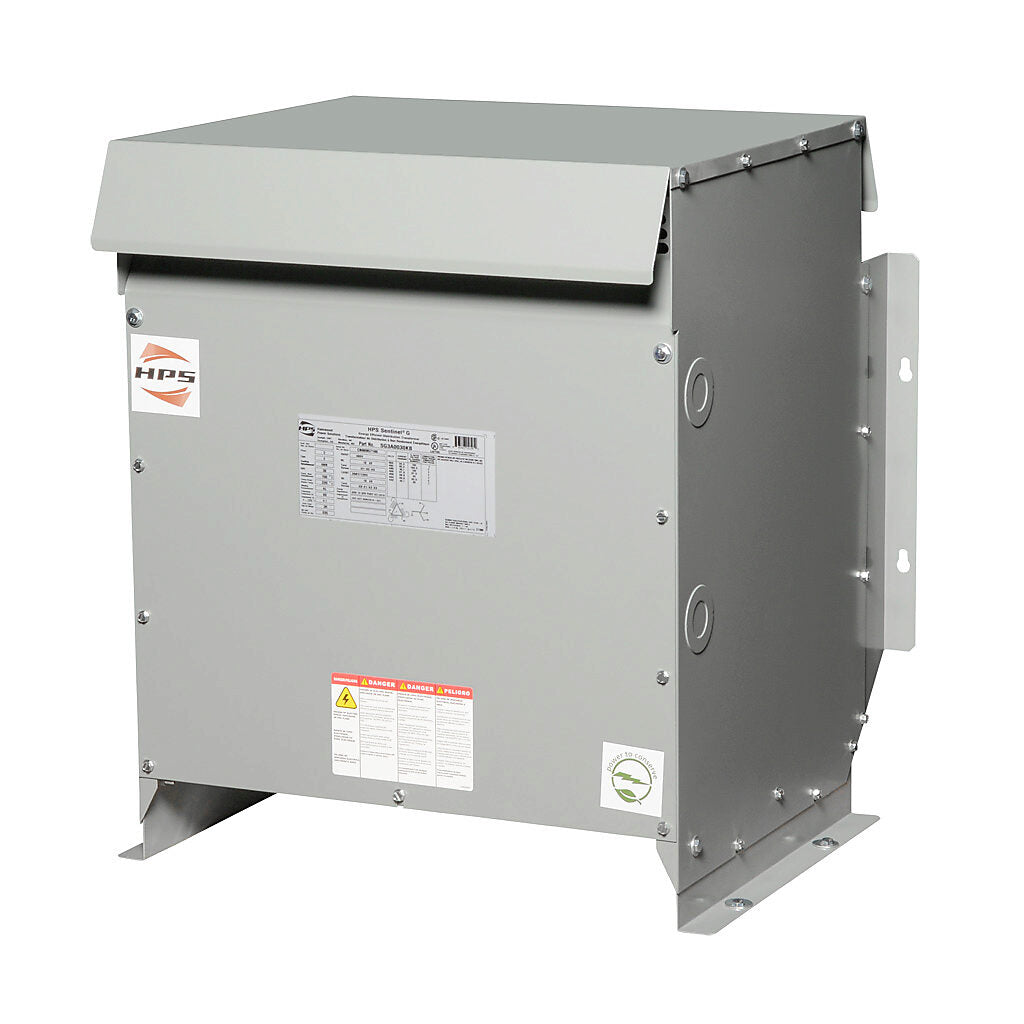

Hammond Power Solutions SG3A0030KB Transformer 30kVA 480D-208Y/120V
Hammond Power Solutions SG3A0030KB Transformer 30kVA 480D-208Y/120V
Price:
Sale
Sold out
Regular price
$2,792.96 USD
Regular price
$3,425.00 USD
Sale price
$2,792.96 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
This three-phase general duty transformer is designed for industrial power distribution, converting 480V delta primary voltage to 208Y/120V secondary. It is constructed with aluminum windings and features a Type 3R/IP24 enclosure with ANSI 61 grey finish. The unit meets DOE 2016, NRCAN 2019, and NMX 2021 efficiency regulations and complies with OSHPD and IBC 2018 seismic requirements. Typical applications include commercial buildings and industrial facilities requiring reliable power conversion.
Key Features:

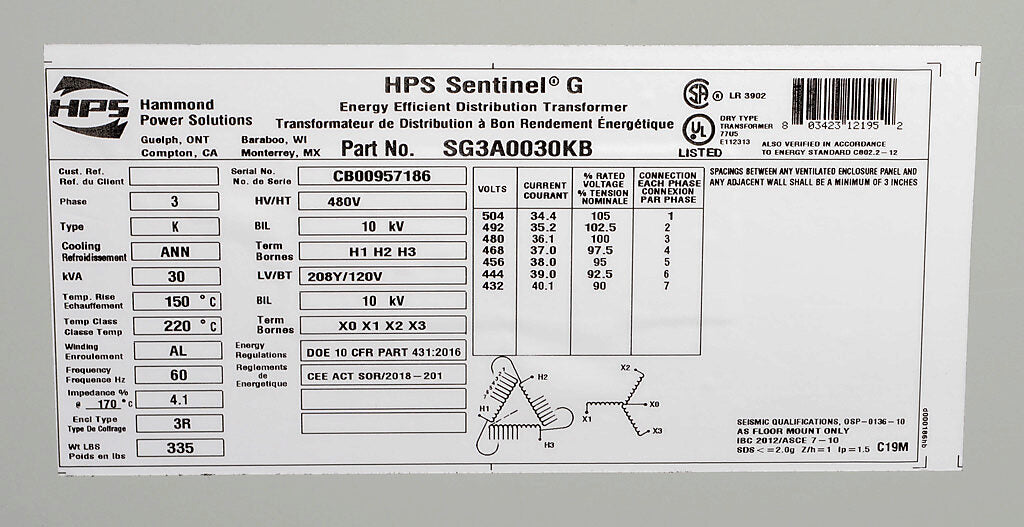

✔ Part Number: SG3A0030KB
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 3
✔ Duty: General Duty
✔ Frequency: 60Hz
✔ Primary Voltage: 480D
✔ Primary Connection: Delta
✔ Secondary Voltage: 208Y/120
✔ Secondary Connection: Wye-N
✔ Material: Aluminum
✔ Temperature Rise: 150°C
✔ Insulation Class: 220°C
✔ EKVA: 30
✔ Efficiency Regulation: DOE 2016 (US), NRCAN 2019 (Canada), NMX 2021 (Mexico)
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Sound Level: 45 dBA (NEMA ST-20)
✔ Impedance (Std): 2.5% - 6.5%
✔ Secondary Termination (NPL): Mechanical Lugs
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure Dimensions: 28.75in/731mm(H), 25.75in/655mm(W), 23.8in/605mm(D)
✔ Vector Configuration: Dyn1 (-30°)
✔ UPC: 803423121952
✔ Weight: 290
✔ Certification: CSA, UL
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
