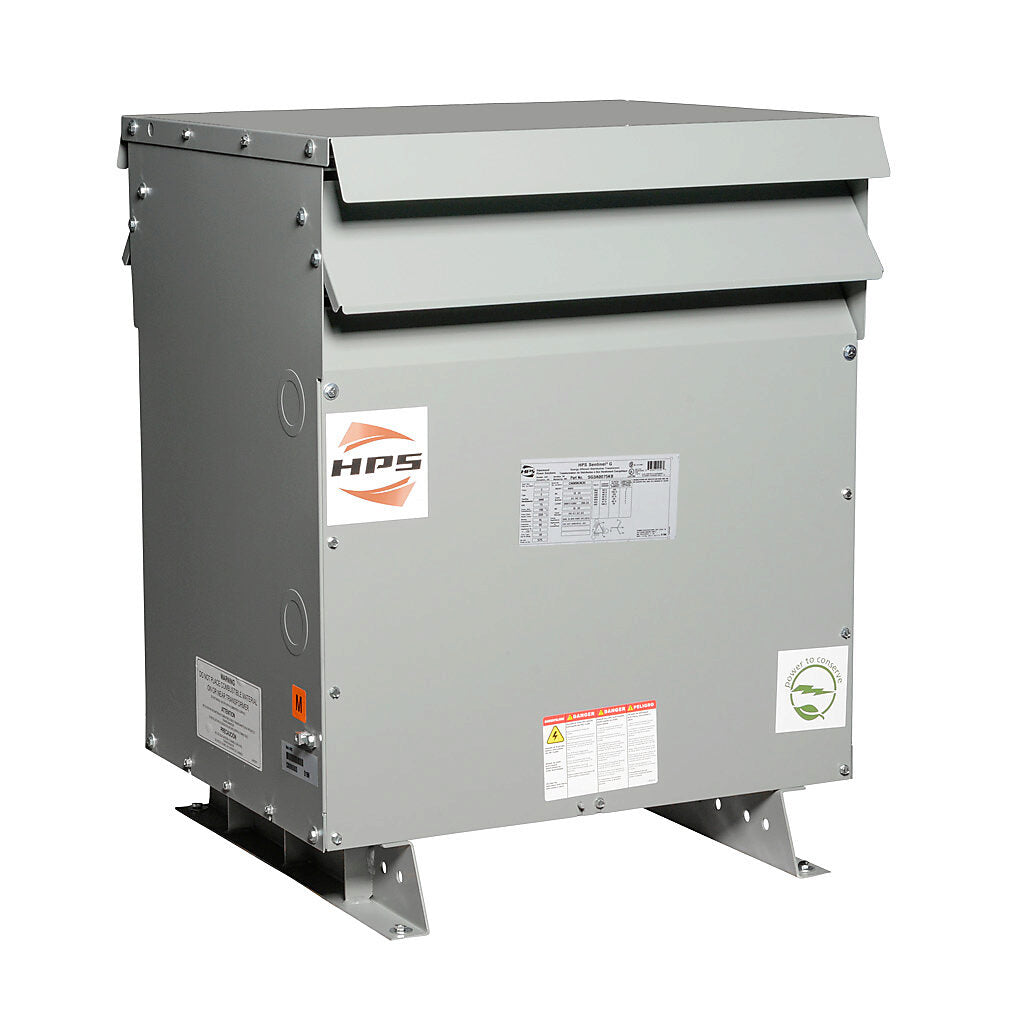

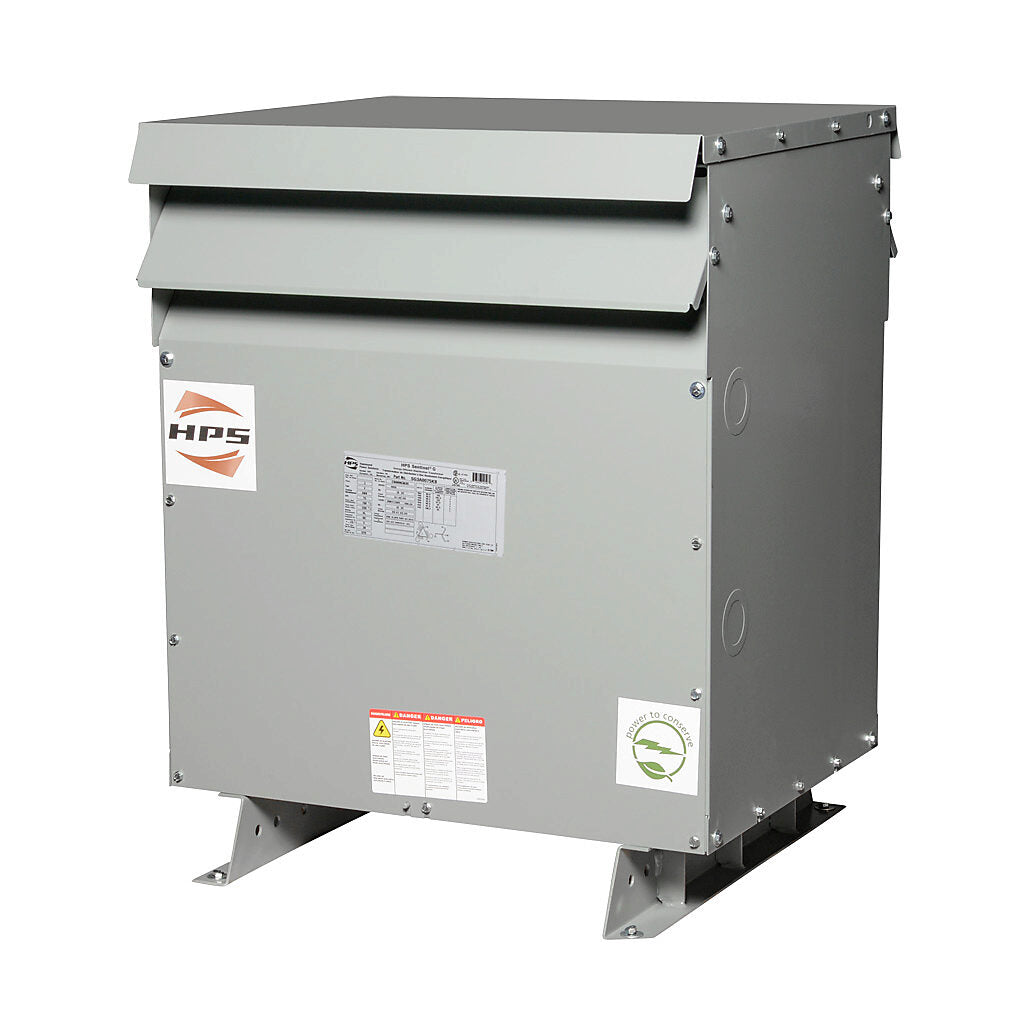

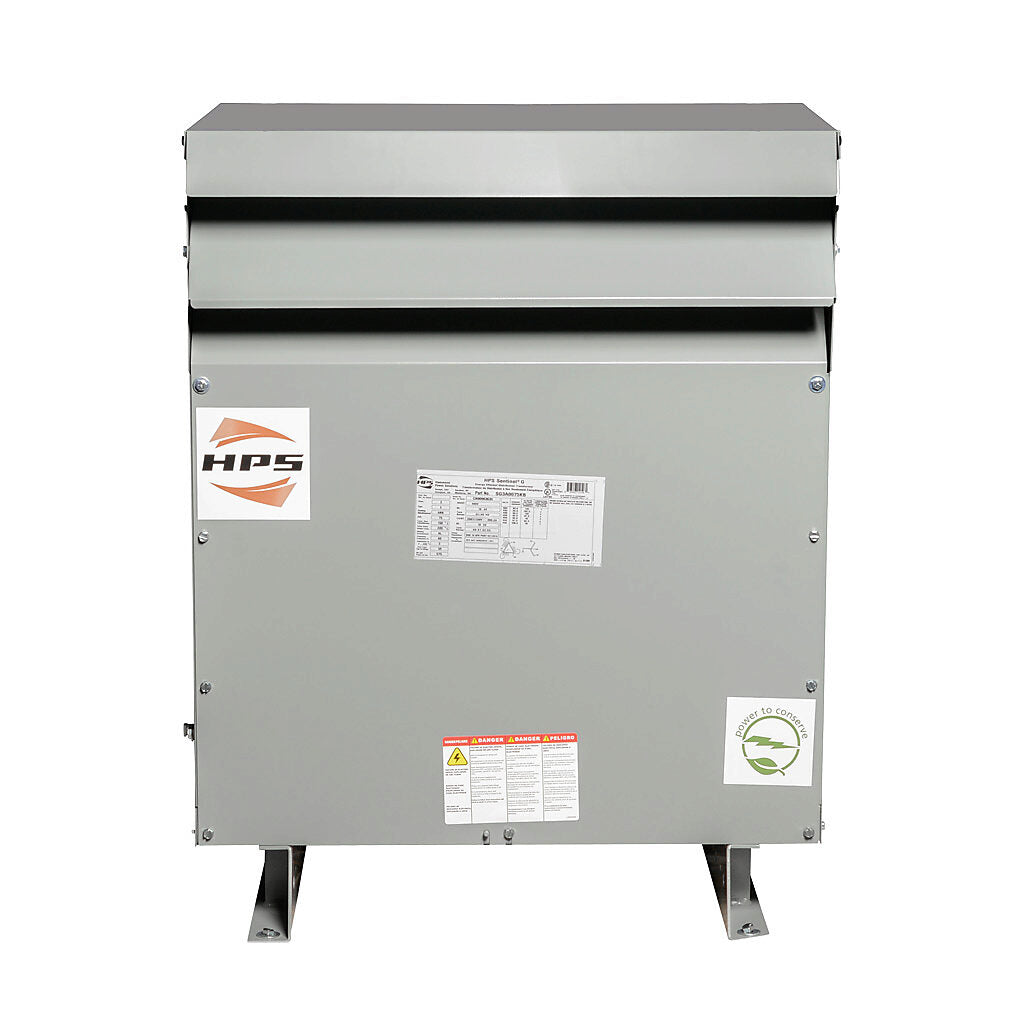

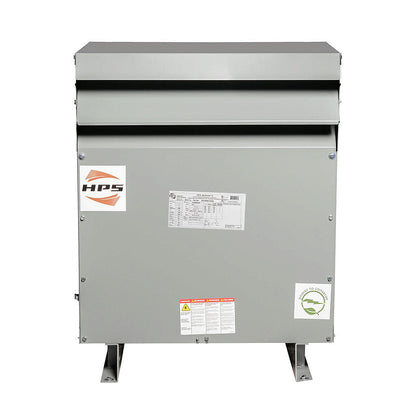

Hammond Power Solutions SG3A0075KB Dry-Type Transformer | 75 kVA 480D-208Y/120V 3-Phase Sentinel G
Hammond Power Solutions SG3A0075KB Dry-Type Transformer | 75 kVA 480D-208Y/120V 3-Phase Sentinel G
Price:
Sale
Sold out
Regular price
$4,144.56 USD
Regular price
$5,844.00 USD
Sale price
$4,144.56 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
This 75 kVA dry-type distribution transformer is designed for stepping down 480V delta primary voltage to 208Y/120V secondary voltage in 3-phase, 60Hz systems. It features aluminum windings, a 150°C temperature rise, and 220°C insulation class housed in a durable Type 3R/IP24 enclosure. The transformer complies with DOE 2016, NRCan 2019, and NMX 2021 efficiency regulations and meets IBC 2018 seismic standards for reliable performance in commercial and industrial applications.
Key Features:
✔ Part Number: SG3A0075KB
✔ Manufacturer: Hammond Power Solutions
✔ Category: Distribution Equipment
✔ Subcategory: Transformers
✔ Family: Sentinel G
✔ Type: Dry Type
✔ Phase: 3
✔ Frequency: 60Hz
✔ Primary Voltage: 480D
✔ Secondary Voltage: 208Y/120
✔ Material: Aluminum
✔ Temperature Rise: 150°C
✔ Insulation Class: 220°C
✔ kVA: 75
✔ Efficiency Regulation: DOE 2016 (US), NRCAN 2019 (Canada), NMX 2021 (Mexico)
✔ Seismic Compliance: IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Sound Level: 50 dBA (NEMA ST-20)
✔ Impedance: 2.5% - 6.5%
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure Dimensions: 36in/915mm(H), 28.25in/718mm(W), 27in/686mm(D)
✔ Vector Configuration: Dyn1 (-30°)
✔ Weight: 575 lb
✔ Certification: CSA, UL
✔ UPC: 803423121969
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
