Siemens SG3C0075KD Distribution Equipment | 3 Phase 480D Delta 240/120 75kVA Sentinel G
Siemens SG3C0075KD Distribution Equipment | 3 Phase 480D Delta 240/120 75kVA Sentinel G
Price:
Sale
Sold out
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low inventory, please call (855) 875-5050 for stock check
Factory Lead Time: 11 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.
Factory Lead Time: 11 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.
Couldn't load pickup availability
Product Description:

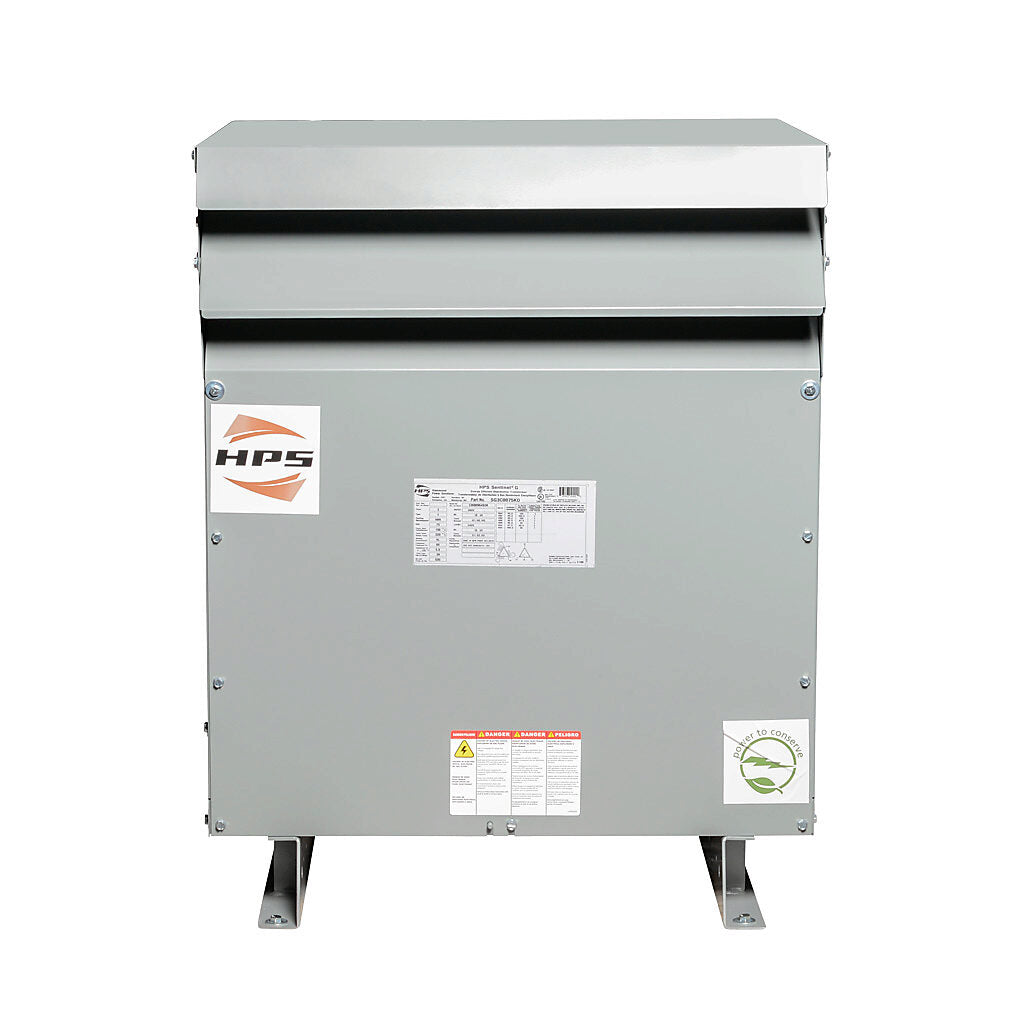

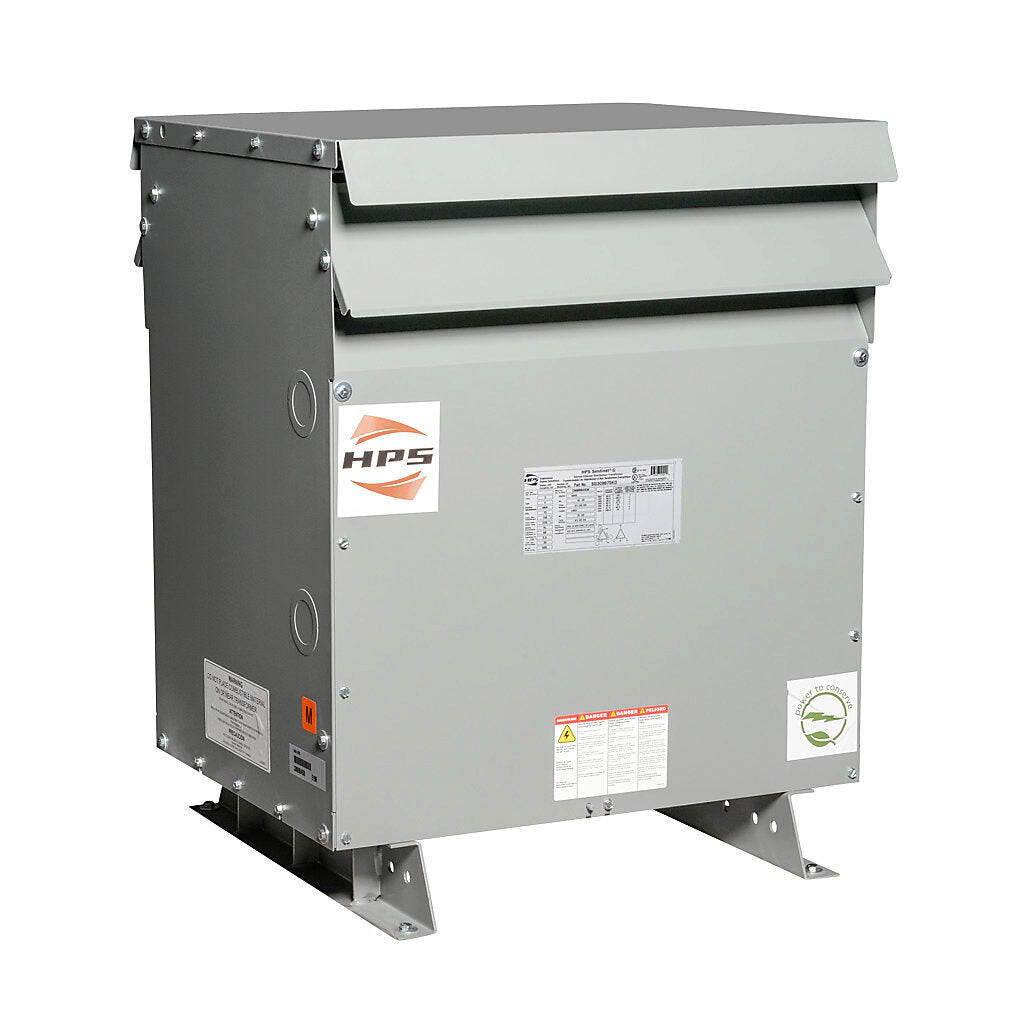

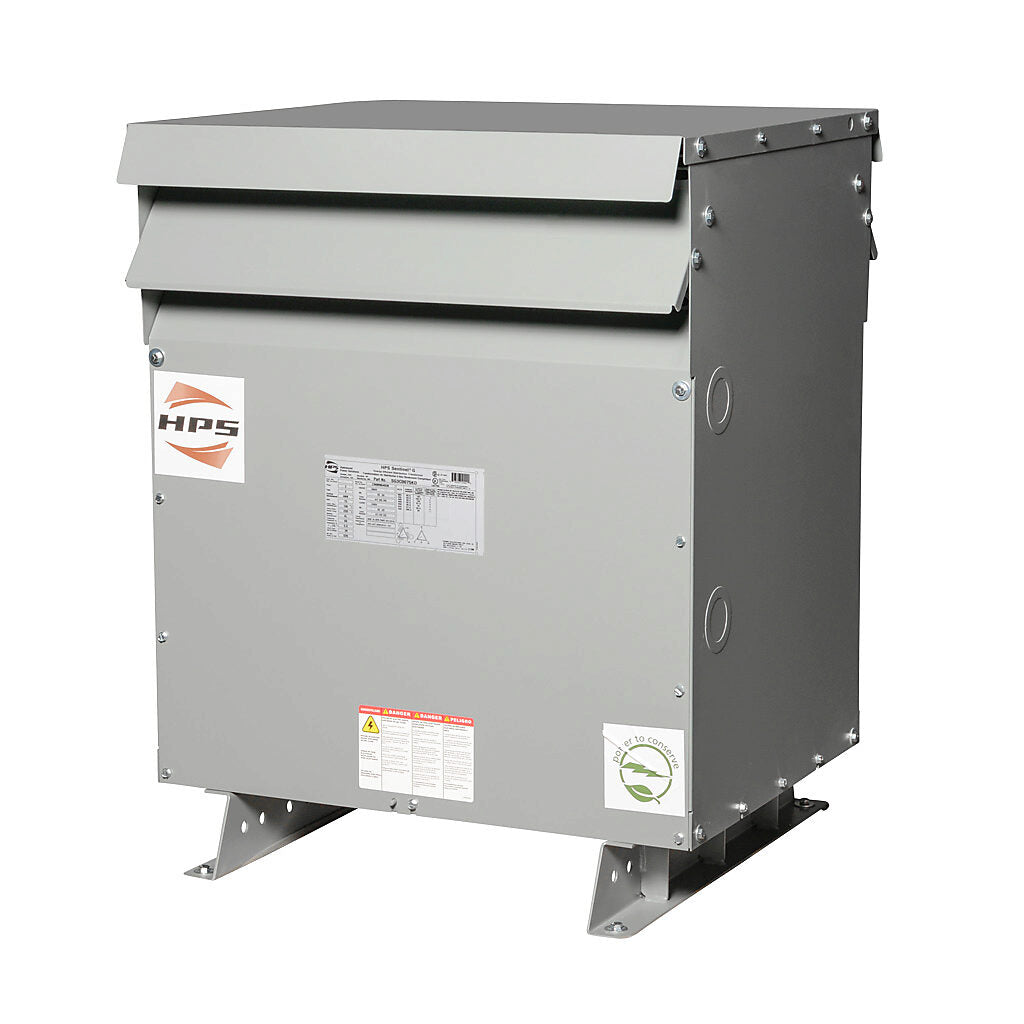

The SG3C0075KD is a 3-phase dry-type transformer designed for general duty applications. It features a 480D primary voltage and 240/120 secondary voltage with aluminum windings for efficient power distribution. Compliant with DOE 2016, NRCAN 2019, and NMX 2021 efficiency standards, it is ideal for industrial and commercial use. The transformer comes in a Type 3R/IP24 enclosure with ANSI 61 Grey finish for durability.

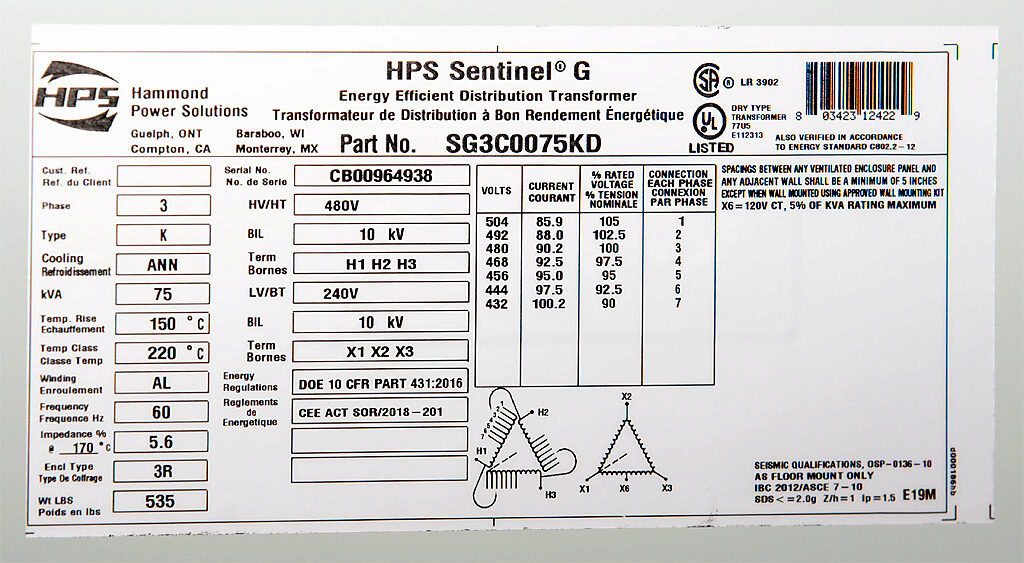

Key Features:
✔ Part Number: SG3C0075KD
✔ Category: Distribution Equipment
✔ Subcategory: Transformers
✔ Family: Sentinel G
✔ Phase: 3
✔ Primary Voltage: 480D
✔ Secondary Voltage: 240/120
✔ Material: Aluminum
✔ Temperature Rise: 150°C
✔ Insulation Class: 220°C
✔ EKVA: 75
✔ Efficiency Regulation: DOE 2016 (US), NRCAN 2019 (Canada), NMX 2021 (Mexico)
✔ Seismic Compliance: IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Sound Level: 50 dBA (NEMA ST-20)
✔ Impedance: 2.5% - 6.5%
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure Dimensions: 36in/915mm(H), 28.25in/718mm(W), 27in/686mm(D)
✔ Standard kVA: 75
✔ Vector Configuration: Dd0 (0°)
✔ Certification: CSA, UL
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
The SG3C0075KD is a 3-phase dry-type transformer designed for general duty applications. It features a 480D primary voltage and 240/120 secondary voltage with aluminum windings for efficient power distribution. Compliant with DOE 2016, NRCAN 2019, and NMX 2021 efficiency standards, it is ideal for industrial and commercial use. The transformer comes in a Type 3R/IP24 enclosure with ANSI 61 Grey finish for durability.
