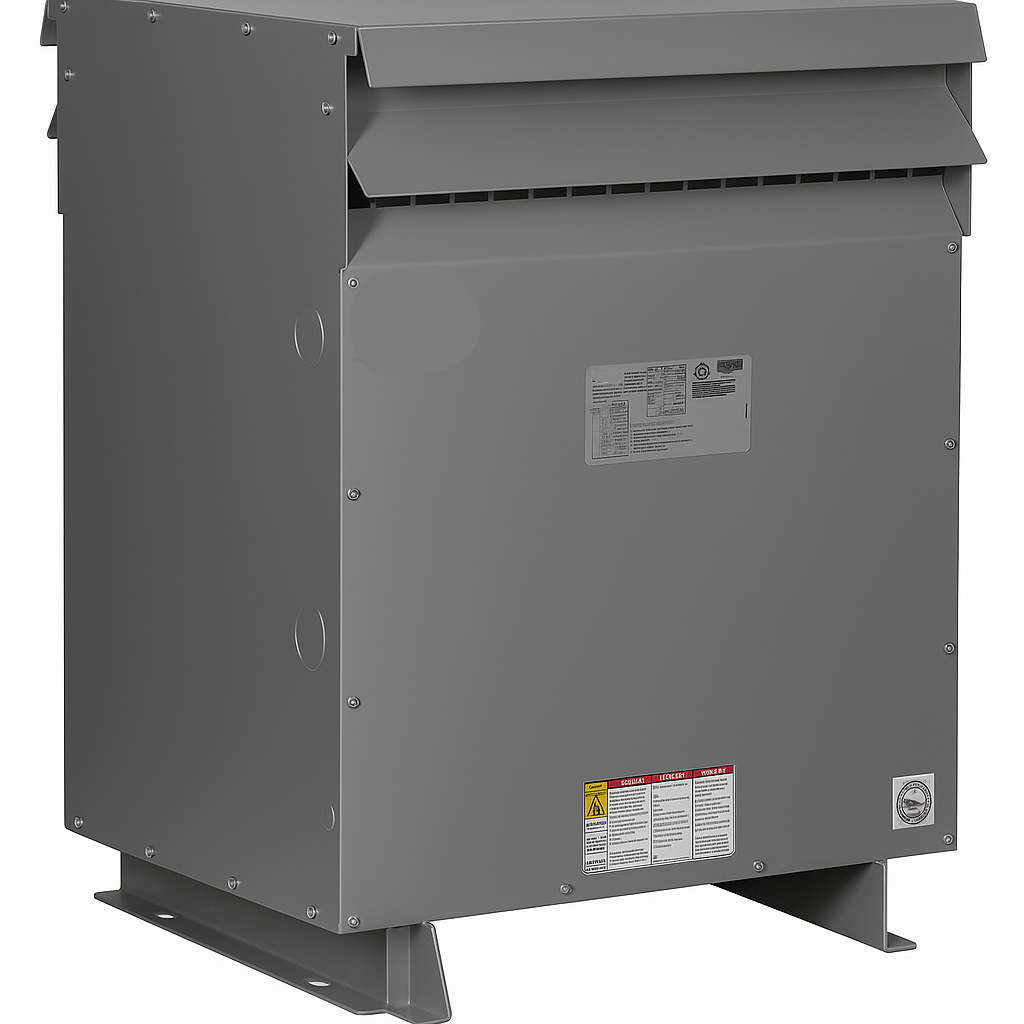

Images are for reference only
Hammond Power Solutions

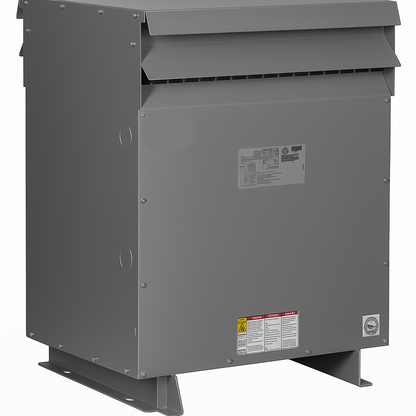

Hammond Power Solutions SH3U0750PB3K Transformer 750kVA 600Y/208Z/120V
Hammond Power Solutions SH3U0750PB3K Transformer 750kVA 600Y/208Z/120V
Price:
Sale
Sold out
Regular price
$80,040.21 USD
Regular price
$122,900.00 USD
Sale price
$80,040.21 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
This three-phase general duty transformer is designed for industrial power distribution applications. It features a 750 kVA capacity with a 600Y/208Z/120V configuration and copper windings. The unit is housed in a Type 3R/IP24 enclosure and complies with DOE 2016, NRCAN 2019, and NMX 2021 efficiency regulations. It is suitable for industrial facilities, commercial buildings, and utility distribution systems.
Key Features:
✔ Part Number: SH3U0750PB3K
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 3
✔ Duty: General Duty
✔ Frequency: 60Hz
✔ Primary Voltage: 600Y
✔ Primary Connection: Wye
✔ Secondary Voltage: 208Z/120
✔ Secondary Connection: Zig-Zag-N
✔ Material: Copper
✔ Temperature Rise: 150°C
✔ Insulation Class: 220°C
✔ Efficiency Regulation: DOE 2016 (US), NRCAN 2019 (Canada), NMX 2021 (Mexico)
✔ Seismic Compliance: IBC 2018 (Sds=2.0, z/h=0, lp=1.5)
✔ Sound Level: 67 dBA (NEMA ST-20)
✔ Impedance (Std): 4% - 7.5%
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure Dimensions: 72in/1829mm(H), 54in/1372mm(W), 44in/1118mm(D)
✔ Electrostatic Shield: Single
✔ Nameplate: Standard
✔ Standard kVA: 750
✔ Vector Configuration: Sec -30°
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: No
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=0
✔ Seismic SDS Value: Sds=2.0
✔ Enclosure IR Window: No
✔ Primary FCAN (Std): 2x2.5%
✔ Primary Termination (Std): Mounting Pads
✔ Certification: CSA, UL
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
