Hammond Power Solutions SP1000MQMJ Transformer | 240x480V Primary 120x240V Secondary Seismic OSHPD
Hammond Power Solutions SP1000MQMJ Transformer | 240x480V Primary 120x240V Secondary Seismic OSHPD
Price:
Sale
Sold out
Regular price
$0.00 USD
Regular price
$350.00 USD
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:

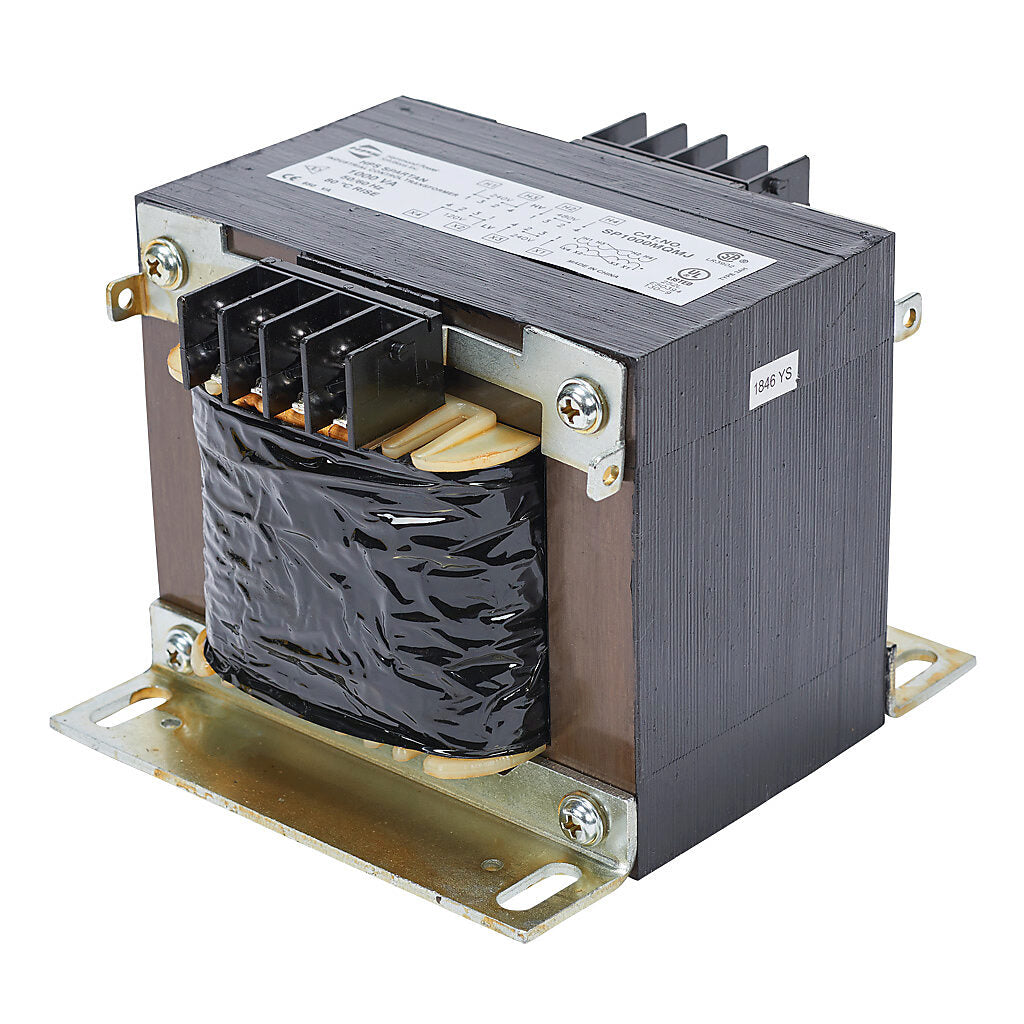

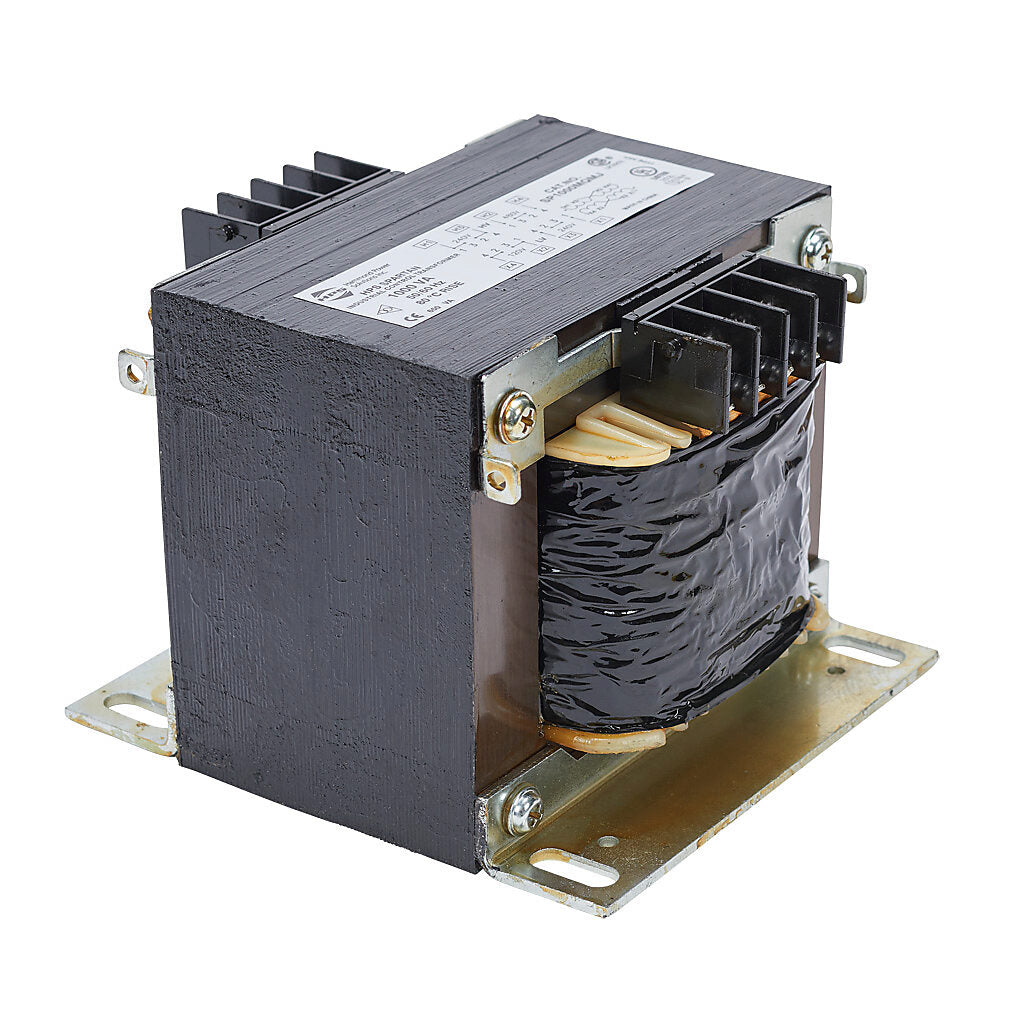

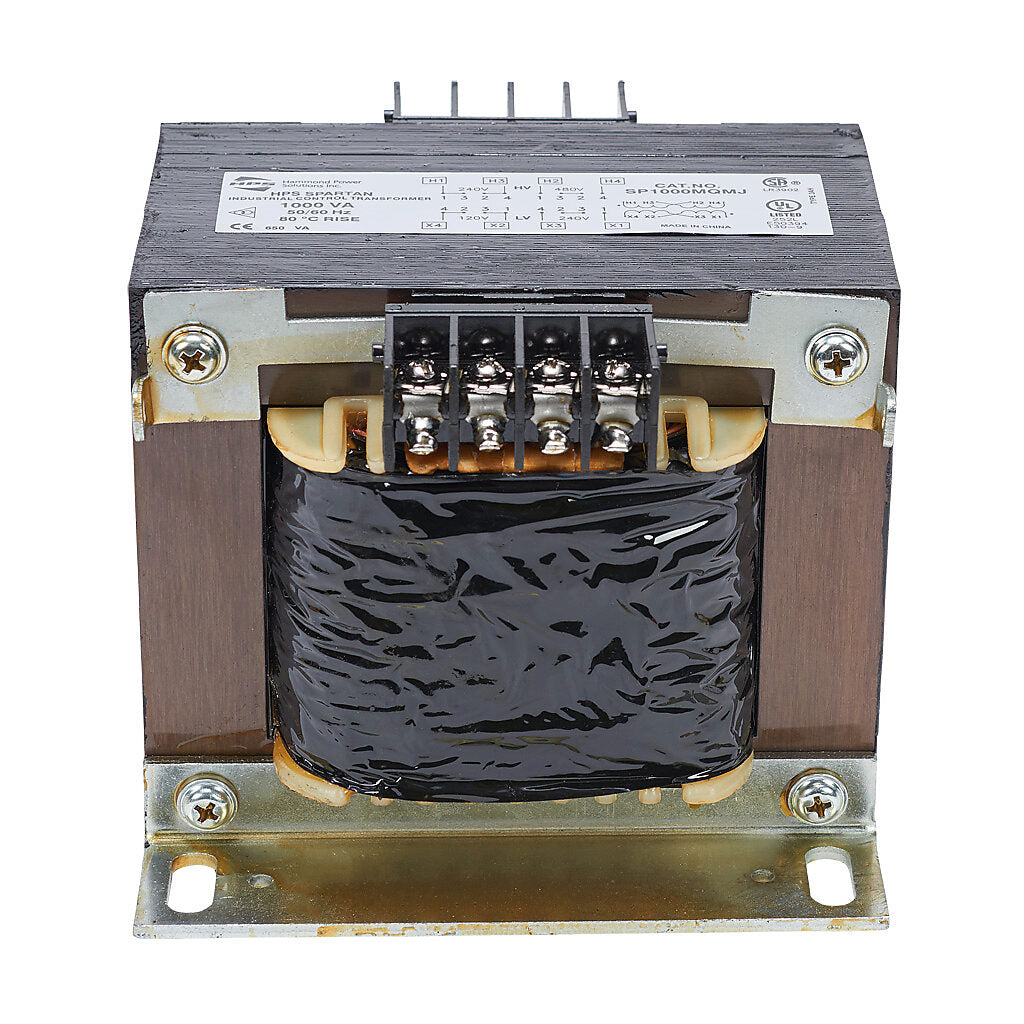

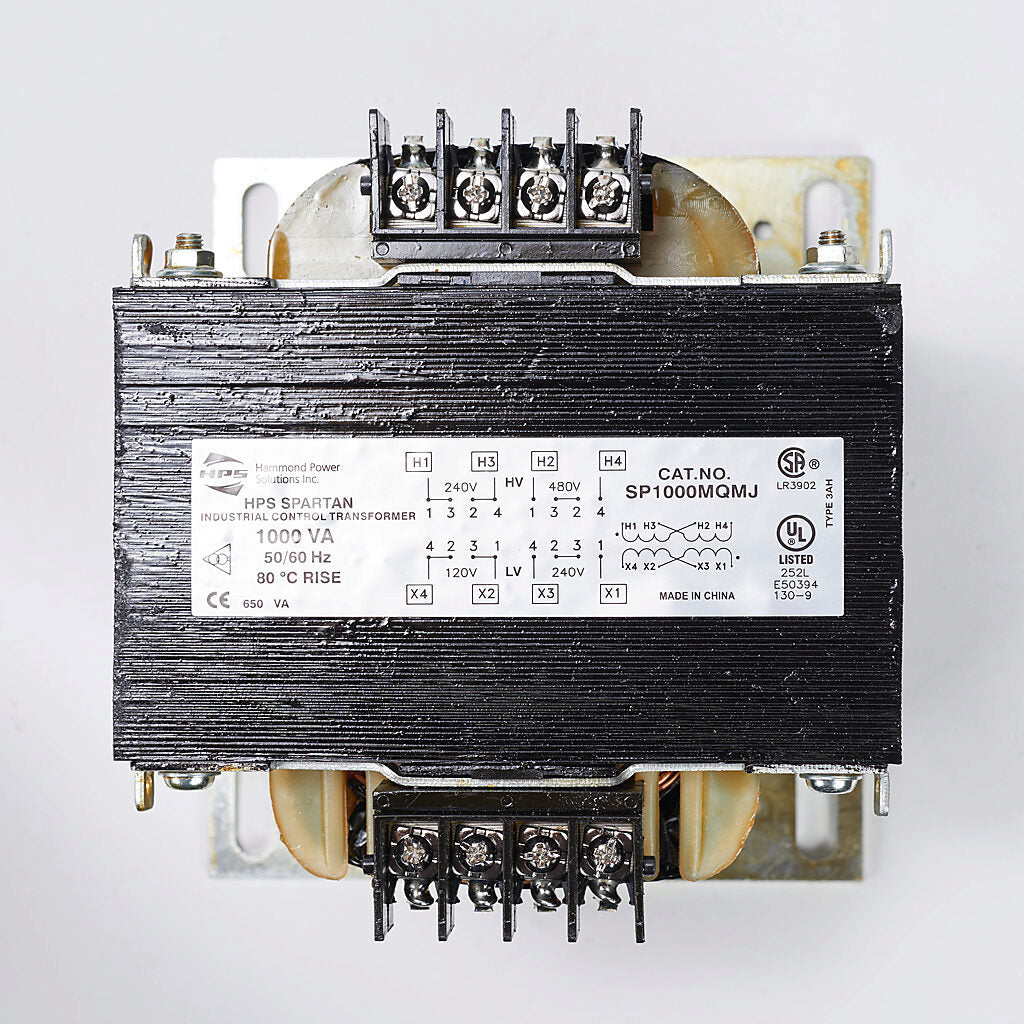

This single-phase core and coil transformer is designed for industrial power distribution. It features versatile voltage configurations with a primary of 240x480V and a secondary of 120x240V, utilizing copper windings. The unit is built with a 130°C insulation class and is rated for an 80°C temperature rise. It meets stringent seismic compliance standards, ensuring reliability in high-risk seismic zones.
Key Features:
✔ Part Number: SP1000MQMJ
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 50/60Hz
✔ Primary Voltage: 240x480
✔ Primary Connection: Parallel x Series (Vx2V)
✔ Secondary Voltage: 120x240
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ EKVA: 1.48124
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Nameplate: Standard
✔ Vector Configuration: 180°
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: Yes
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=1
✔ Seismic SDS Value: Sds=2.0
✔ Primary Termination (Std): Terminal Block
✔ UPC: 803423098827
✔ Weight: 21
✔ Certification: CSA, UL, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
