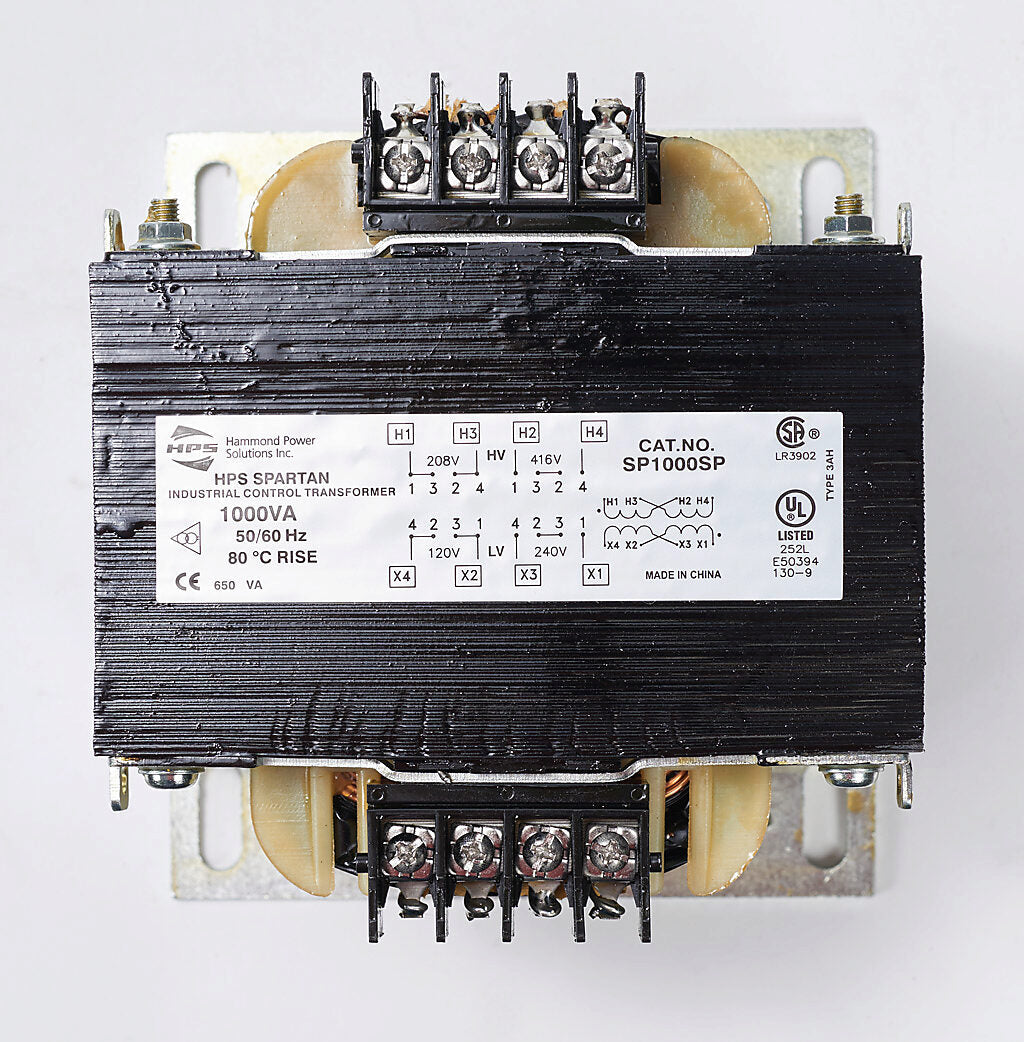

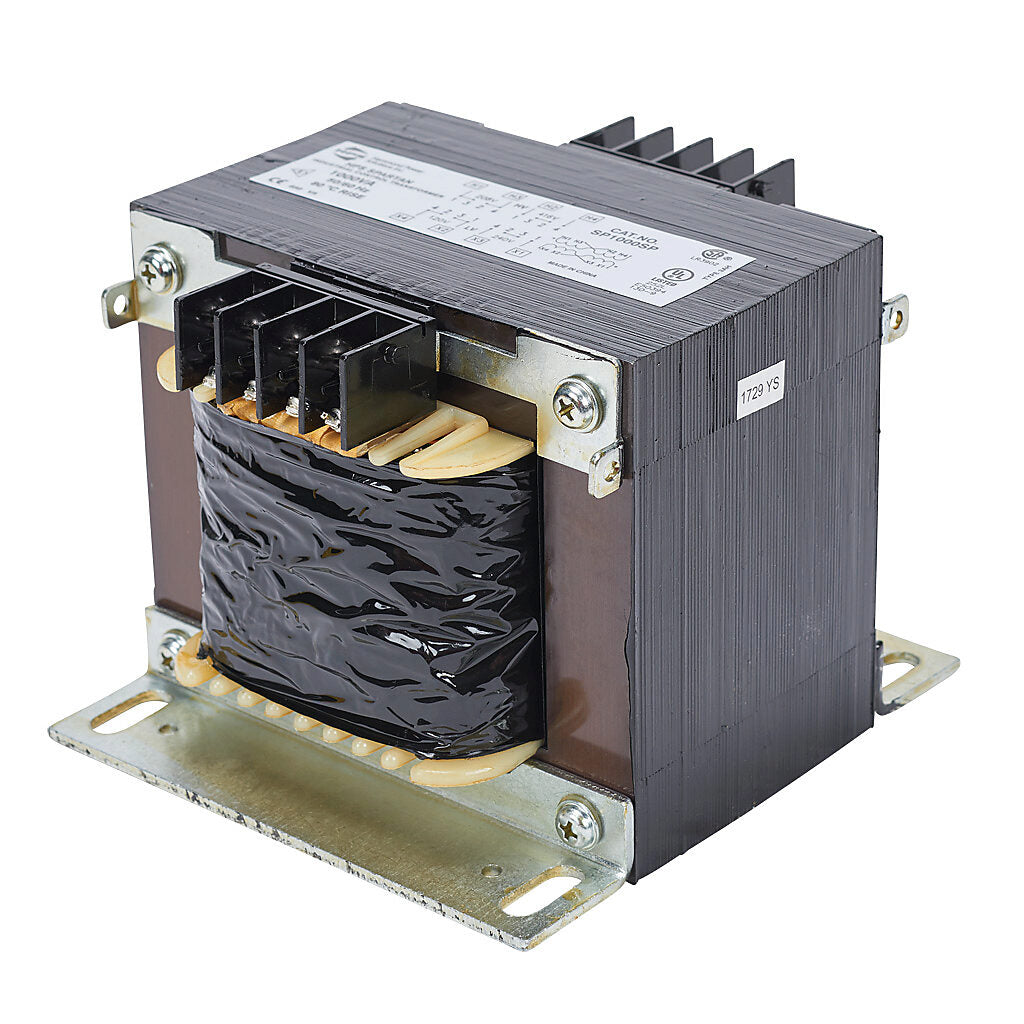

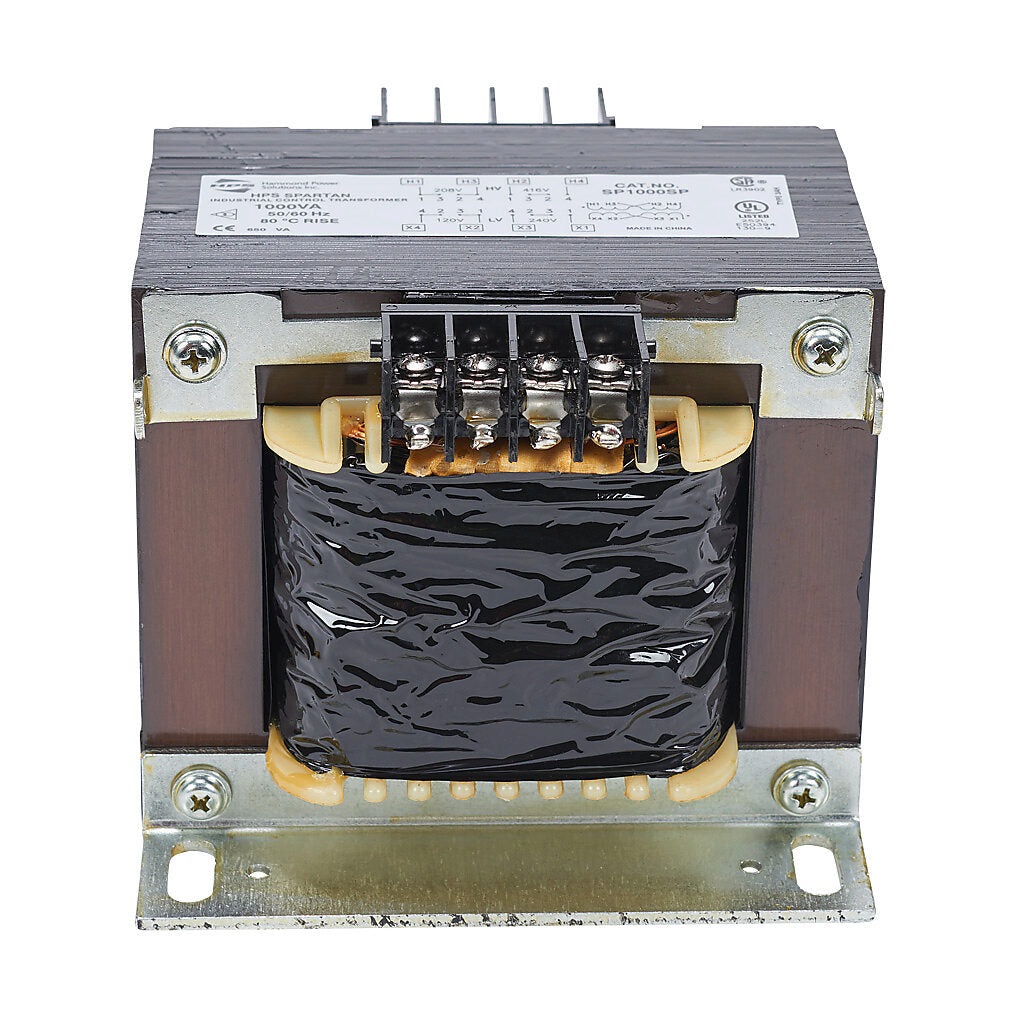

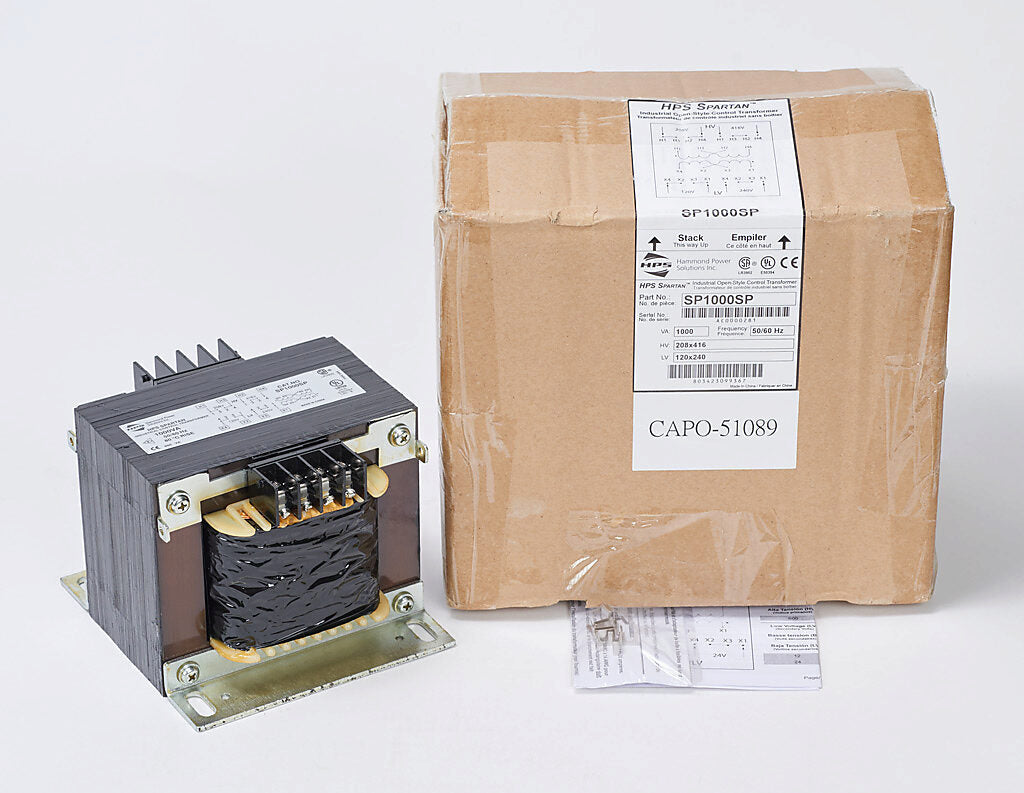

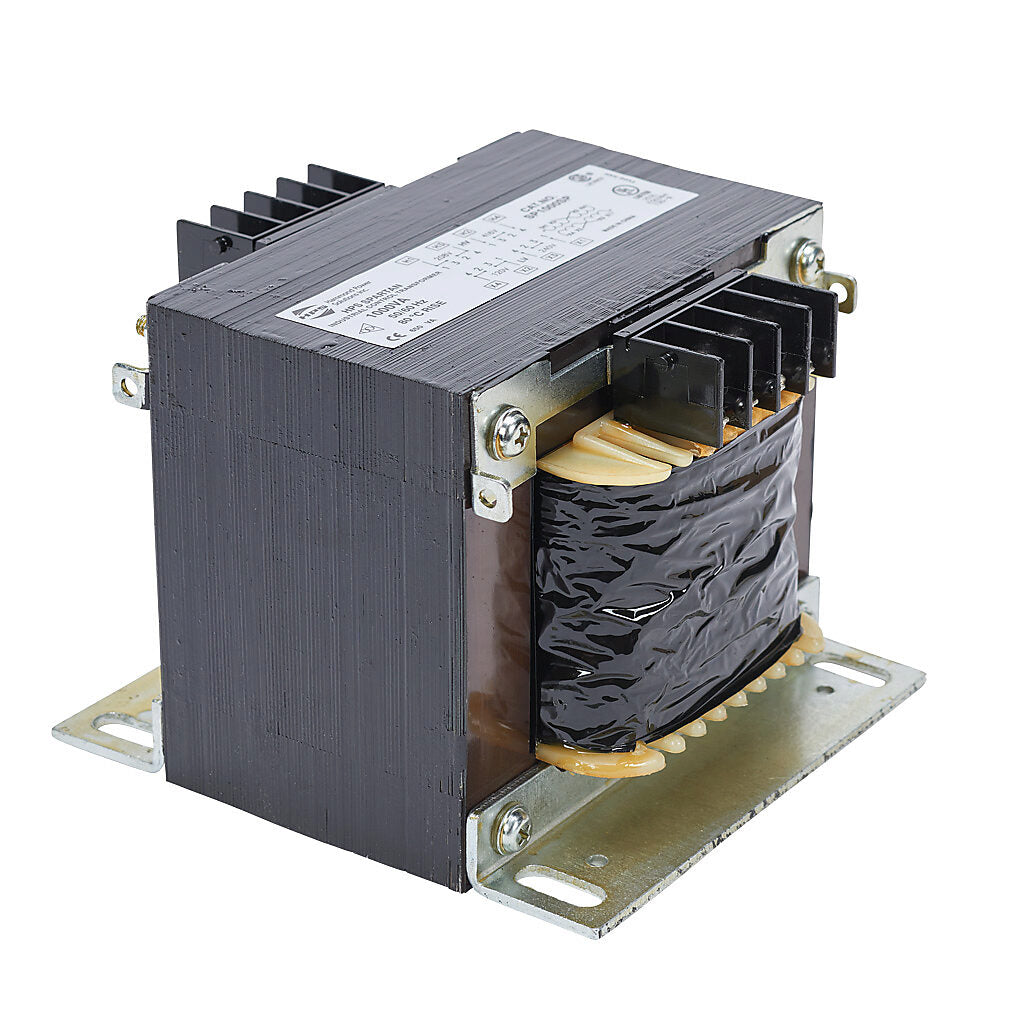

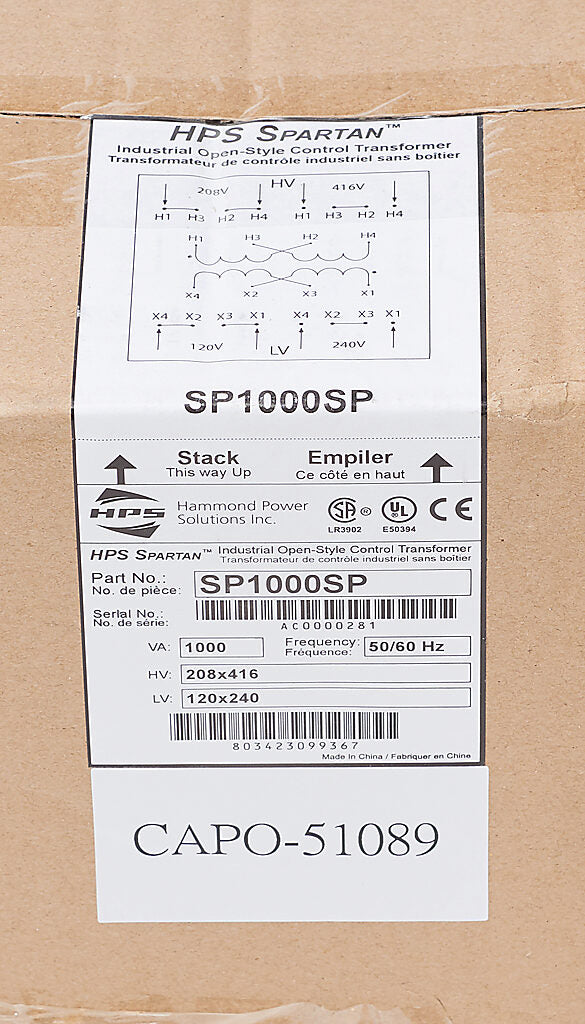

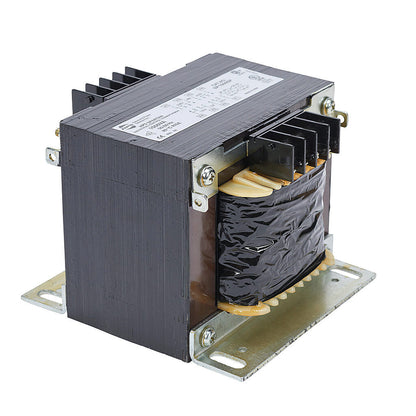

Hammond SP1000SP Transformer | 1 Phase 208x416V Primary 120x240V Secondary 50/60Hz Copper
Hammond SP1000SP Transformer | 1 Phase 208x416V Primary 120x240V Secondary 50/60Hz Copper
Price:
Sale
Sold out
Regular price
$244.85 USD
Regular price
$360.00 USD
Sale price
$244.85 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
The SP1000SP is a single-phase transformer designed for industrial applications. It features a copper construction with a temperature rise of 80°C and insulation class of 130°C. This transformer meets seismic compliance standards including OSHPD and IBC 2018, making it suitable for high-performance environments.
Key Features:
✔ Part Number: SP1000SP
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 50/60Hz
✔ Primary Voltage: 208x416
✔ Primary Connection: Parallel x Series (Vx2V)
✔ Secondary Voltage: 120x240
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ EKVA: 1.48124
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Nameplate: Standard
✔ Vector Configuration: 180°
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: Yes
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=1
✔ Seismic SDS Value: Sds=2.0
✔ Primary Termination (Std): Terminal Block
✔ Weight: 20
✔ Certification: CSA, UL, CE
