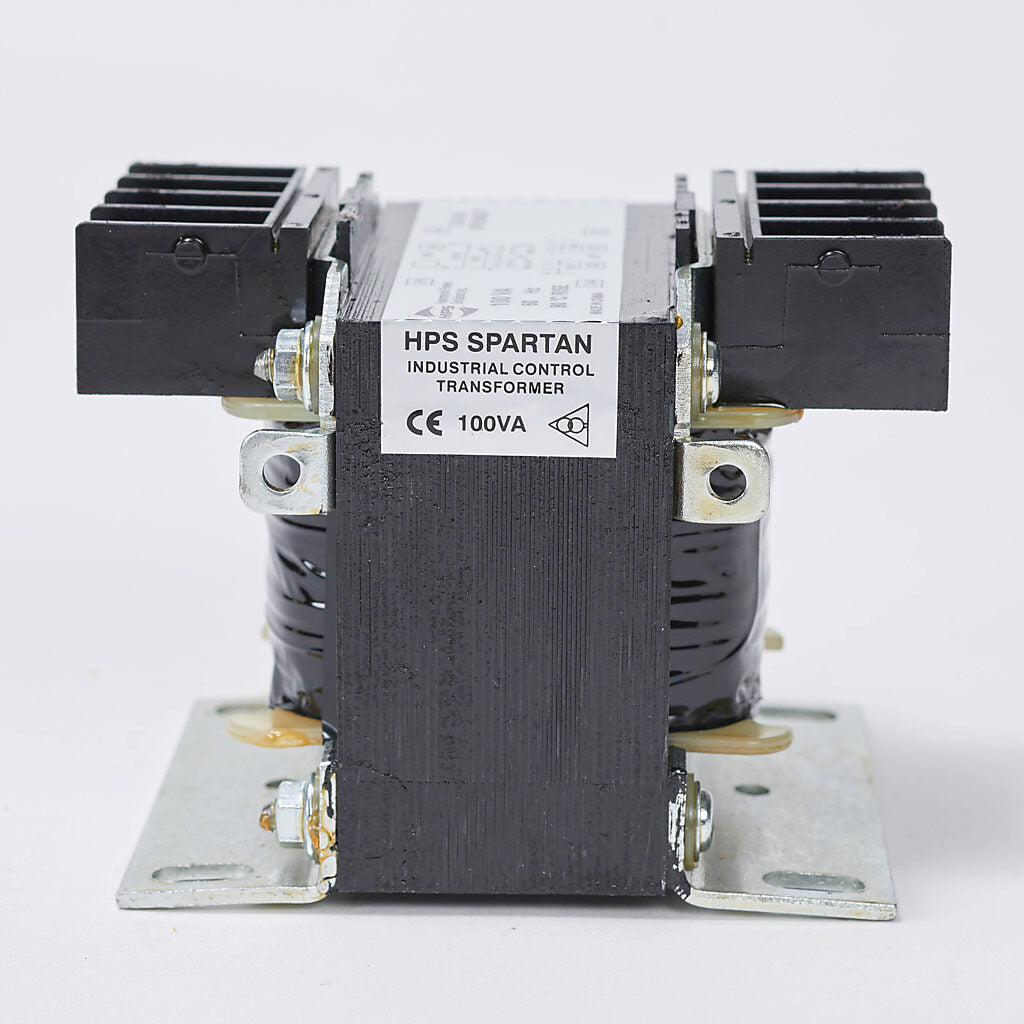

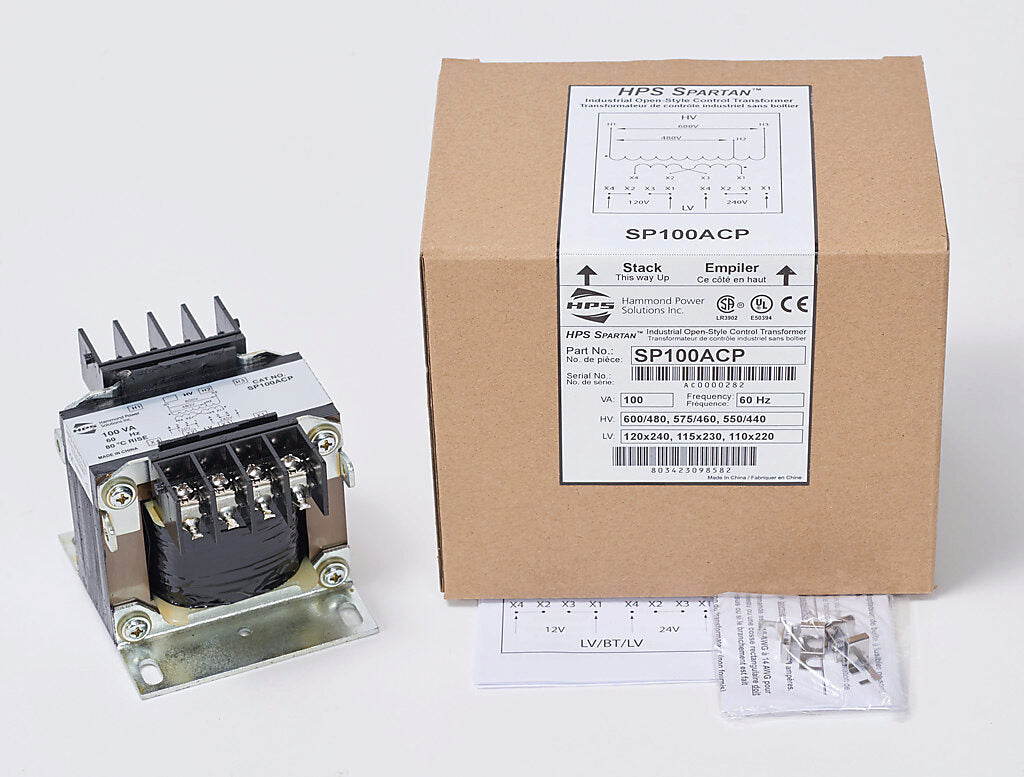

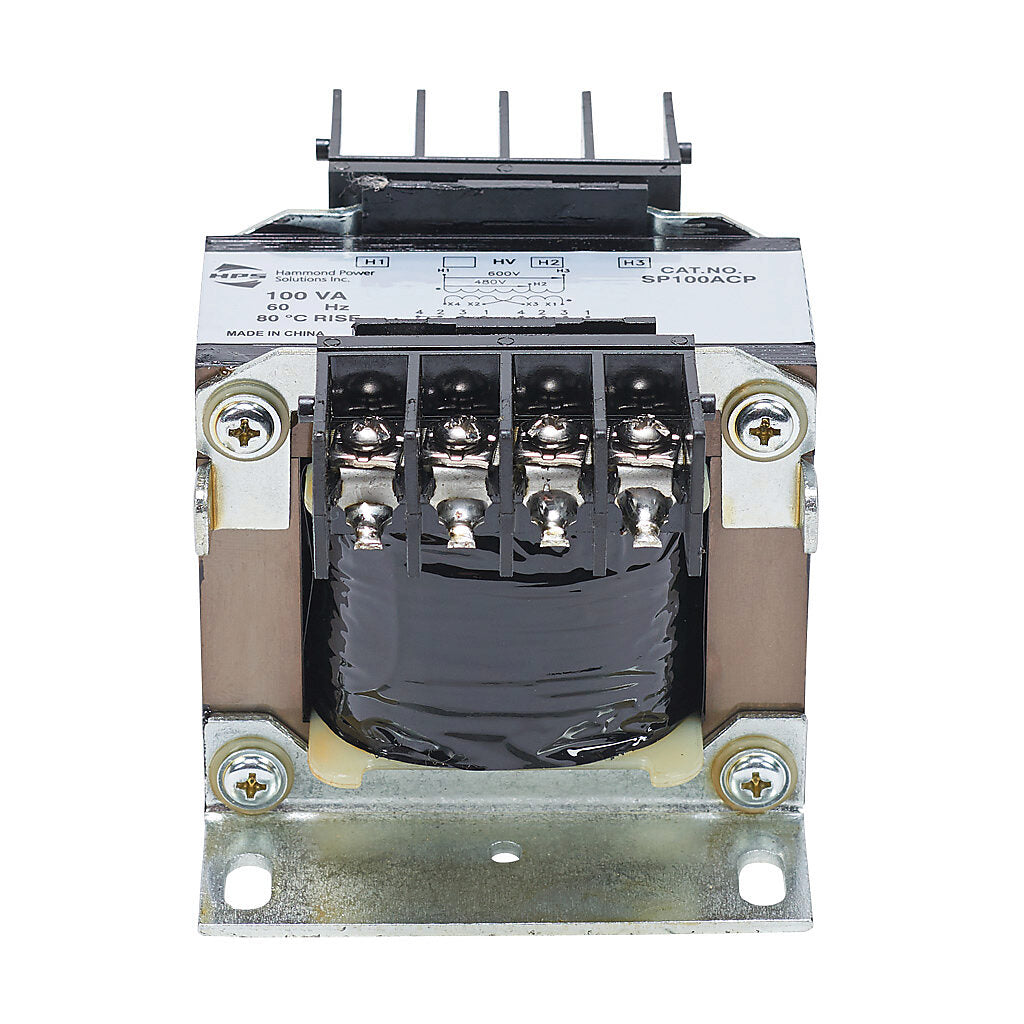

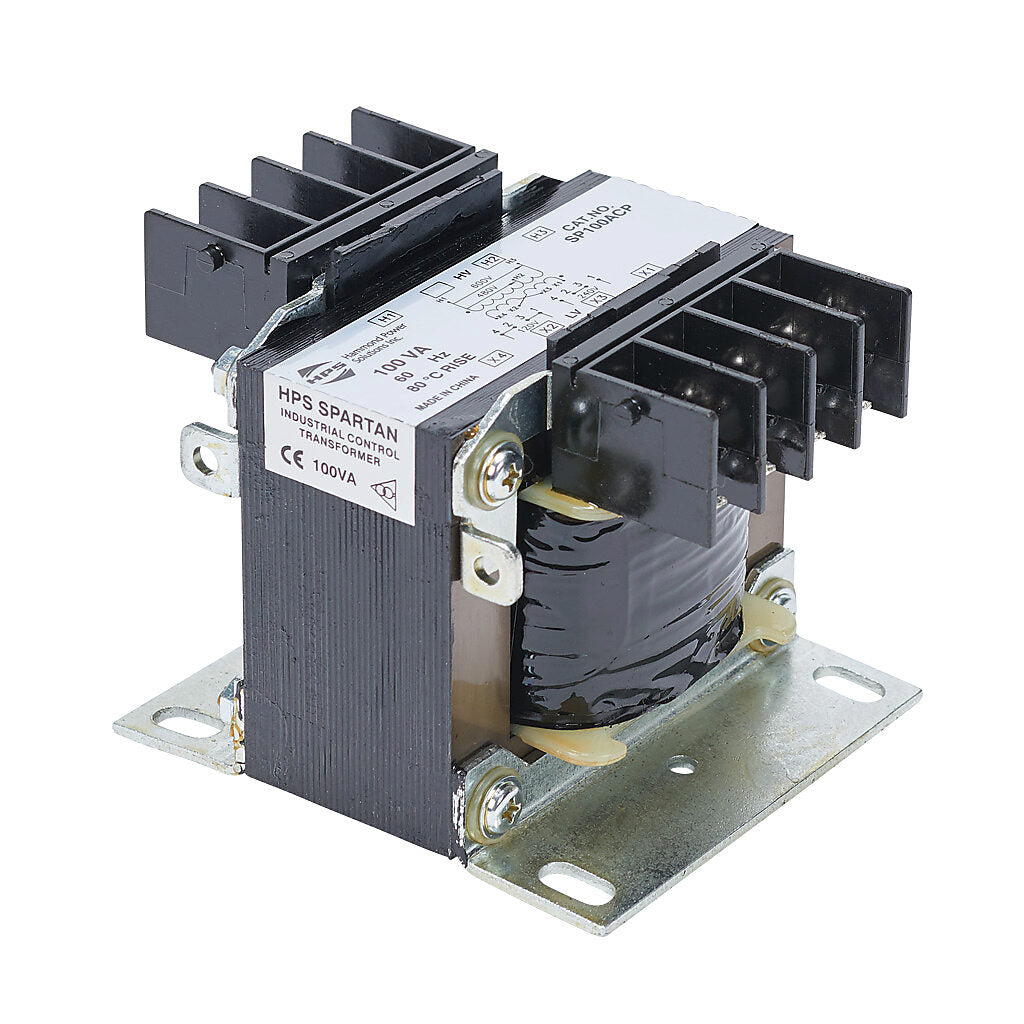

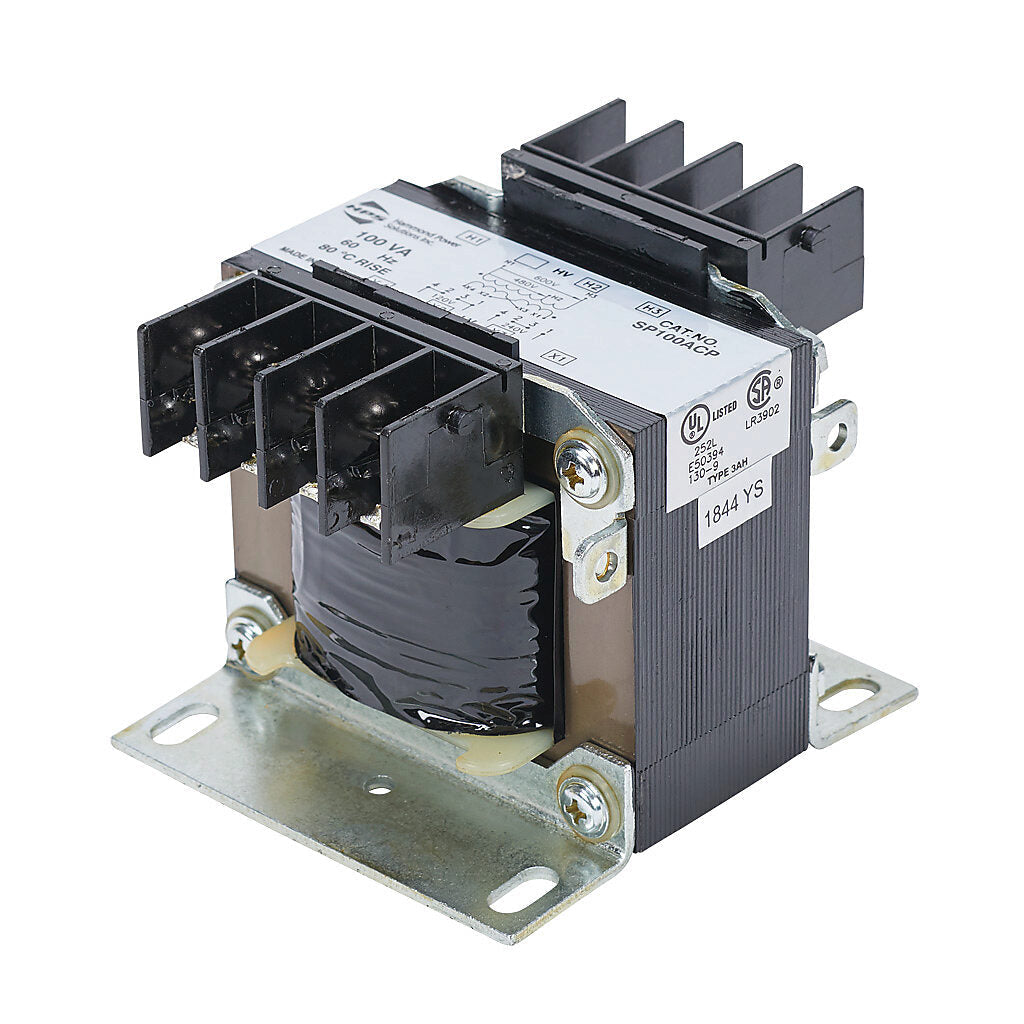

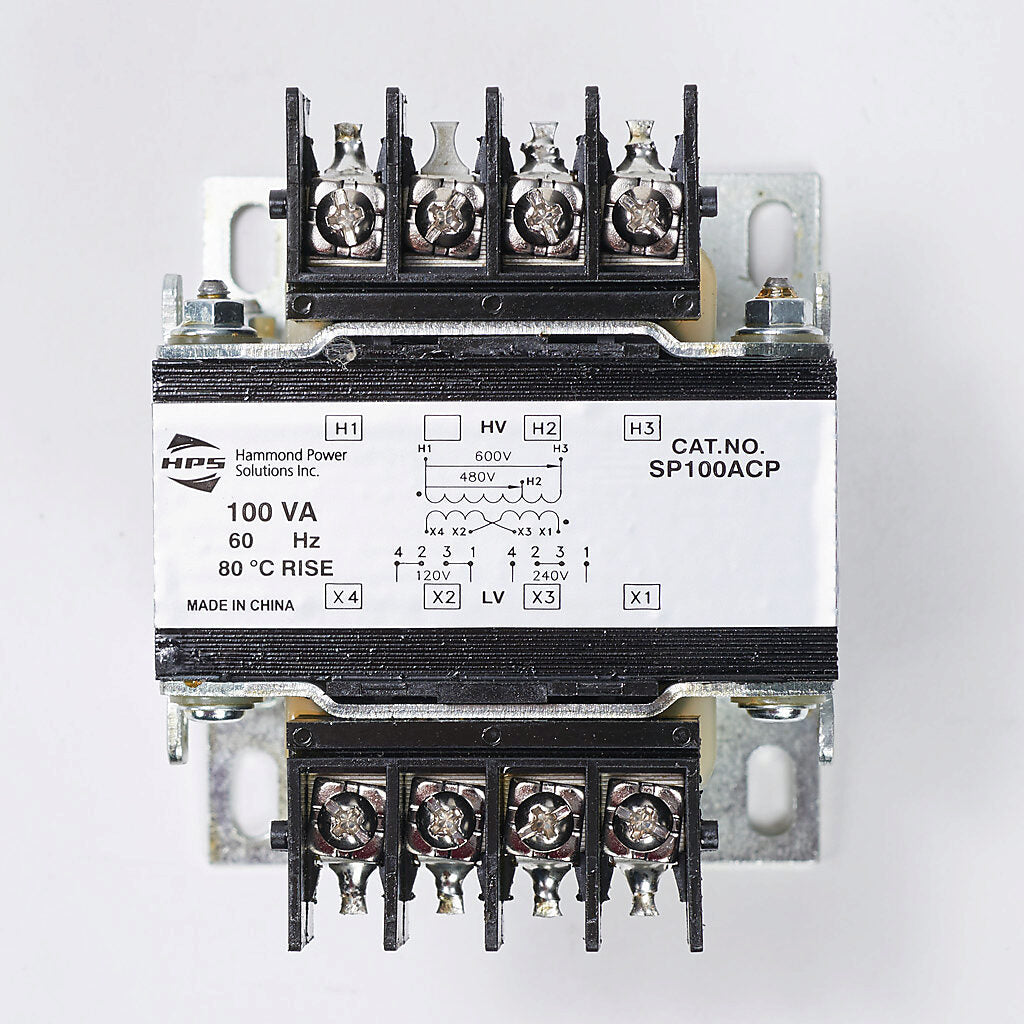

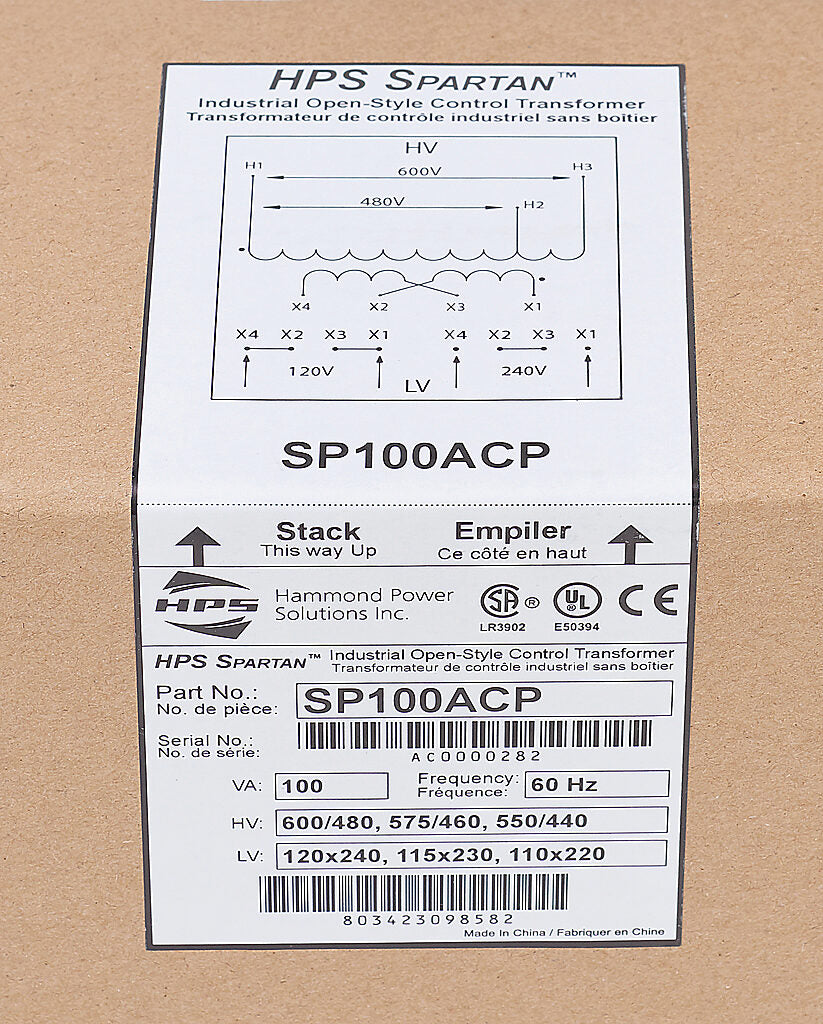

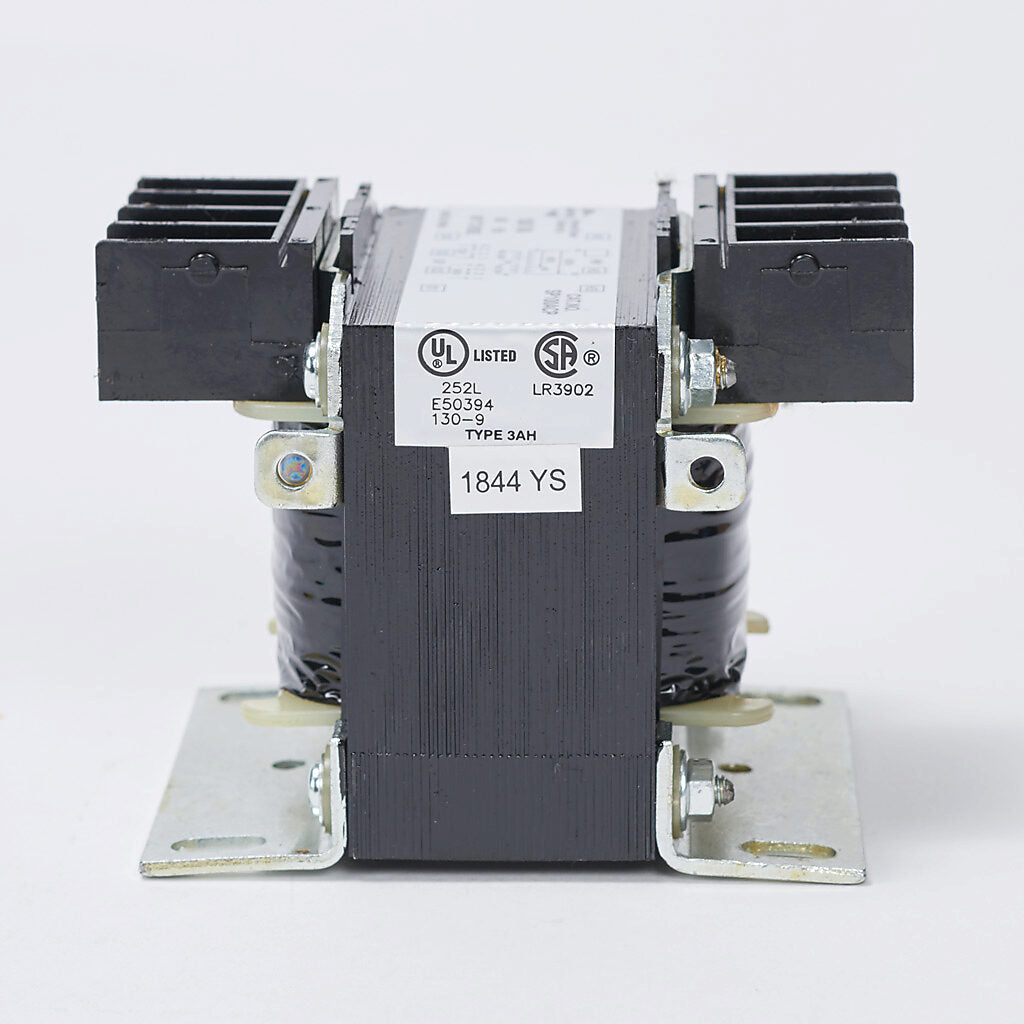

Hammond Power Solutions SP100ACP Transformer | 1 Phase 600 480V Primary 120x240V Secondary
Hammond Power Solutions SP100ACP Transformer | 1 Phase 600 480V Primary 120x240V Secondary
Price:
Sale
Sold out
Regular price
$54.42 USD
Regular price
$78.00 USD
Sale price
$54.42 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
This single-phase transformer is designed for reliable power conversion in industrial and commercial applications. It features a copper construction and is built to meet rigorous seismic standards including IBC 2018 and OSHPD compliance. With certifications from CSA, UL, and CE, it ensures safety and performance. The core and coil enclosure type is suitable for integration into various electrical systems.
Key Features:
✔ Part Number: SP100ACP
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 60Hz
✔ Primary Voltage: 600, 480
✔ Primary Connection: Series (V)
✔ Secondary Voltage: 120x240
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ EKVA: 0.148124
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Nameplate: Standard
✔ Vector Configuration: 180°
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: Yes
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=1
✔ Seismic SDS Value: Sds=2.0
✔ Primary Termination (Std): Terminal Block, Terminal Block
✔ UPC: 803423098582
✔ Weight: 3
✔ Certification: CSA, UL, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
