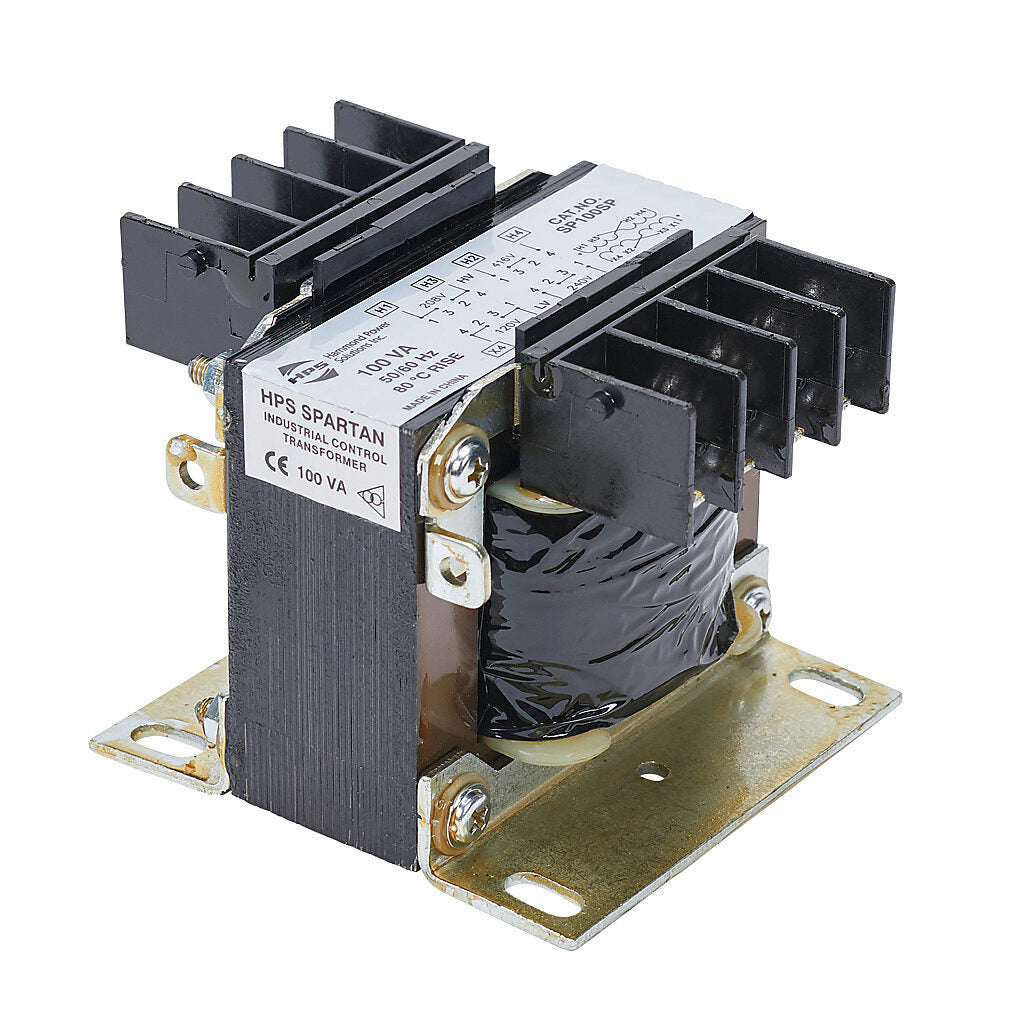

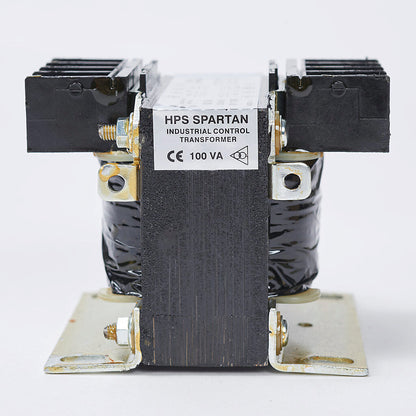

Hammond Power Solutions SP100SP Transformer | 208x416V Primary 120x240V Secondary 50/60Hz Seismic Compliant
Hammond Power Solutions SP100SP Transformer | 208x416V Primary 120x240V Secondary 50/60Hz Seismic Compliant
Price:
Sale
Sold out
Regular price
$59.31 USD
Regular price
$80.00 USD
Sale price
$59.31 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:

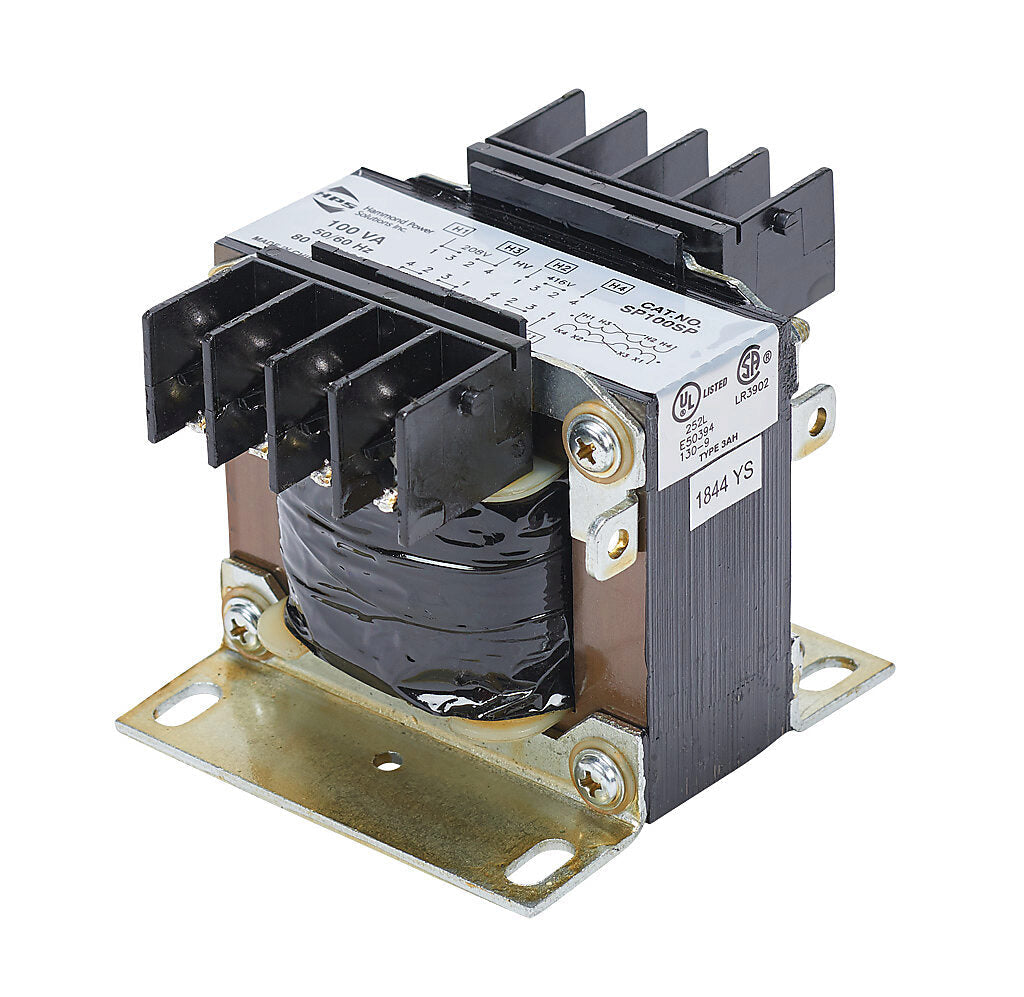

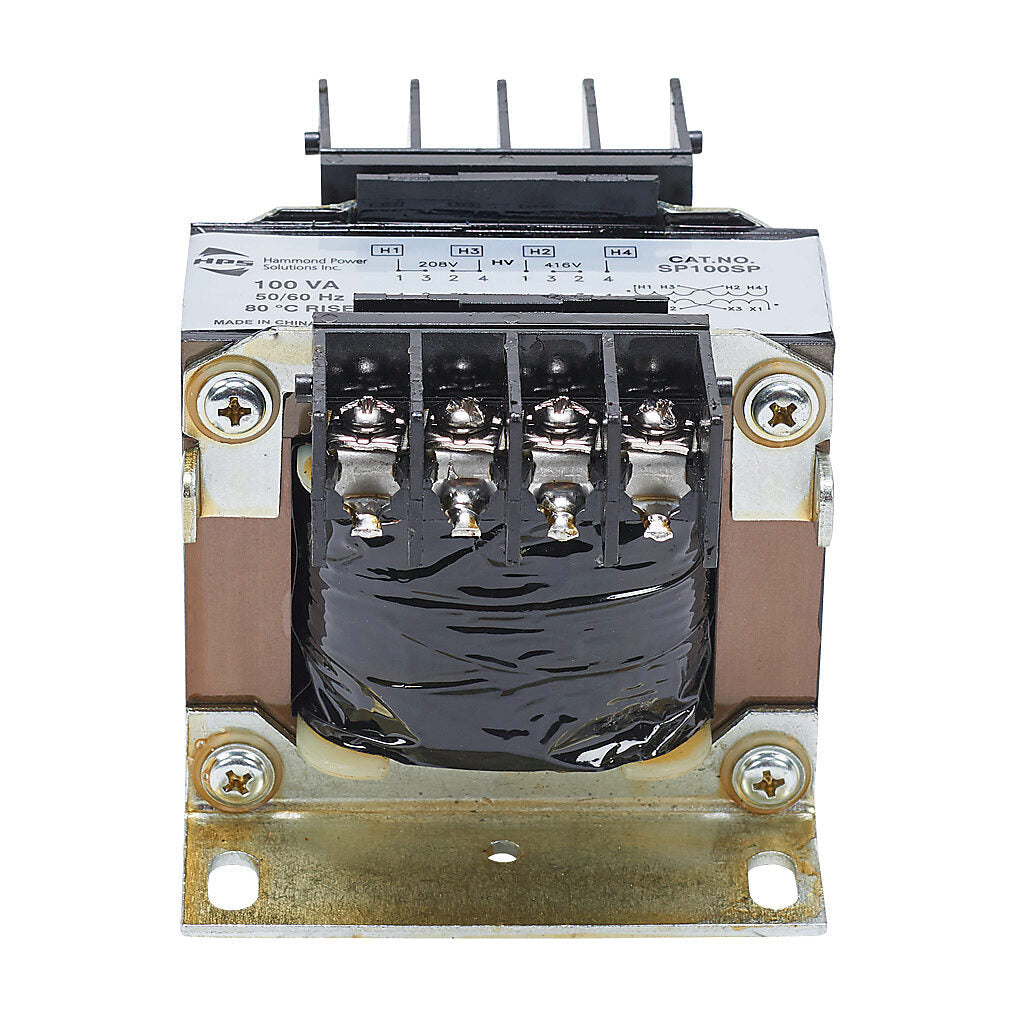

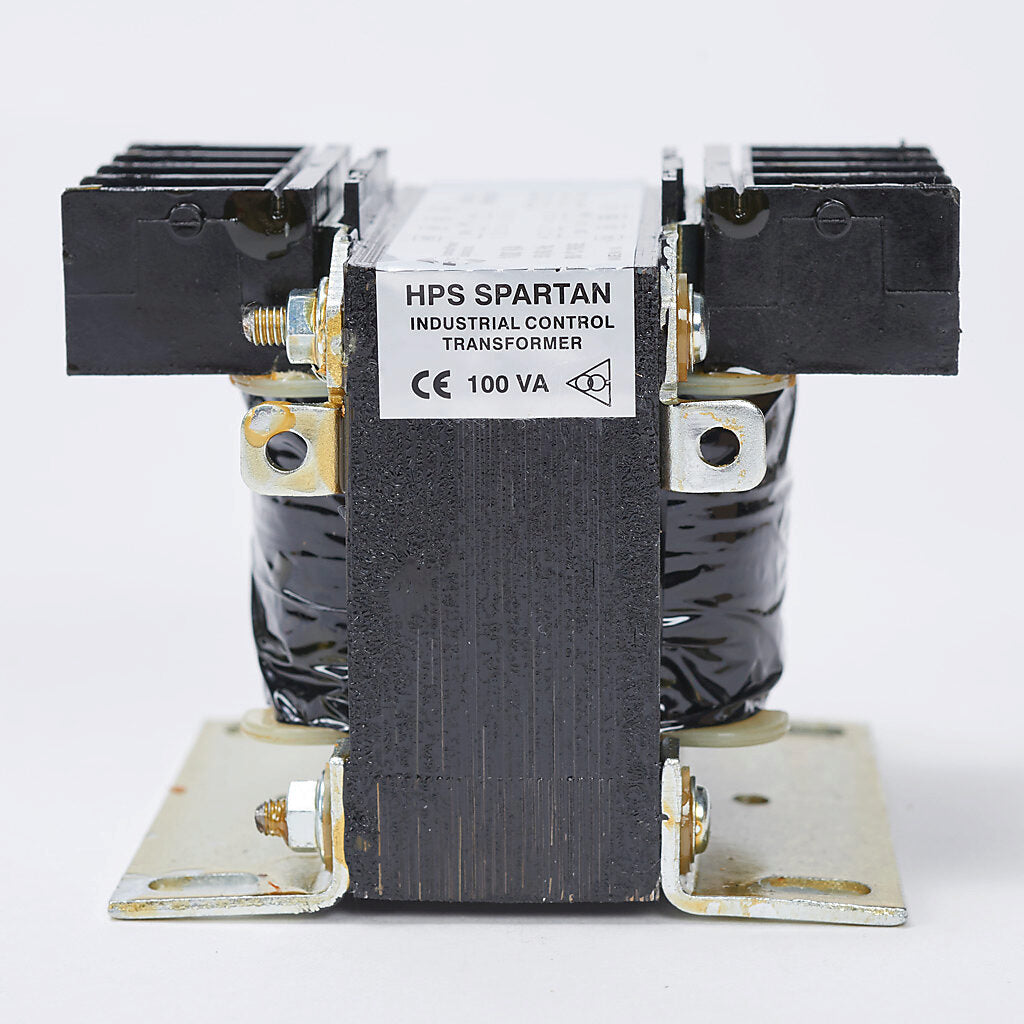

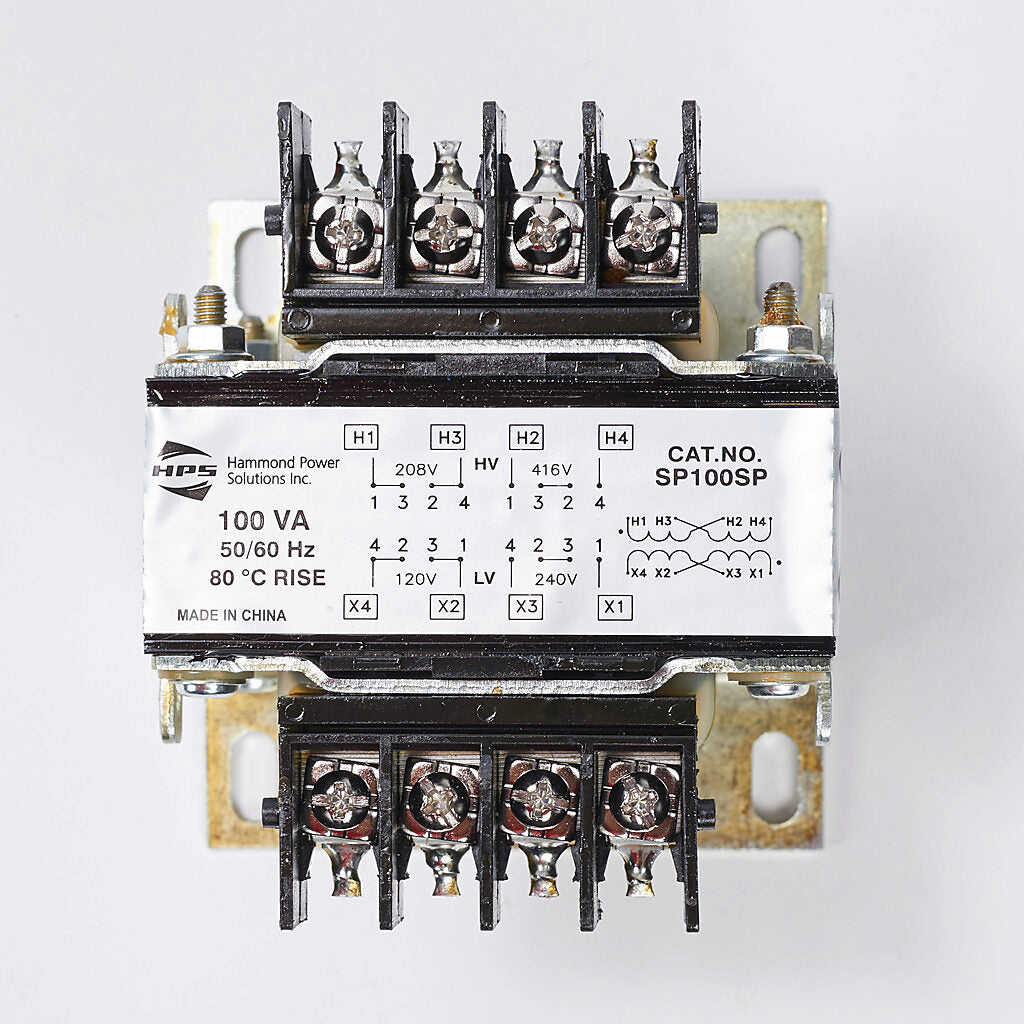

This single-phase core and coil transformer is designed for industrial power distribution applications. It features flexible primary voltage configuration and secondary output for reliable voltage transformation. The unit is constructed with copper windings and meets rigorous seismic compliance standards including OSHPD certification and IBC 2018 requirements. Typical applications include industrial control systems, machinery power supplies, and electrical distribution networks.
Key Features:
✔ Part Number: SP100SP
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 50/60Hz
✔ Primary Voltage: 208x416
✔ Primary Connection: Parallel x Series (Vx2V)
✔ Secondary Voltage: 120x240
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ EKVA: 0.148124
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Nameplate: Standard
✔ Vector Configuration: 180°
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: Yes
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=1
✔ Seismic SDS Value: Sds=2.0
✔ Primary Termination (Std): Terminal Block
✔ UPC: 803423099305
✔ Weight: 3

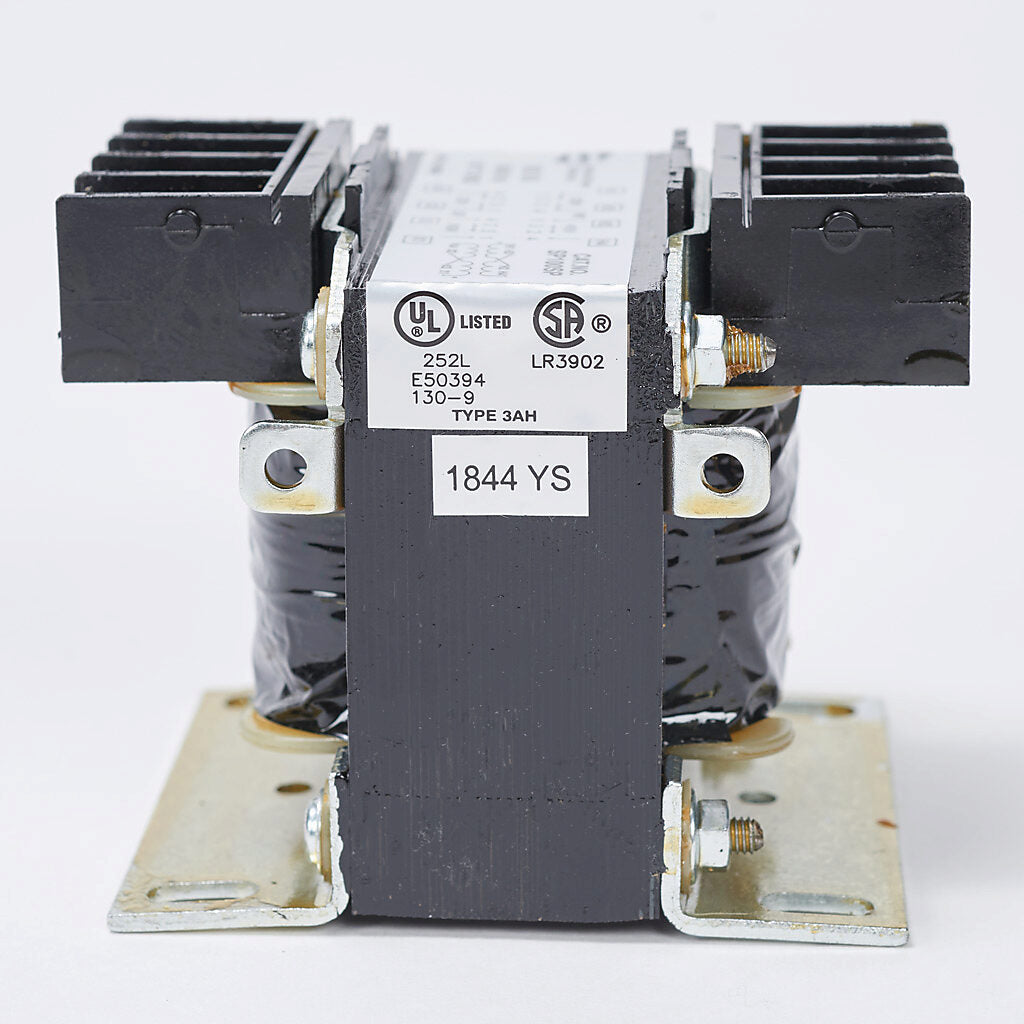

✔ Certification: CSA, UL, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
