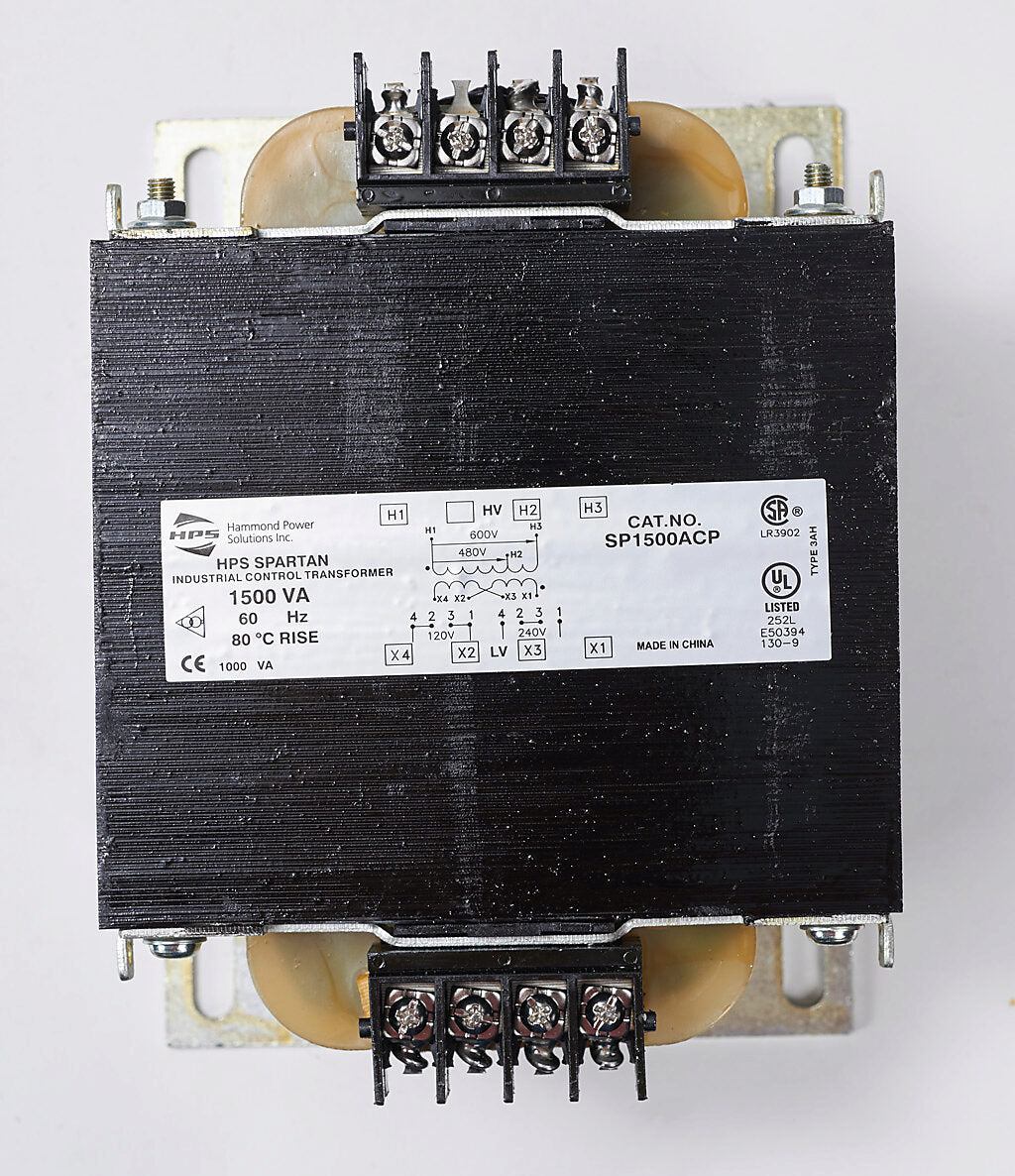

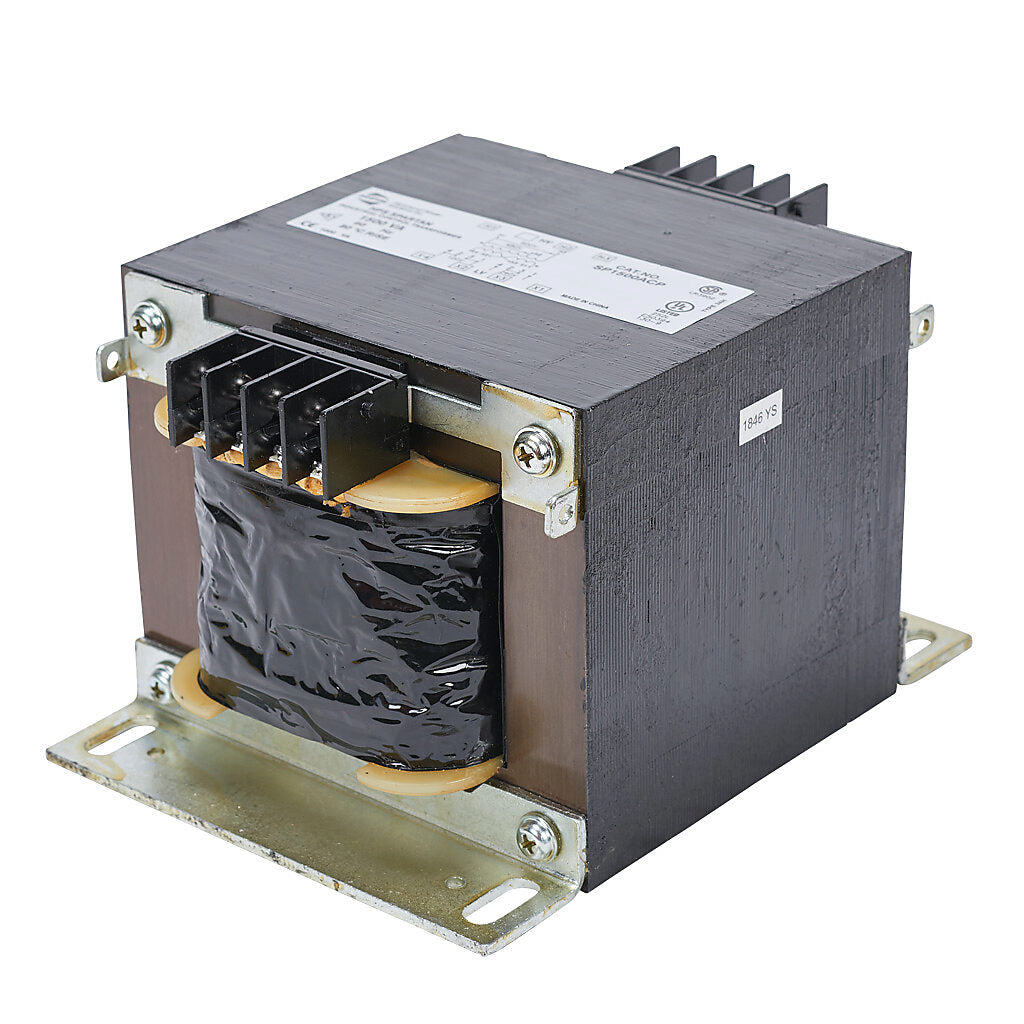

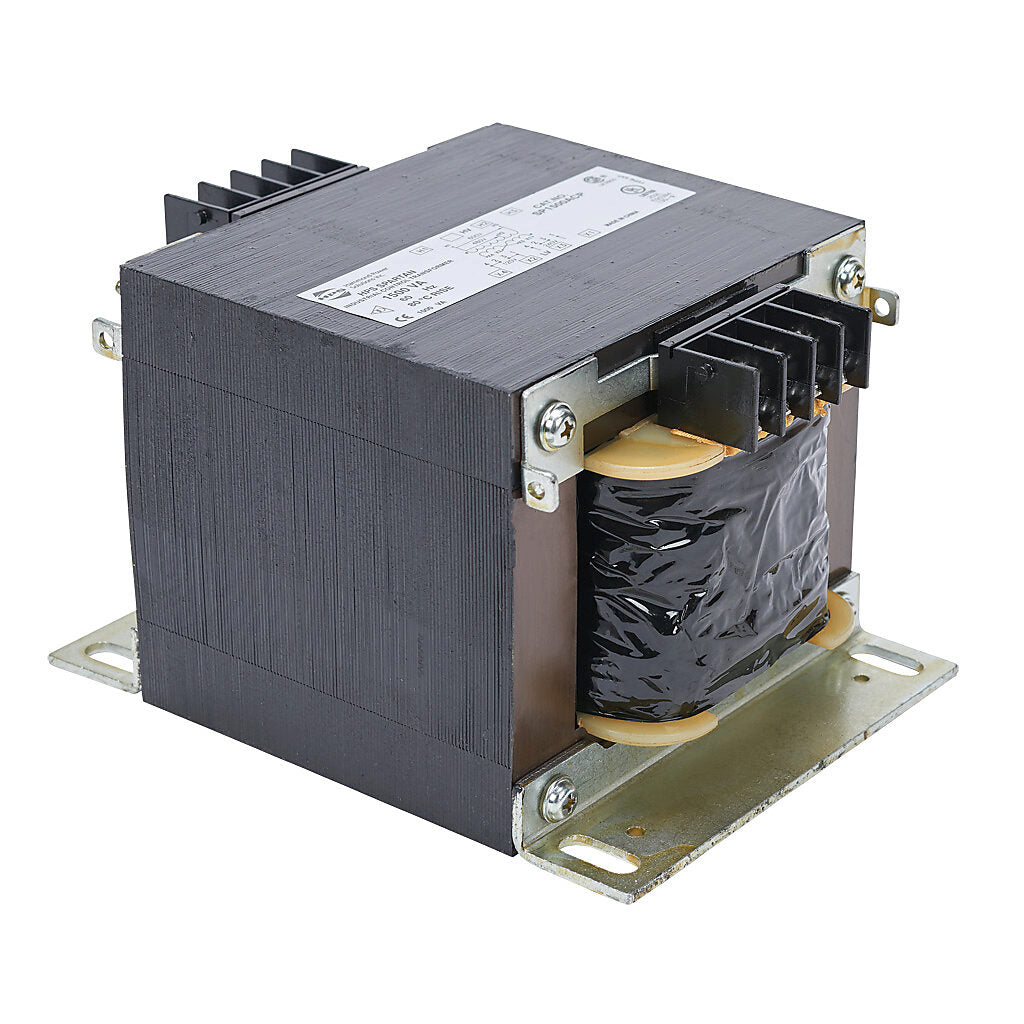

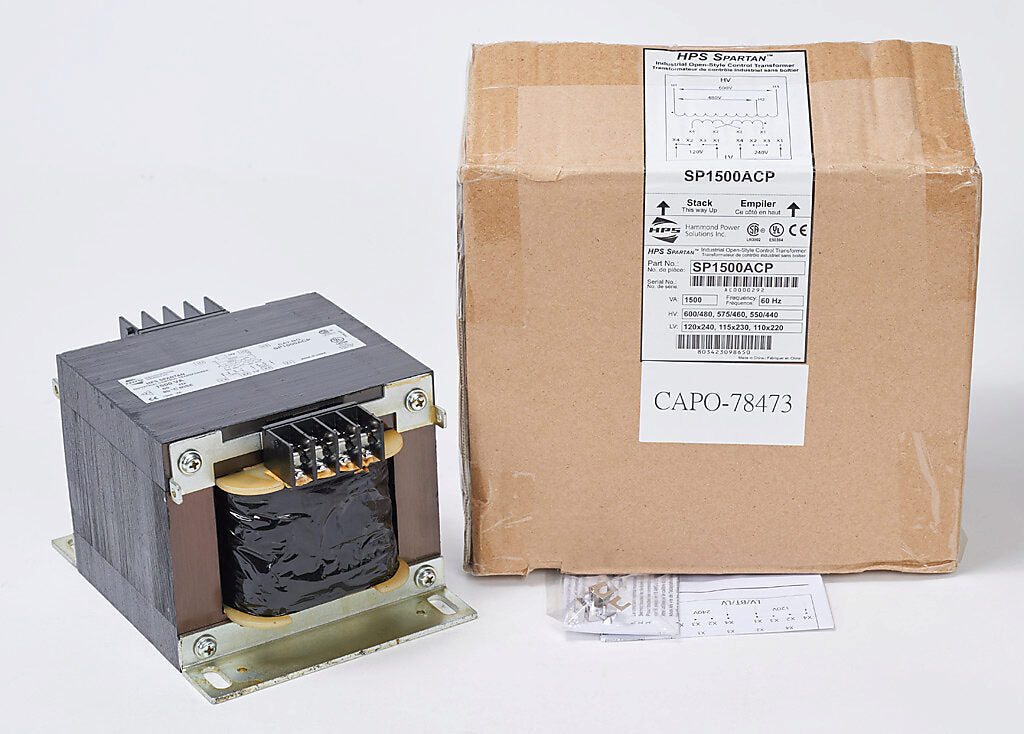

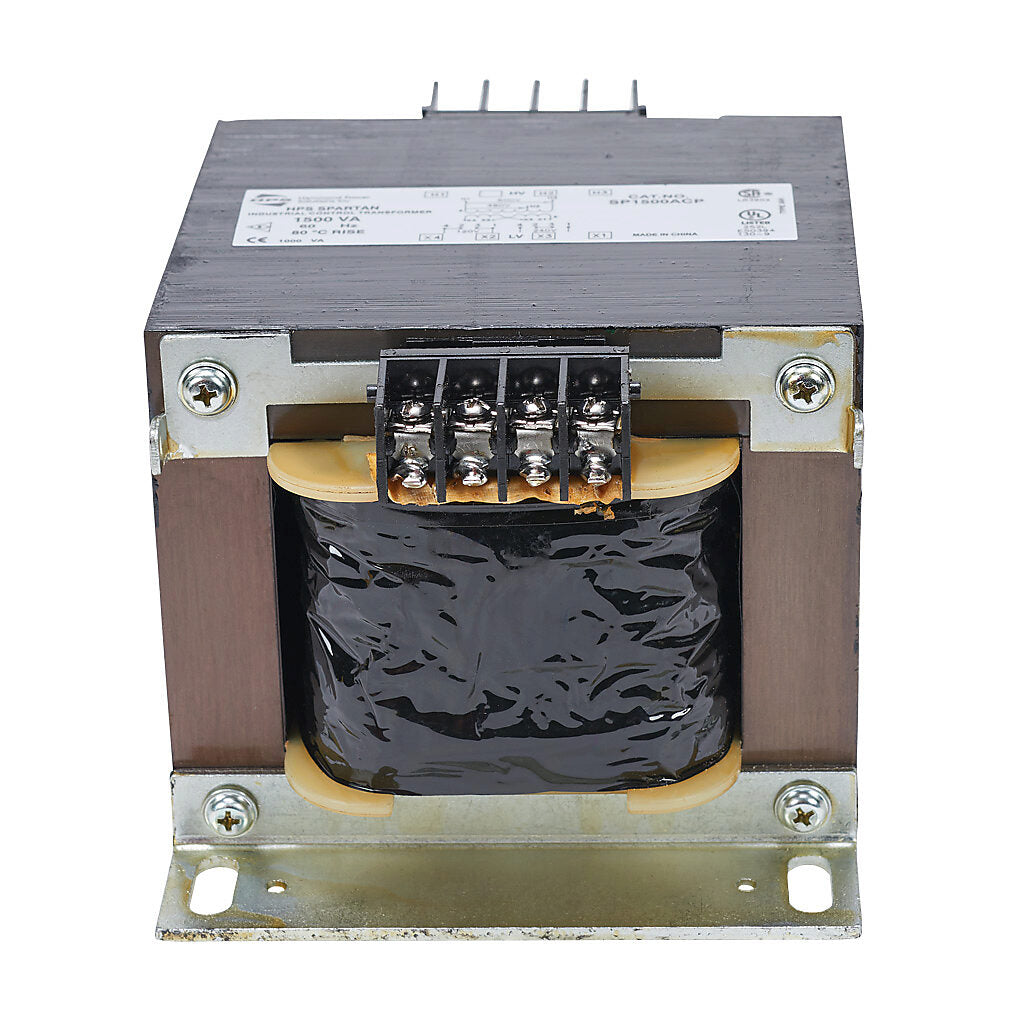

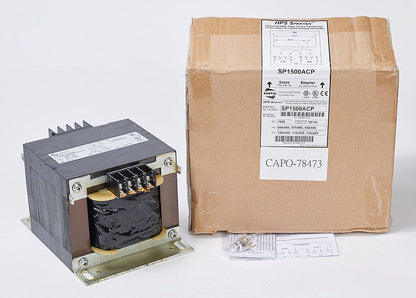

Hammond Power Solutions SP1500ACP Transformer | 600 480V Primary 120x240V Secondary 60Hz
Hammond Power Solutions SP1500ACP Transformer | 600 480V Primary 120x240V Secondary 60Hz
Price:
Sale
Sold out
Regular price
$312.18 USD
Regular price
$459.00 USD
Sale price
$312.18 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
The SP1500ACP is a single-phase transformer designed for reliable power conversion in demanding applications. It features a copper construction and is built to handle high temperatures with an 80°C rise and 130°C insulation class. This transformer meets stringent seismic standards including IBC 2018 and OSHPD compliance, ensuring durability and safety in critical installations.
Key Features:
✔ Part Number: SP1500ACP
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 60Hz
✔ Primary Voltage: 600, 480
✔ Primary Connection: Series (V)
✔ Secondary Voltage: 120x240
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ EKVA: 2.22186
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Nameplate: Standard
✔ Vector Configuration: 180°
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: Yes
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=1
✔ Seismic SDS Value: Sds=2.0
✔ Primary Termination (Std): Terminal Block, Terminal Block
✔ UPC: 803423098650
✔ Weight: 28
✔ Certification: CSA, UL, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
