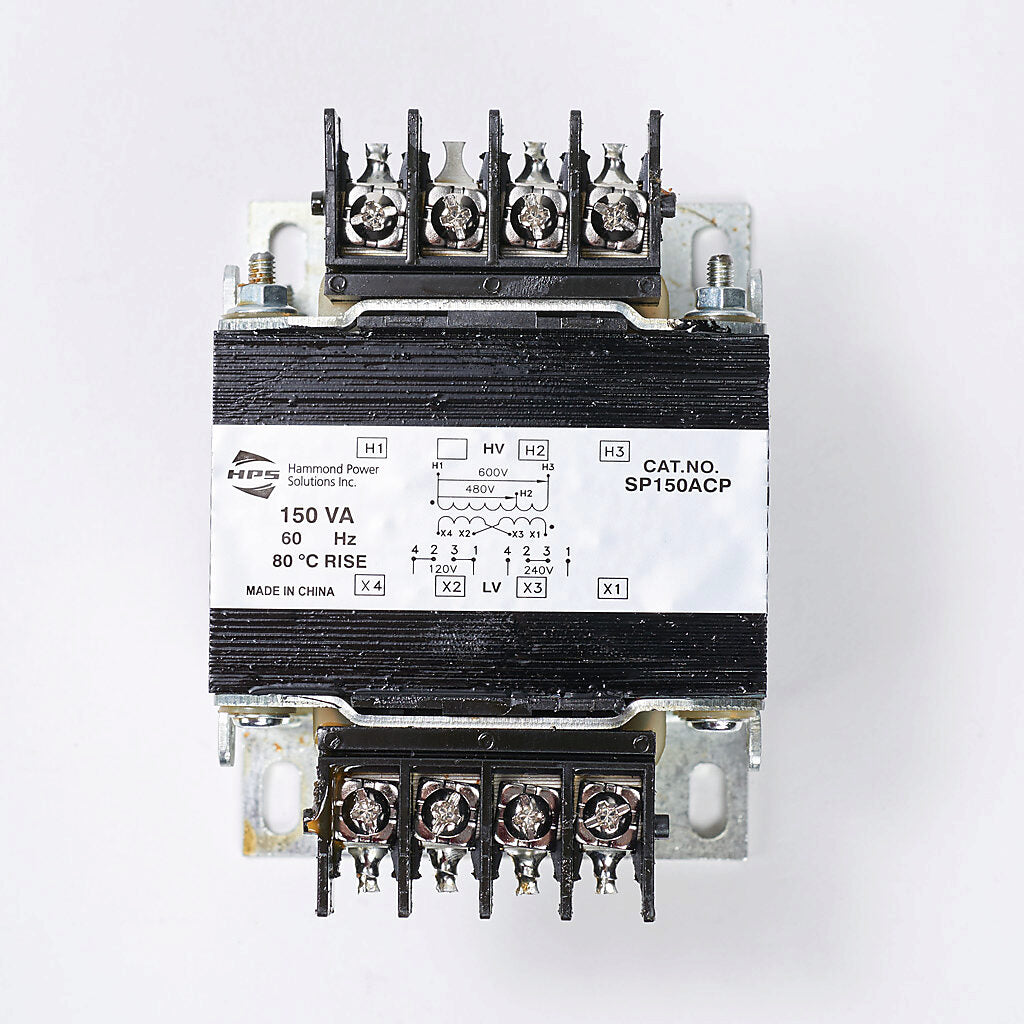

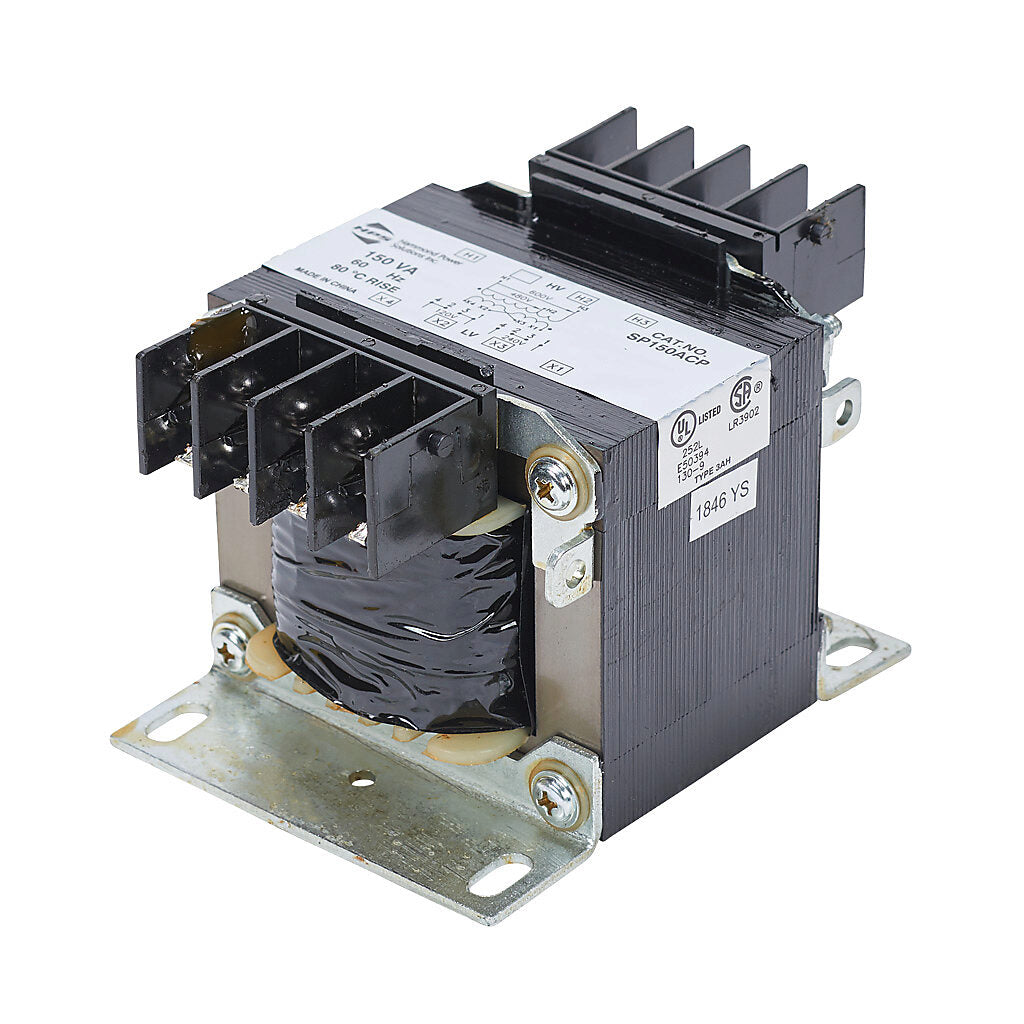

Hammond SP150ACP Transformer | 1 Phase 60Hz 600 480V Primary 120x240V Secondary Copper
Hammond SP150ACP Transformer | 1 Phase 60Hz 600 480V Primary 120x240V Secondary Copper
Price:
Sale
Sold out
Regular price
$66.99 USD
Regular price
$96.00 USD
Sale price
$66.99 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
The SP150ACP is a single-phase transformer designed for industrial applications. It features copper windings and meets seismic compliance standards including OSHPD and IBC 2018. With primary voltage options of 600V or 480V and secondary voltage of 120x240V, it offers versatile connectivity. The transformer is certified by CSA, UL, and CE for safety and performance.
Key Features:
✔ Part Number: SP150ACP
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 60Hz
✔ Primary Voltage: 600, 480
✔ Primary Connection: Series (V)
✔ Secondary Voltage: 120x240
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ EKVA: 0.222186
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Nameplate: Standard
✔ Vector Configuration: 180°
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: Yes
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=1
✔ Seismic SDS Value: Sds=2.0
✔ Primary Termination (Std): Terminal Block, Terminal Block
✔ UPC: 803423098599
✔ Weight: 4
✔ Certification: CSA, UL, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
The SP150ACP is a single-phase transformer designed for industrial applications. It features copper windings and meets seismic compliance standards including OSHPD and IBC 2018. With primary voltage options of 600V or 480V and secondary voltage of 120x240V, it offers versatile connectivity. The transformer is certified by CSA, UL, and CE for safety and performance.
