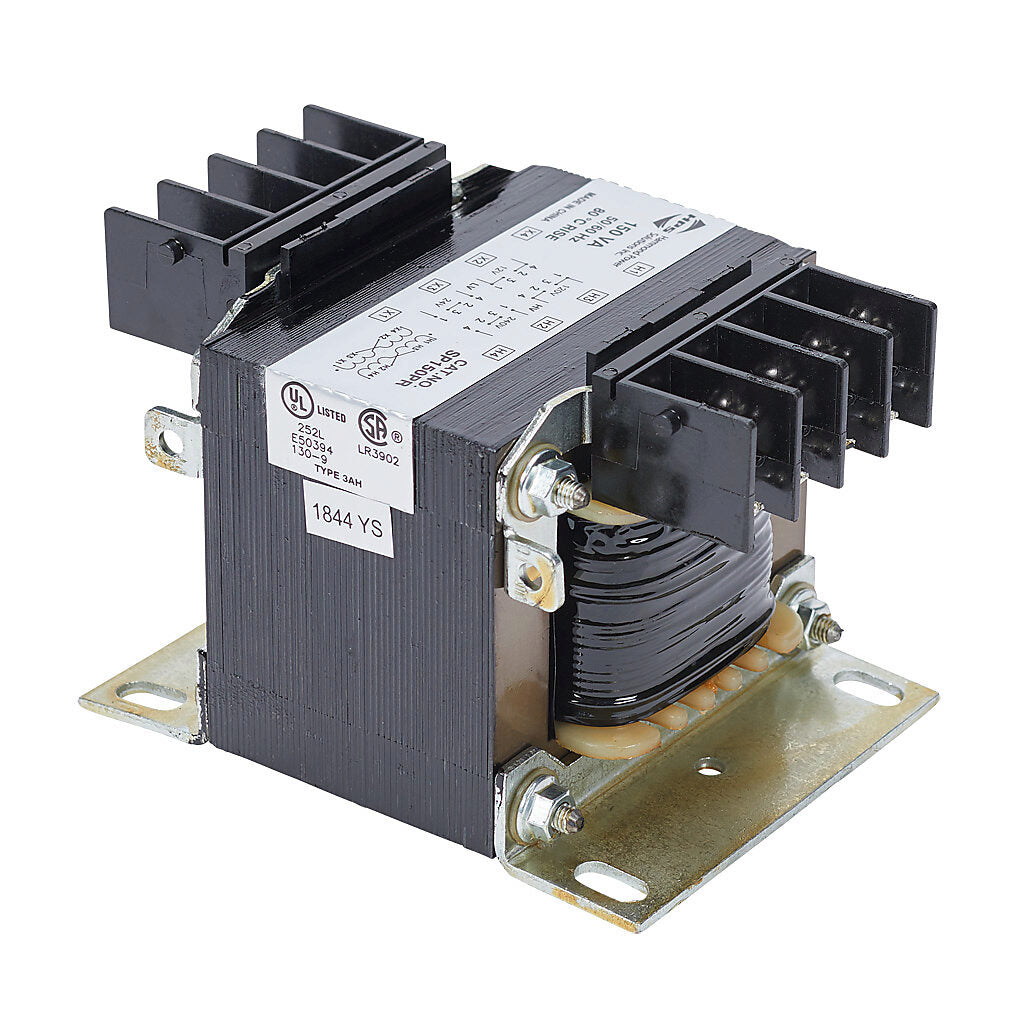

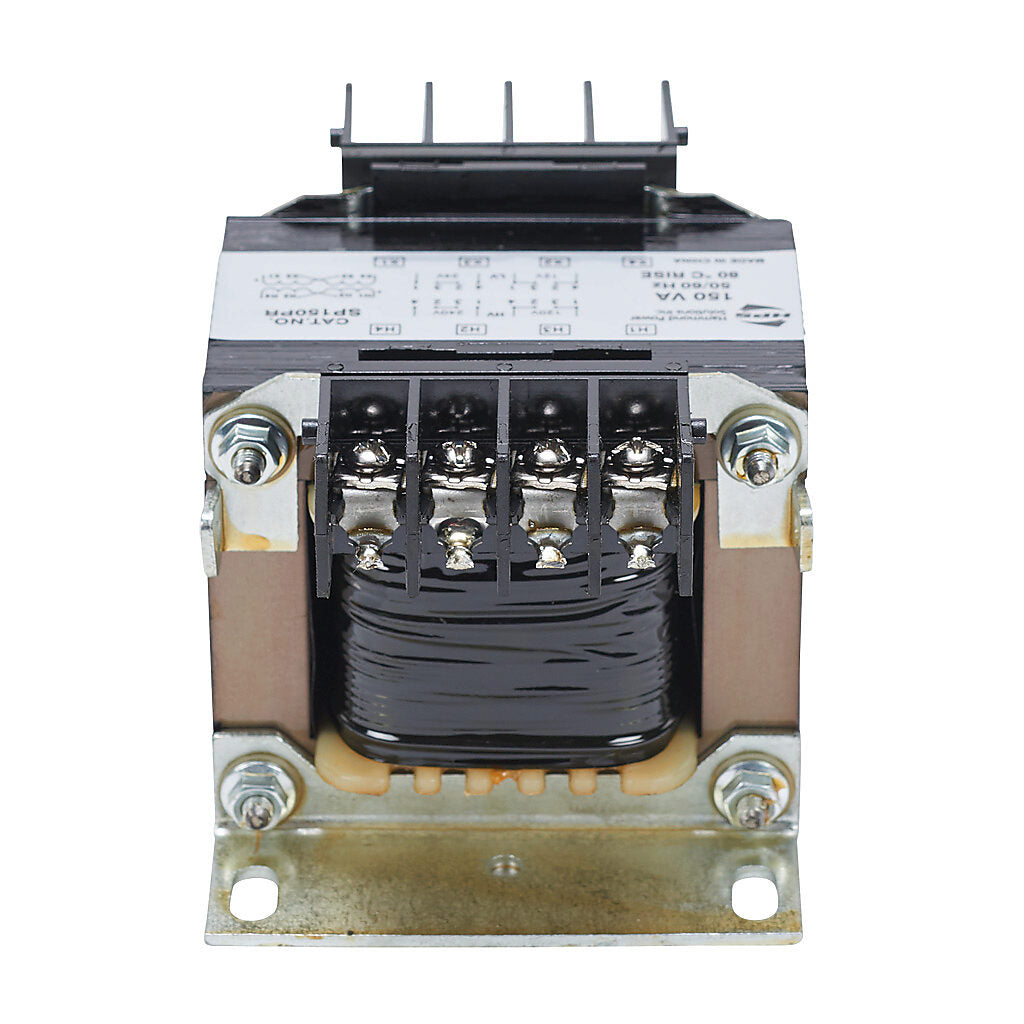

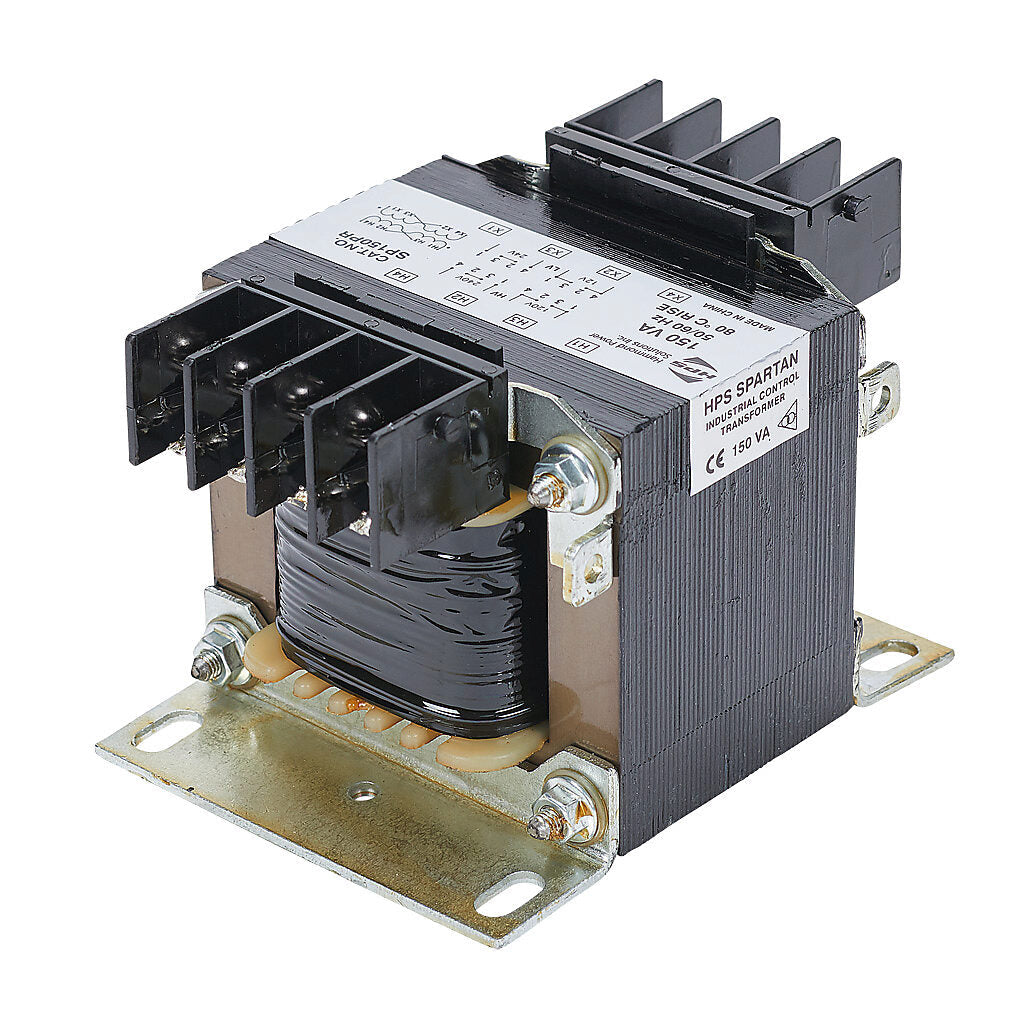

Hammond Power Solutions SP150PR Transformer | 120x240V Primary 12x24V Secondary Seismic Compliant
Hammond Power Solutions SP150PR Transformer | 120x240V Primary 12x24V Secondary Seismic Compliant
Price:
Sale
Sold out
Regular price
$68.39 USD
Regular price
$98.00 USD
Sale price
$68.39 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:

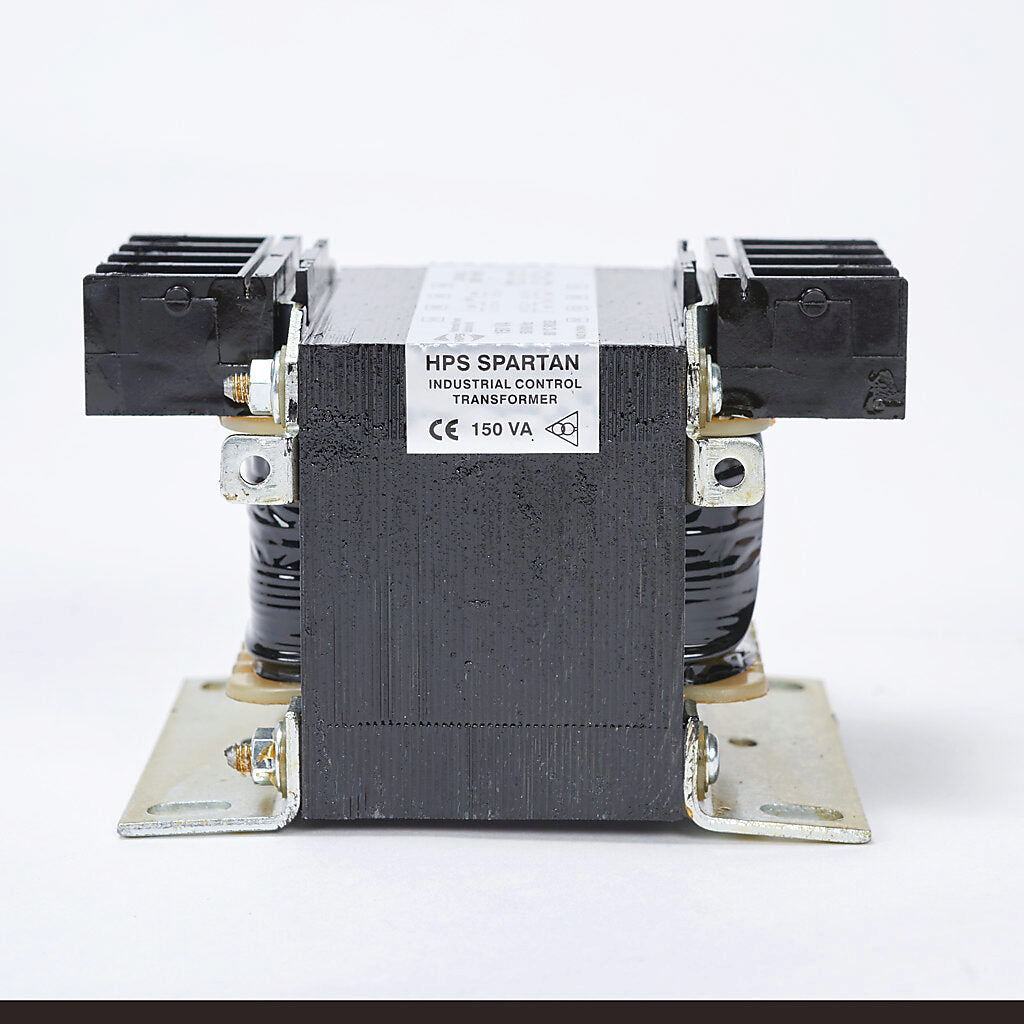

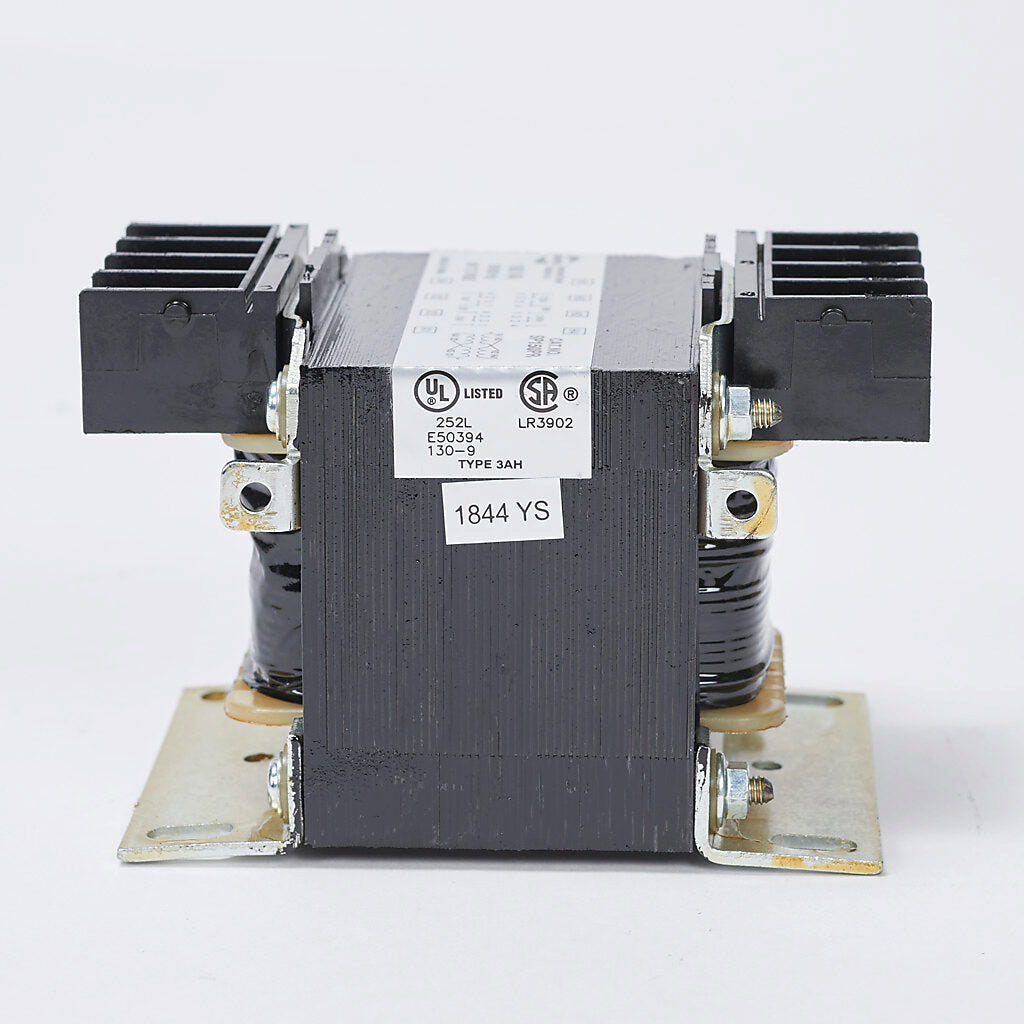

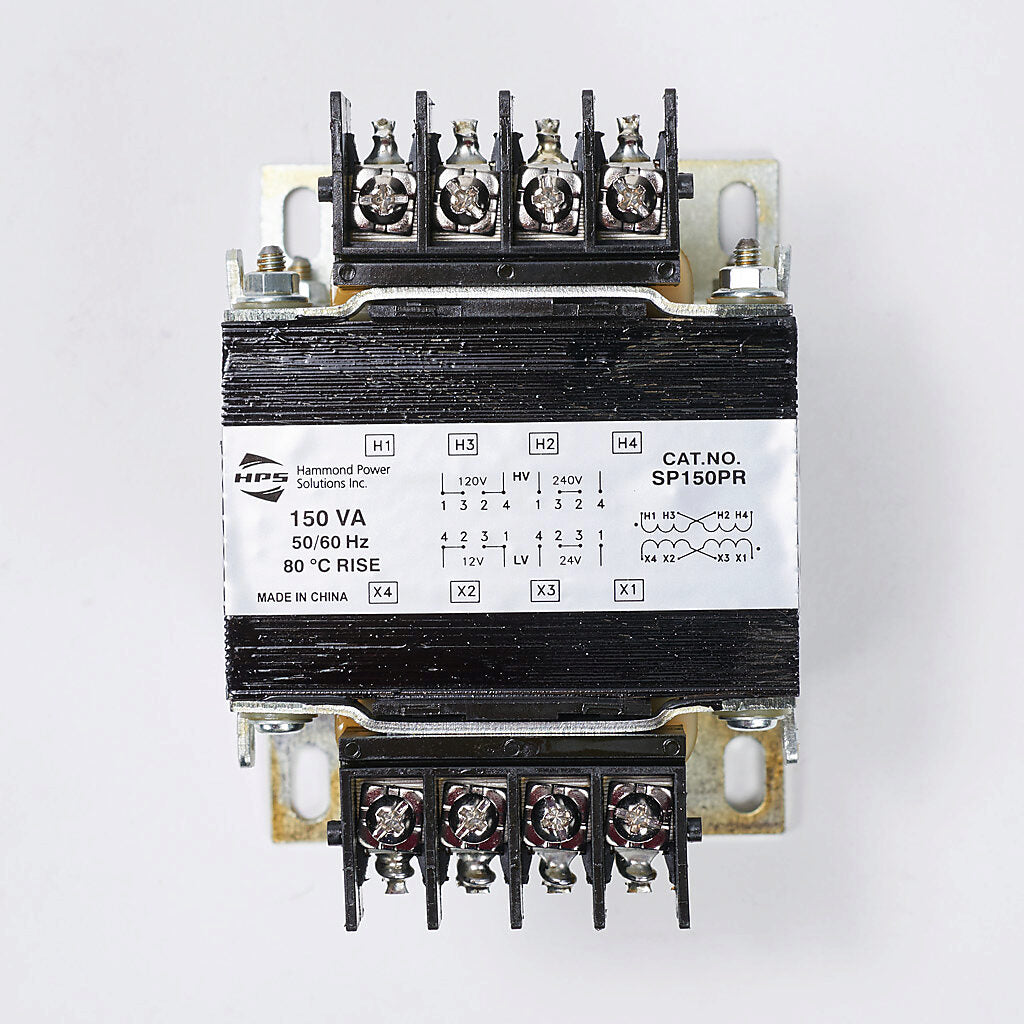

The SP150PR is a single-phase core and coil transformer for industrial power distribution and control systems. It offers flexible primary and secondary voltage configurations with copper windings and operates at 50/60Hz. Built with an 80°C temperature rise and 130°C insulation class, it is designed for reliable performance in demanding environments, including seismically active regions.
Key Features:
✔ Part Number: SP150PR
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 50/60Hz
✔ Primary Voltage: 120x240
✔ Primary Connection: Parallel x Series (Vx2V)
✔ Secondary Voltage: 12x24
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ EKVA: 0.222186
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Nameplate: Standard
✔ Vector Configuration: 180°
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: Yes
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=1
✔ Seismic SDS Value: Sds=2.0
✔ Primary Termination (Std): Terminal Block
✔ UPC: 803423098957
✔ Weight: 4
✔ Certification: CSA, UL, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
