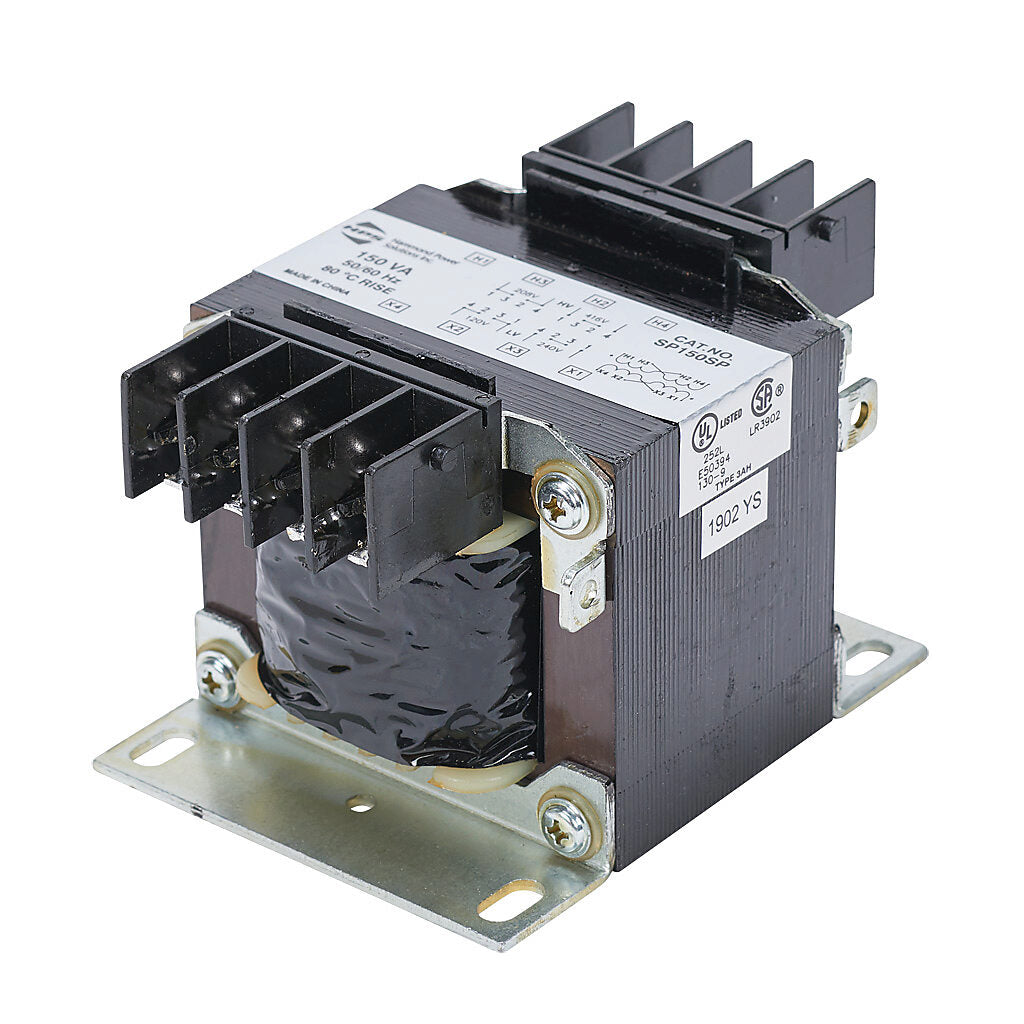

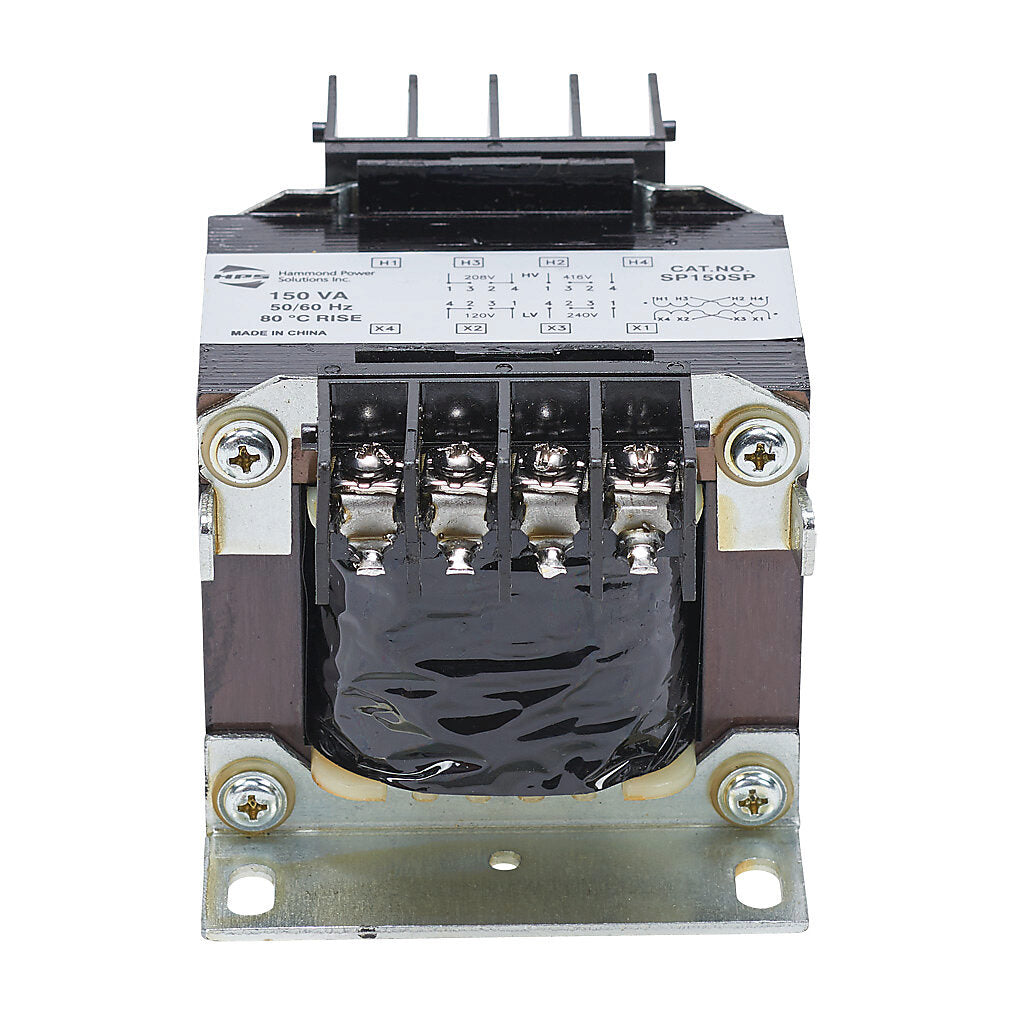

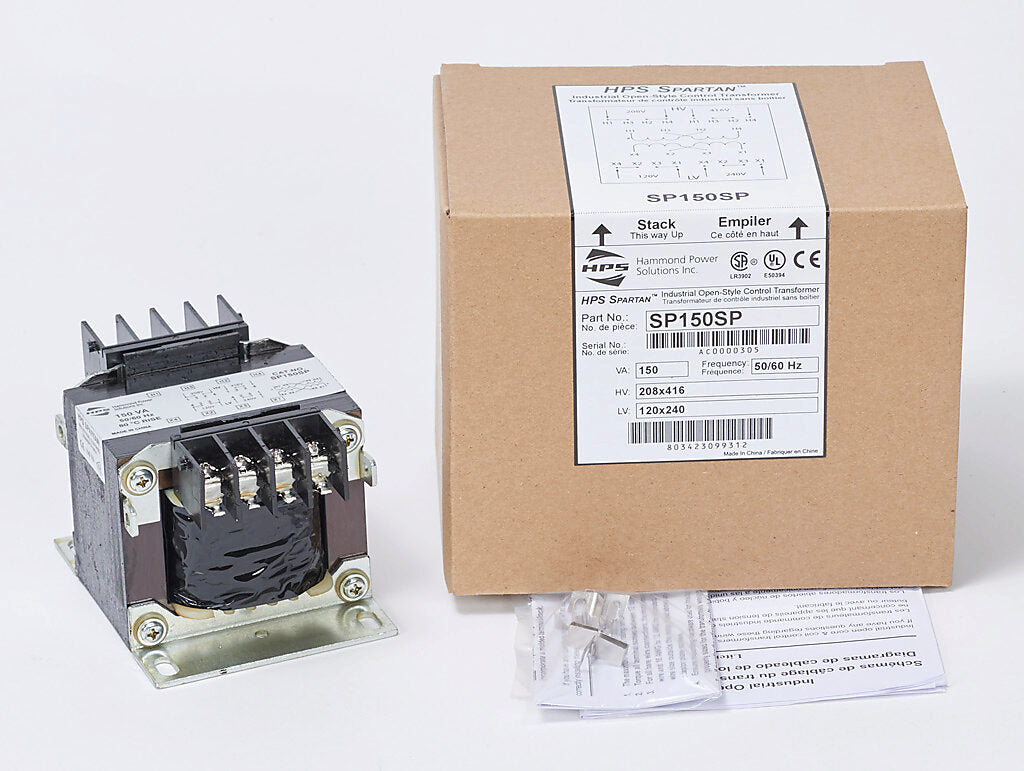

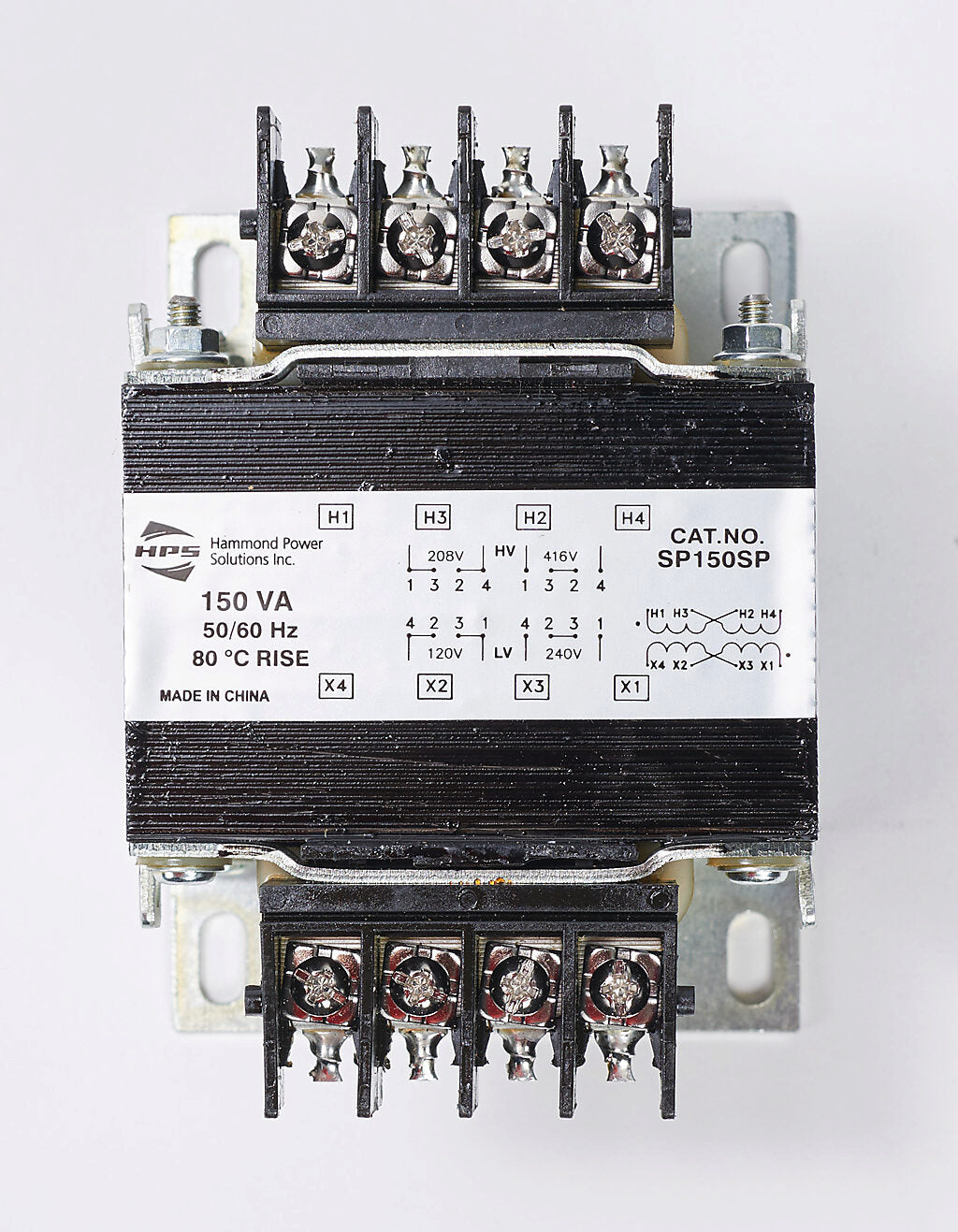

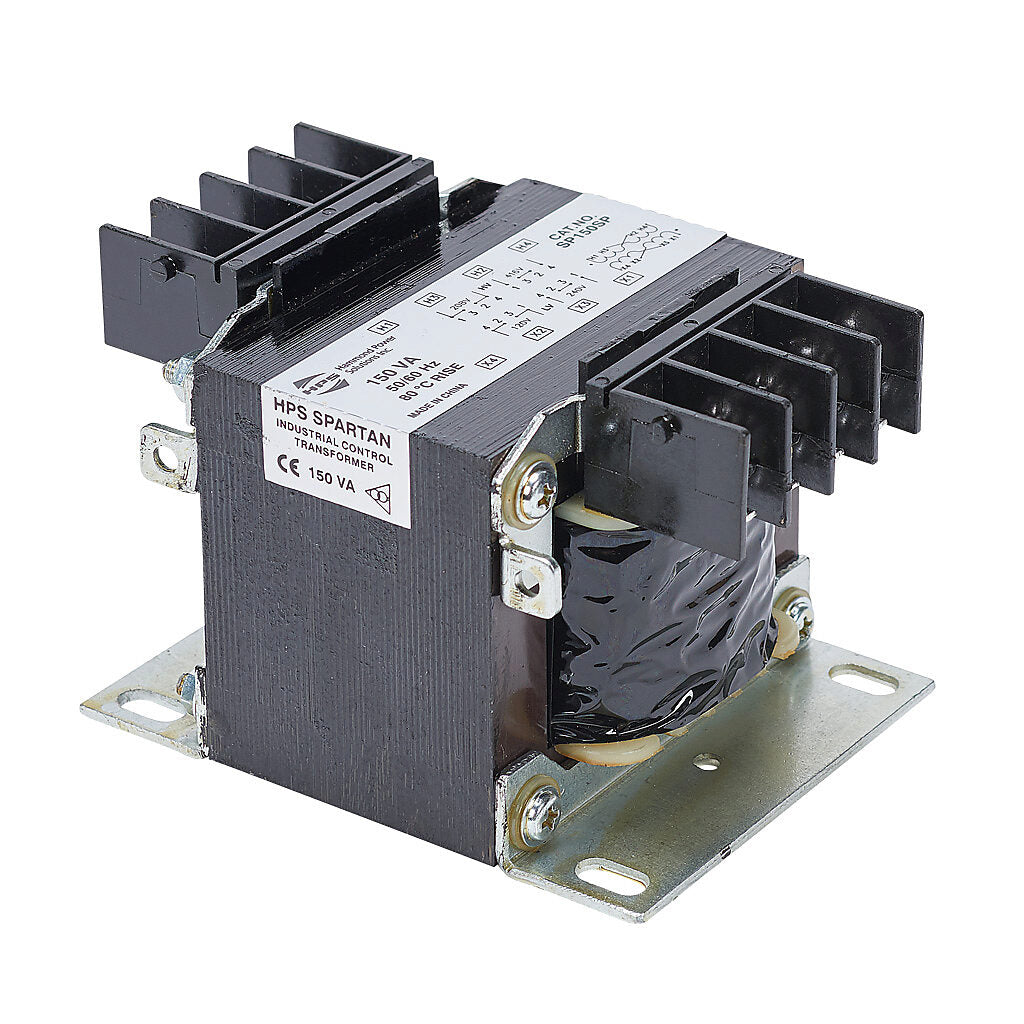

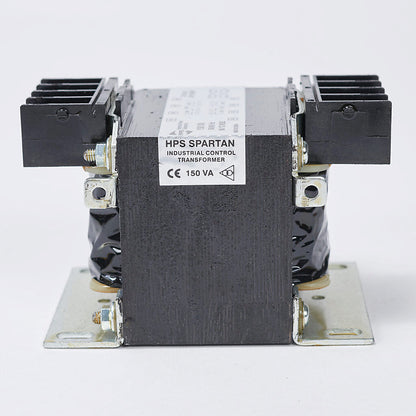

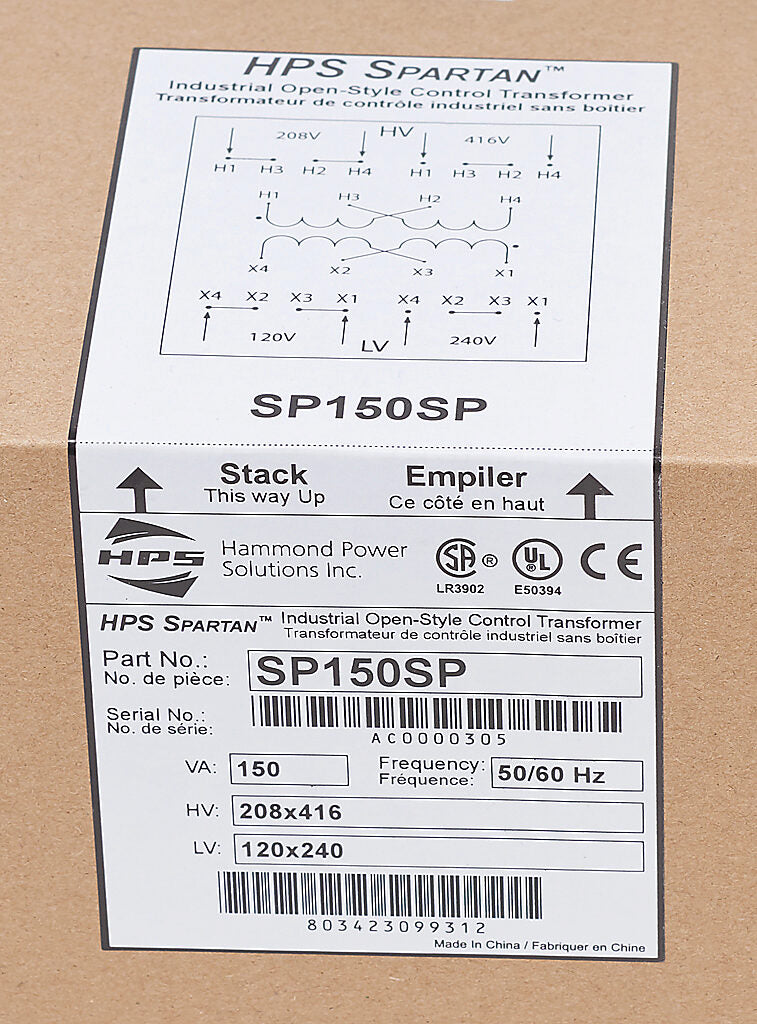

Hammond Power Solutions SP150SP Transformer | Single-Phase 208x416V Seismic Compliant
Hammond Power Solutions SP150SP Transformer | Single-Phase 208x416V Seismic Compliant
Price:
Sale
Sold out
Regular price
$68.39 USD
Regular price
$98.00 USD
Sale price
$68.39 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:

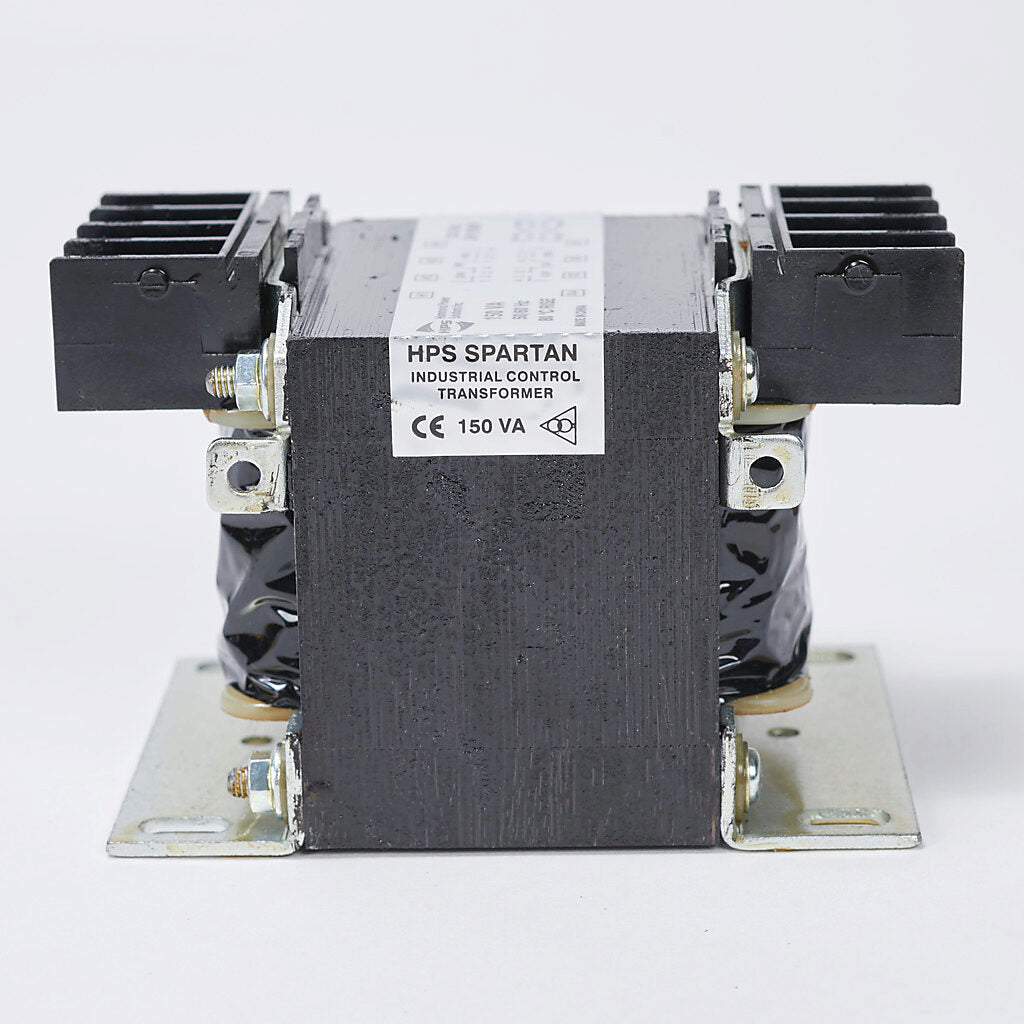

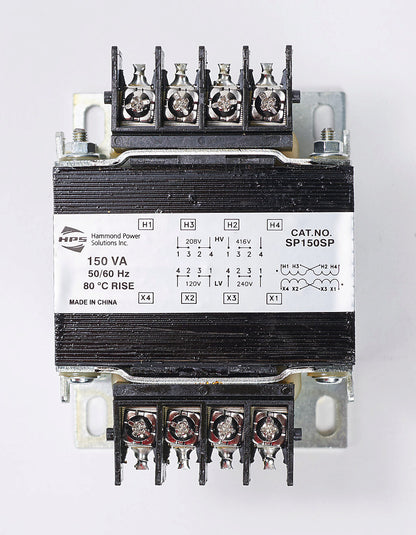

The SP150SP is a single-phase core and coil transformer designed for industrial power distribution. It features primary voltage of 208x416V and secondary voltage of 120x240V, both with parallel x series connection, and operates at 50/60Hz with copper windings. This unit is built with an 80°C temperature rise and 130°C insulation class, and it complies with OSHPD and IBC 2018 seismic standards for structural integrity. It is ideal for industrial control systems, machinery power supplies, and electrical distribution networks.
Key Features:
✔ Part Number: SP150SP
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 50/60Hz
✔ Primary Voltage: 208x416
✔ Primary Connection: Parallel x Series (Vx2V)
✔ Secondary Voltage: 120x240
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ EKVA: 0.222186
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Vector Configuration: 180°
✔ Primary Termination: Terminal Block

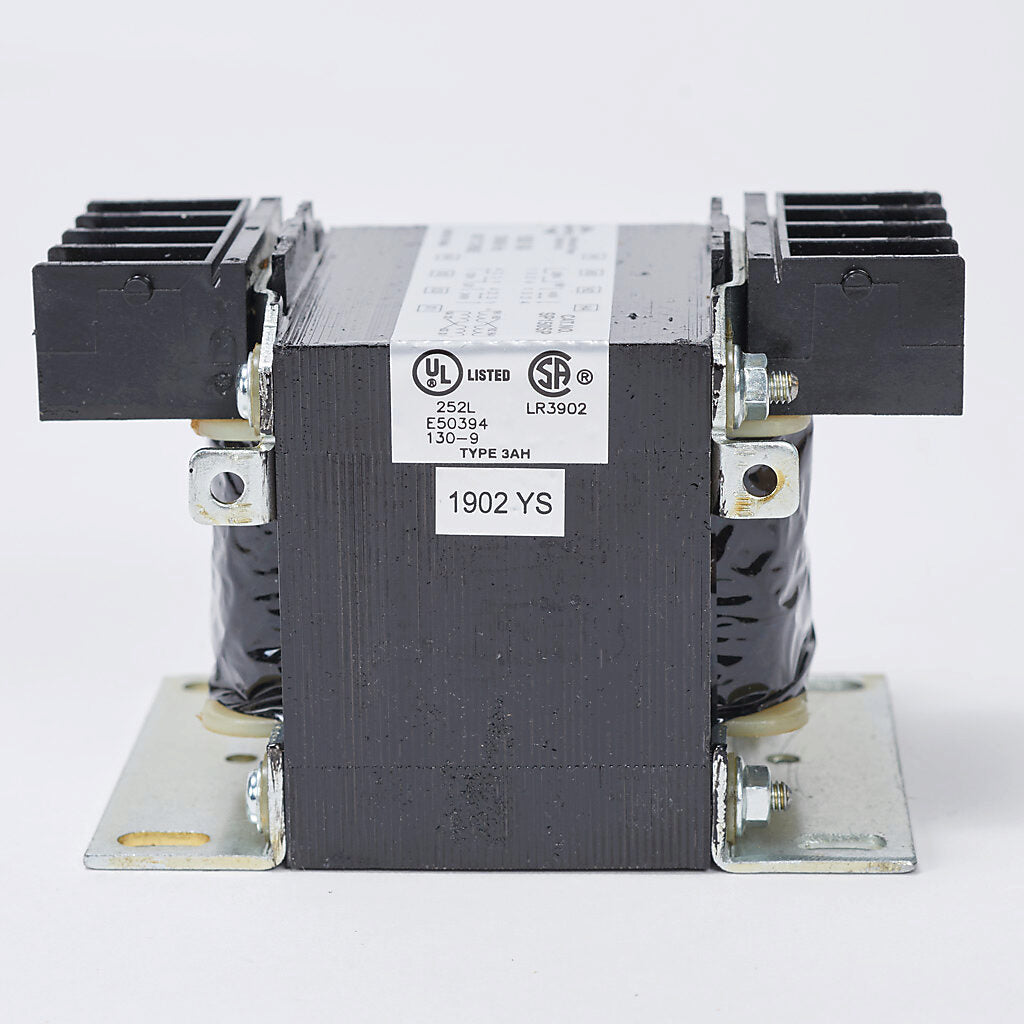

✔ Certification: CSA, UL, CE
✔ UPC: 803423099312
✔ Weight: 4
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
