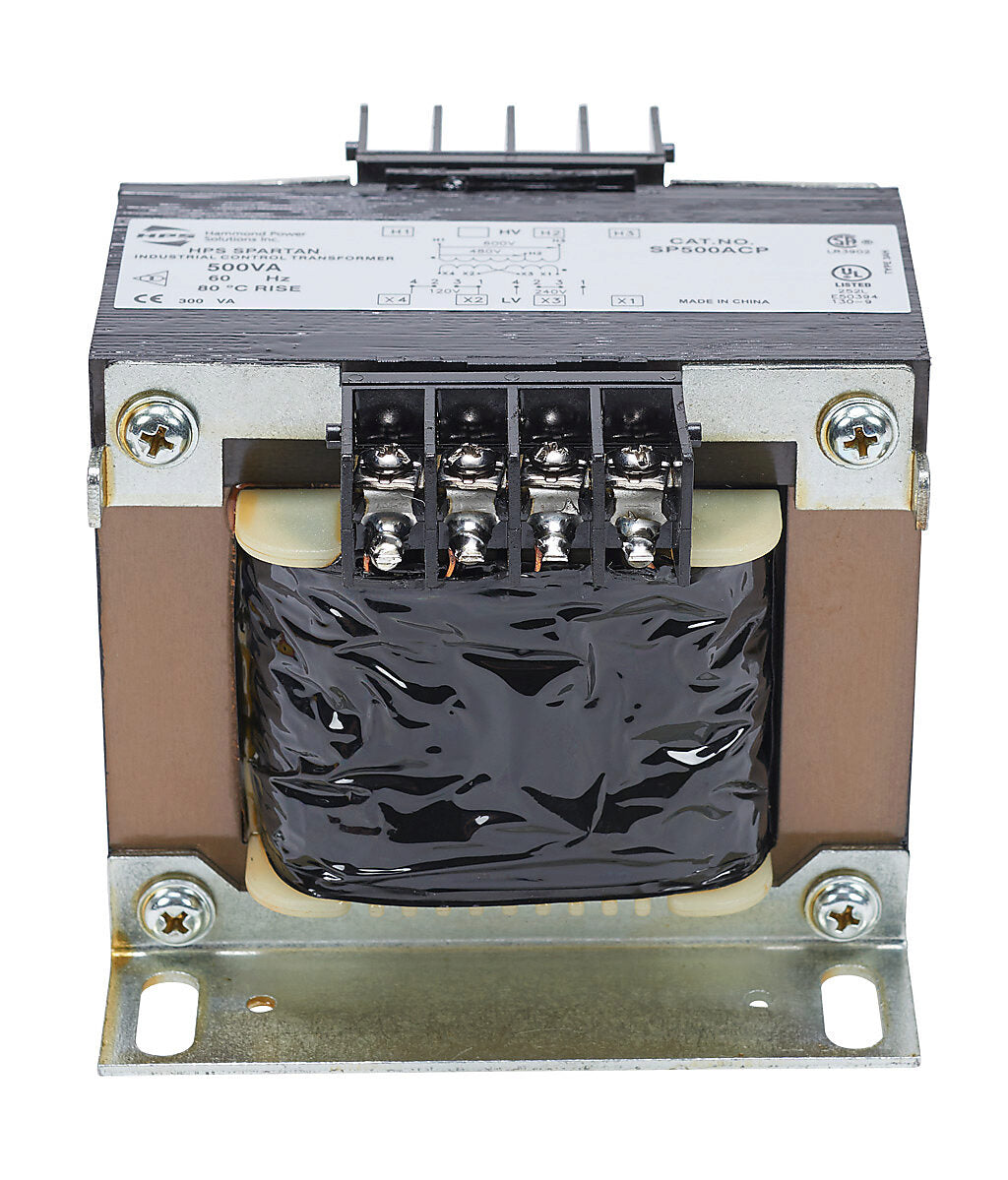

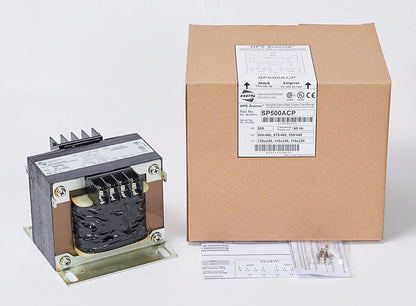

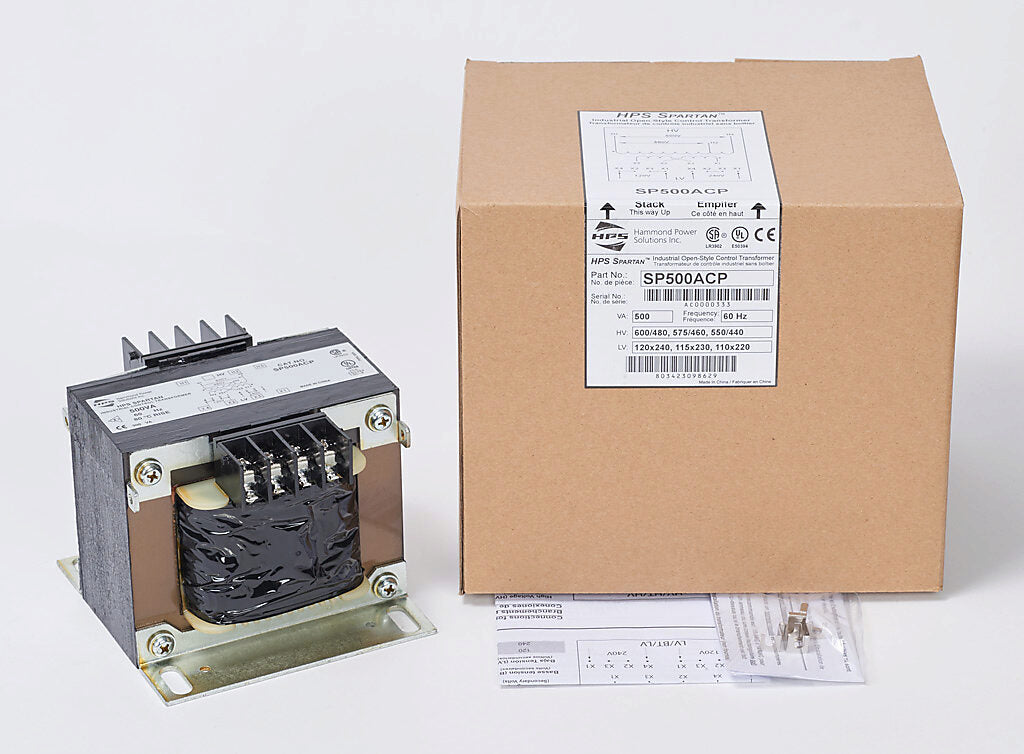

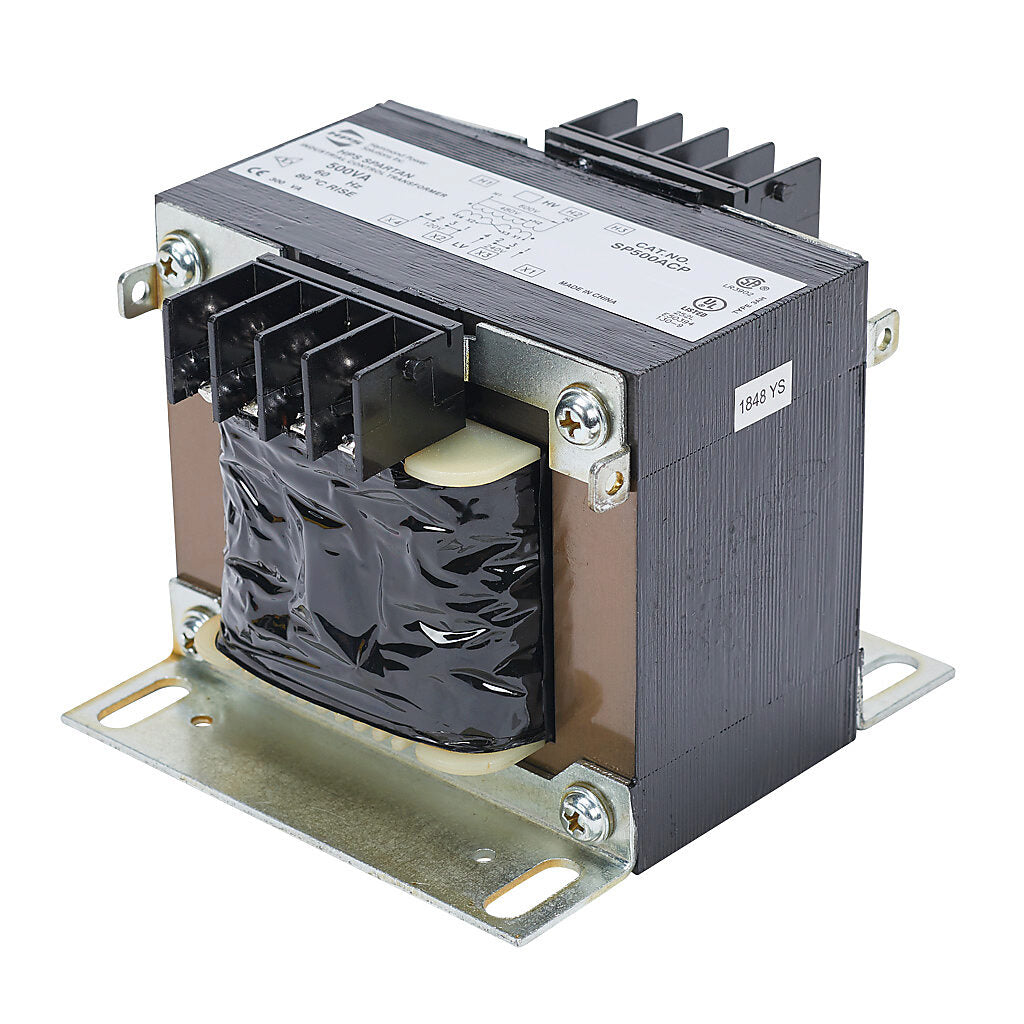

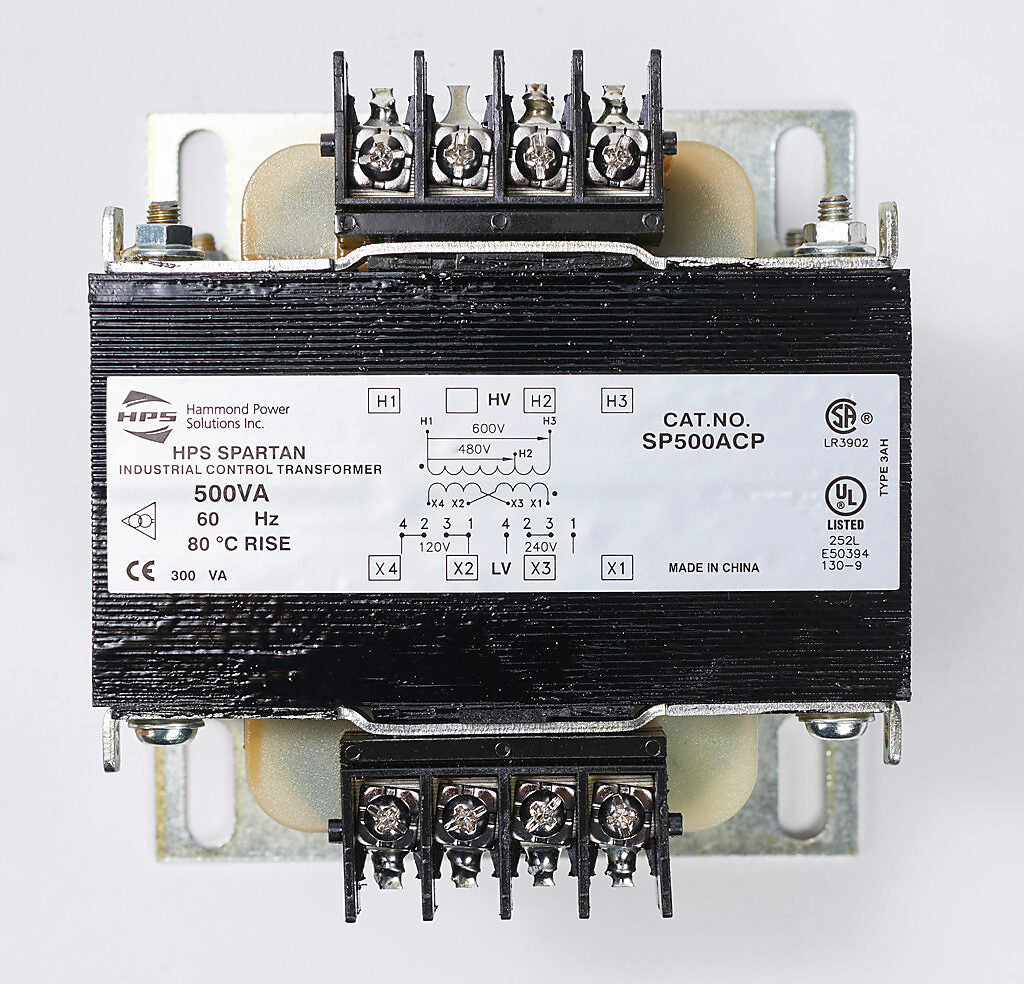

Hammond Power Solutions SP500ACP Transformer 600/480V to 120x240V Seismic Compliant
Hammond Power Solutions SP500ACP Transformer 600/480V to 120x240V Seismic Compliant
Price:
Sale
Sold out
Regular price
$154.97 USD
Regular price
$209.00 USD
Sale price
$154.97 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
This single-phase core and coil transformer is designed for industrial power distribution and control systems. It features dual primary voltage capability and a flexible secondary output configuration for reliable voltage transformation. The unit is built with copper windings and complies with OSHPD and IBC 2018 seismic standards for high seismic zones.
Key Features:
✔ Part Number: SP500ACP
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 60Hz
✔ Primary Voltage: 600, 480
✔ Primary Connection: Series (V)
✔ Secondary Voltage: 120x240
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Vector Configuration: 180°
✔ Primary Termination: Terminal Block
✔ UPC: 803423098629
✔ Weight: 11
✔ Certification: CSA, UL, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
