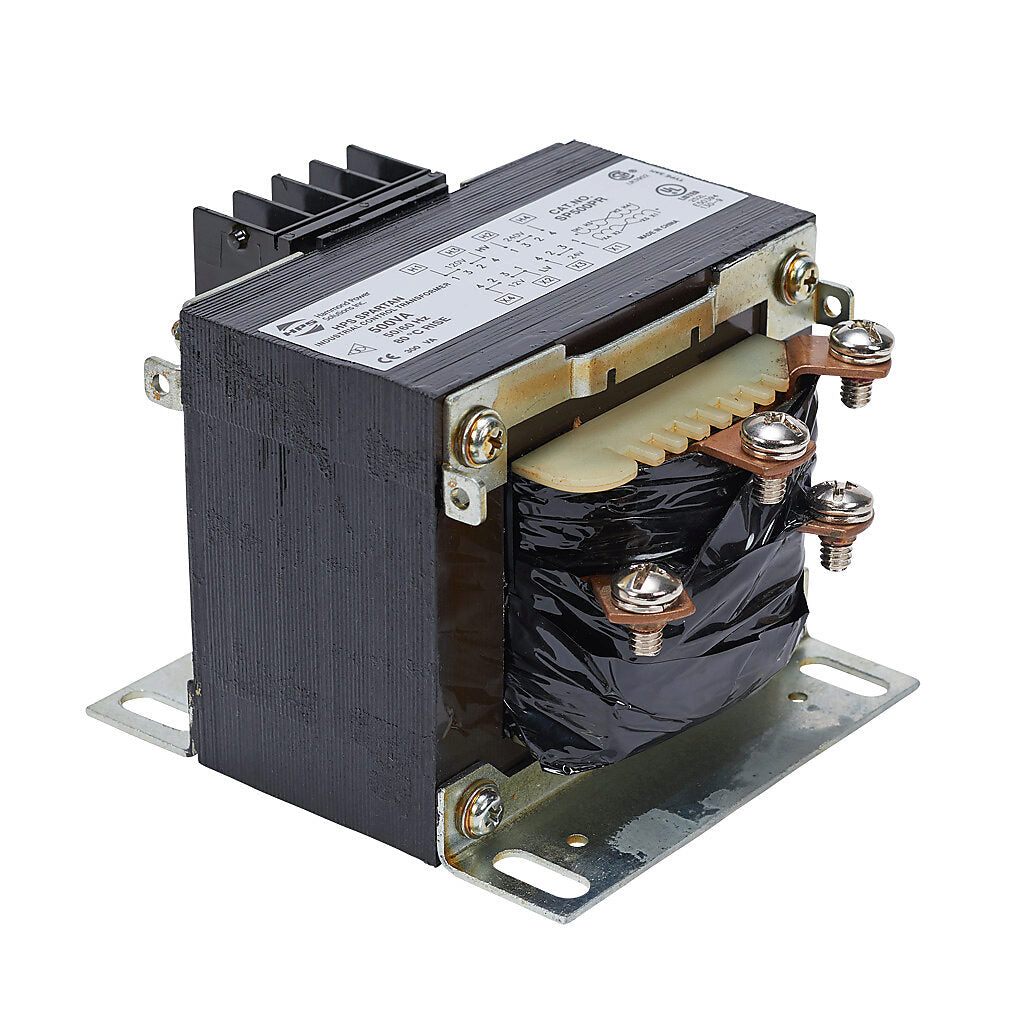

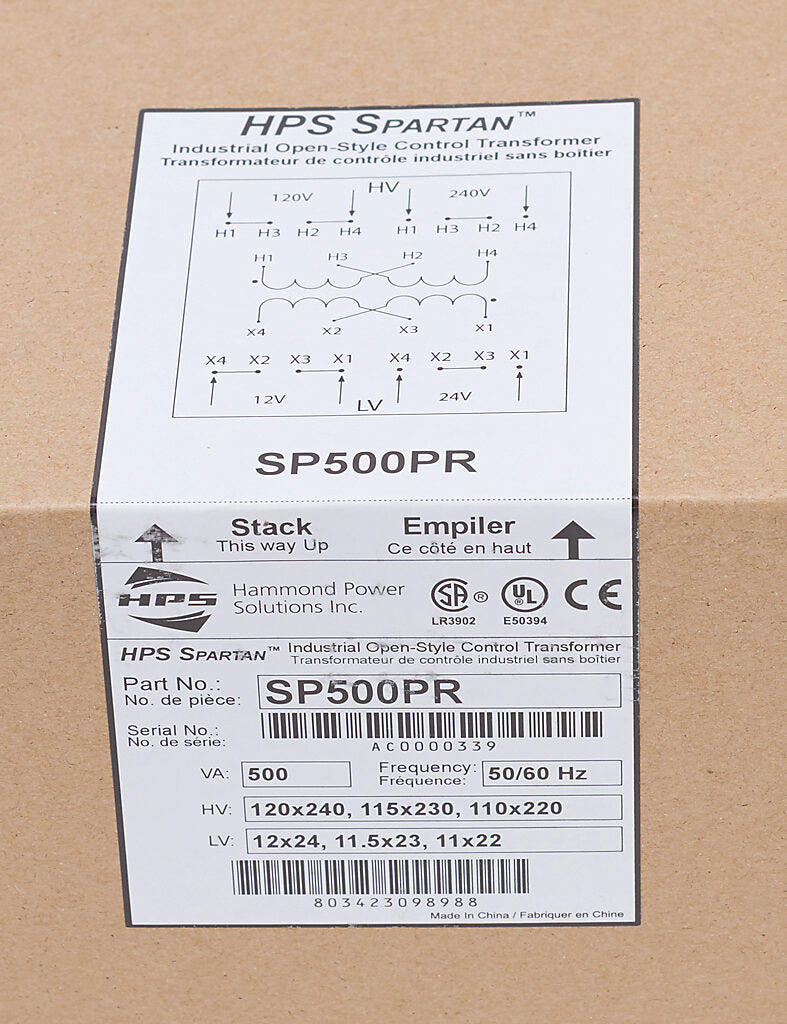

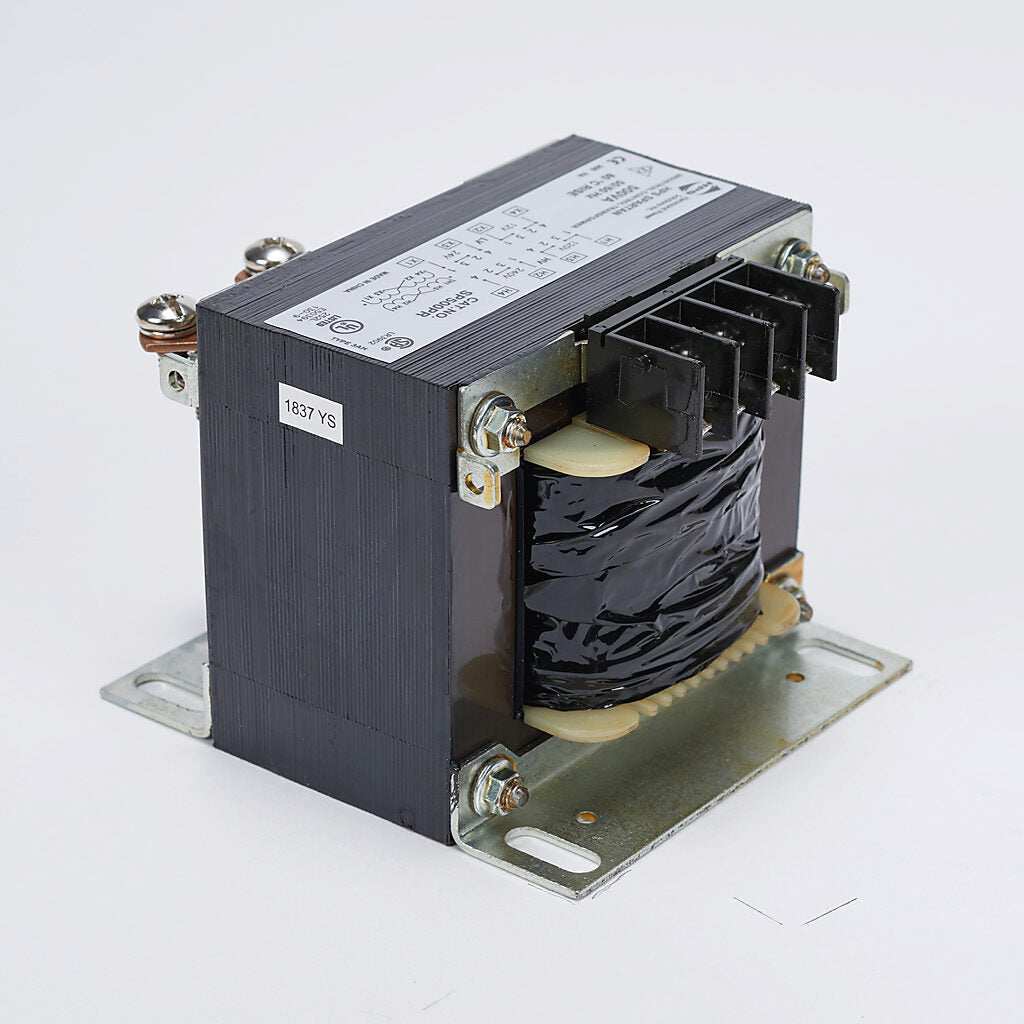

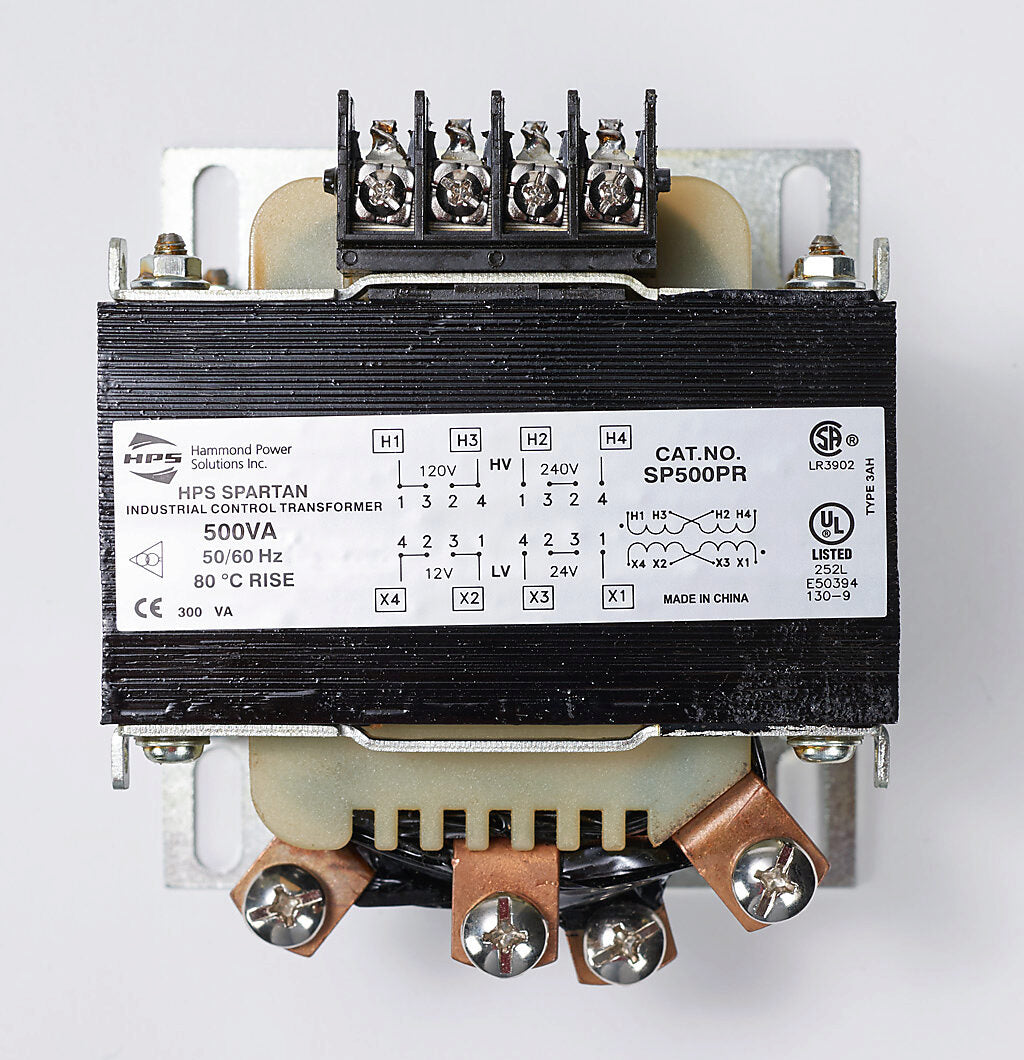

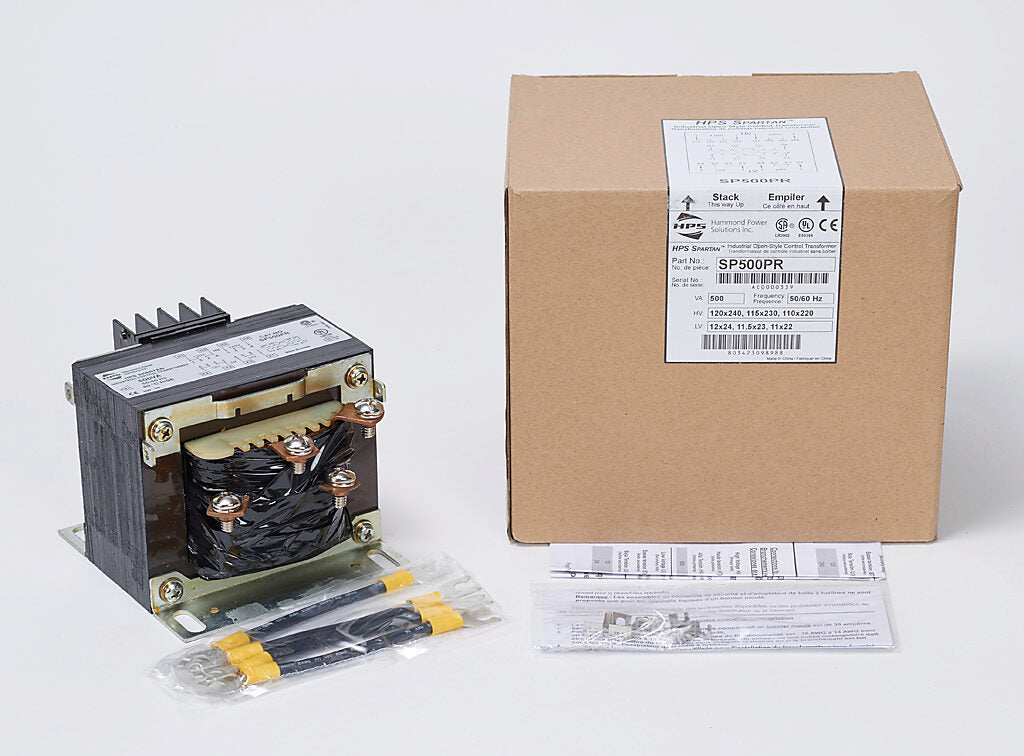

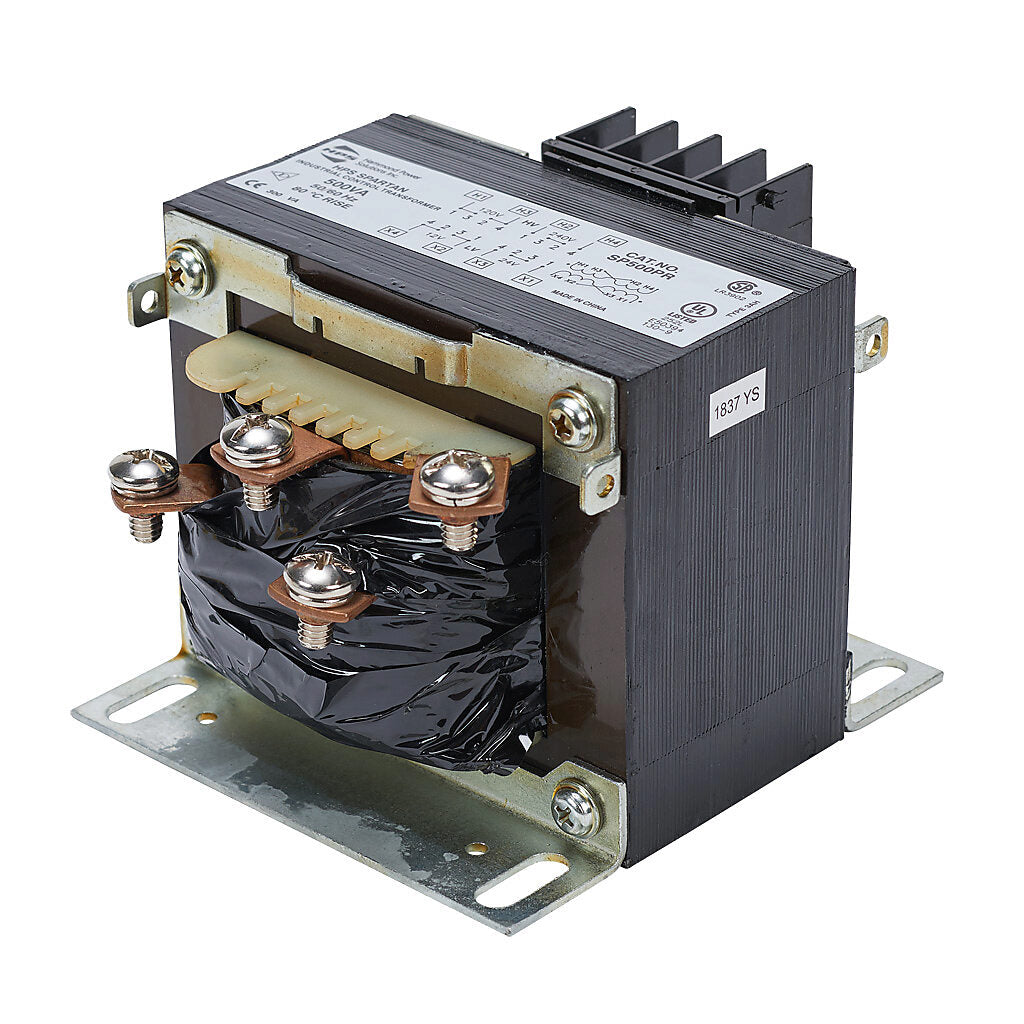

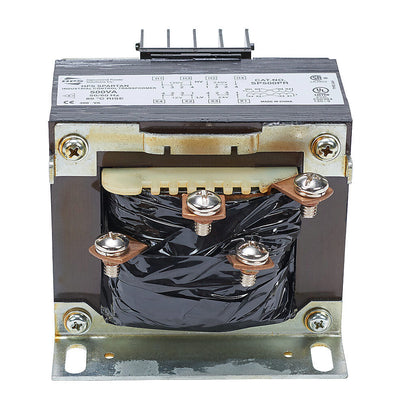

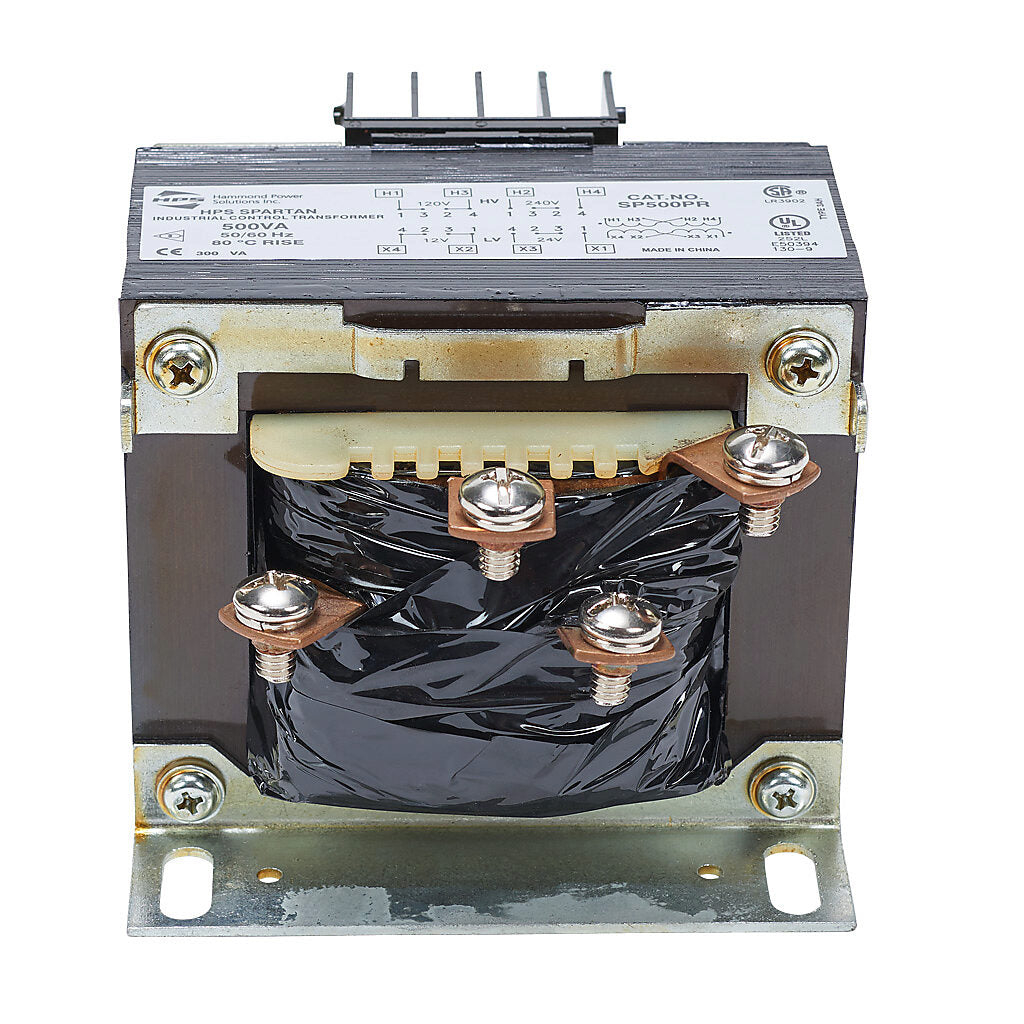

Hammond Power Solutions SP500PR Transformer | 120x240V Primary 12x24V Secondary Seismic Compliant
Hammond Power Solutions SP500PR Transformer | 120x240V Primary 12x24V Secondary Seismic Compliant
Price:
Sale
Sold out
Regular price
$159.15 USD
Regular price
$215.00 USD
Sale price
$159.15 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
The Hammond Power Solutions SP500PR is a single-phase core and coil transformer built for industrial power distribution. It offers flexible primary voltage configurations of 120x240V and secondary outputs of 12x24V, operating at 50/60Hz with copper windings. This transformer is engineered for reliable performance in commercial and industrial environments and meets stringent seismic compliance standards including OSHPD and IBC 2018.
Key Features:
✔ Part Number: SP500PR
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 50/60Hz
✔ Primary Voltage: 120x240
✔ Primary Connection: Parallel x Series (Vx2V)
✔ Secondary Voltage: 12x24
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ EKVA: 0.740621
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Vector Configuration: 180°
✔ Primary Termination (Std): Terminal Block
✔ UPC: 803423098988
✔ Weight: 11
✔ Certification: CSA, UL, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
