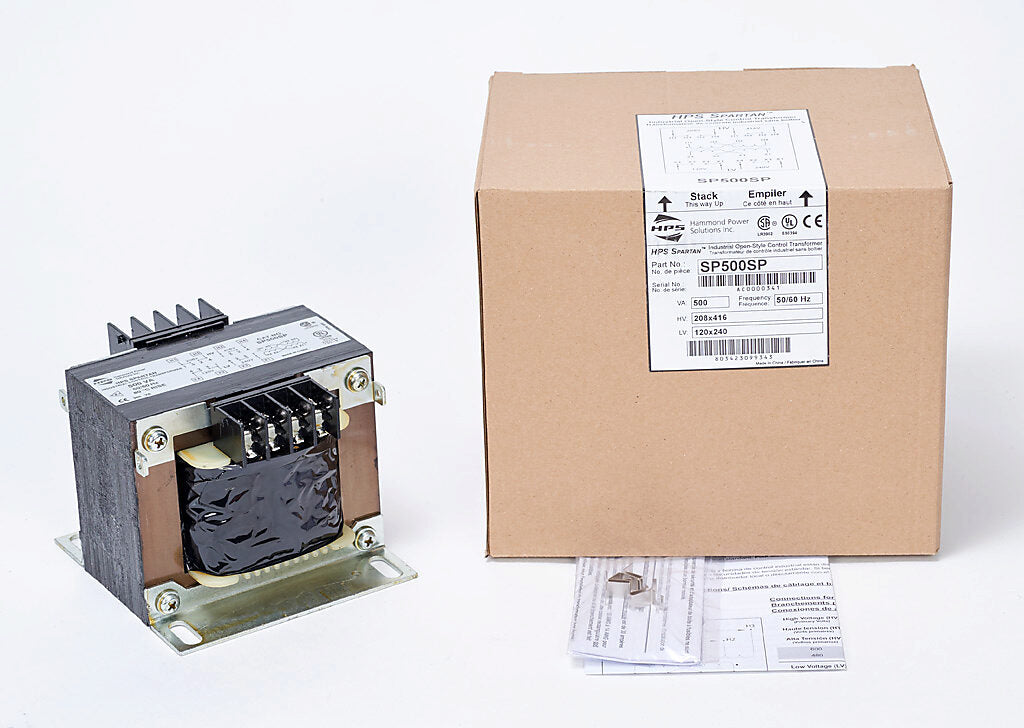

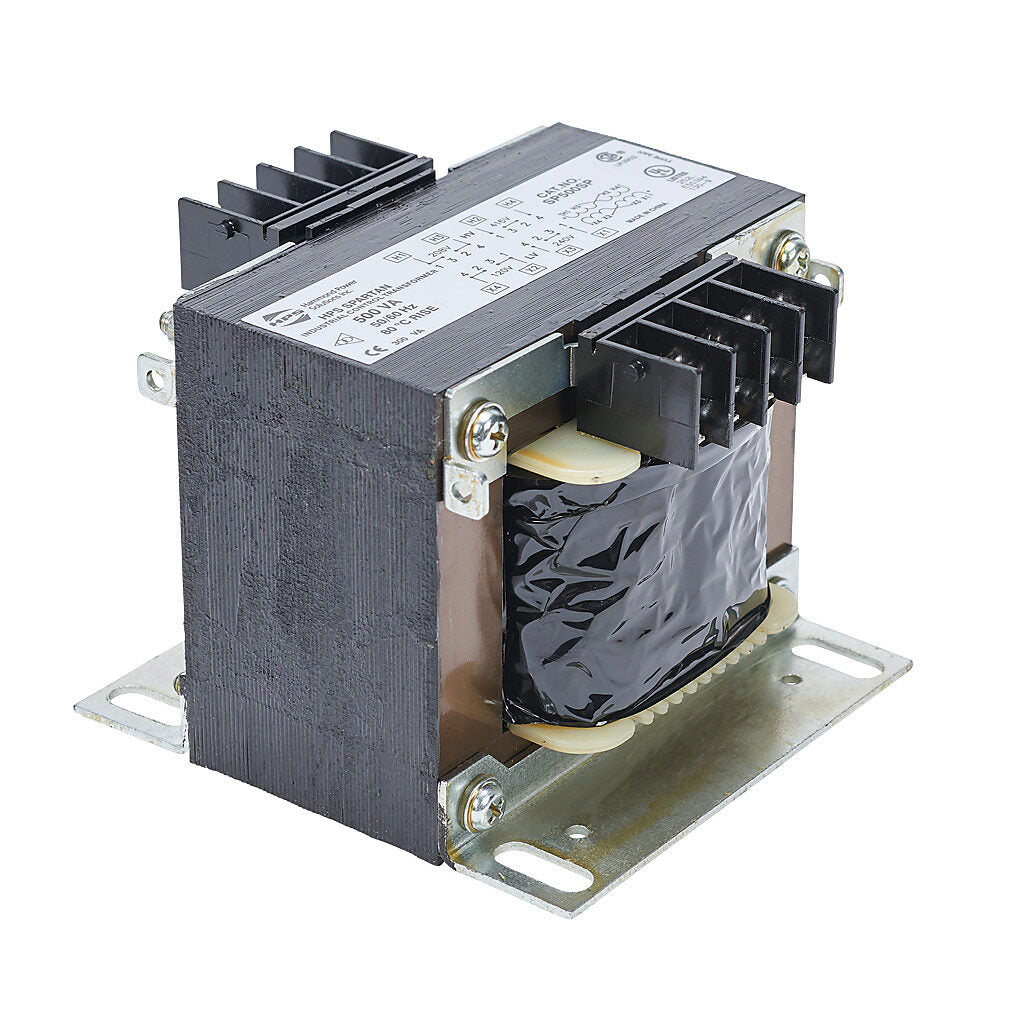

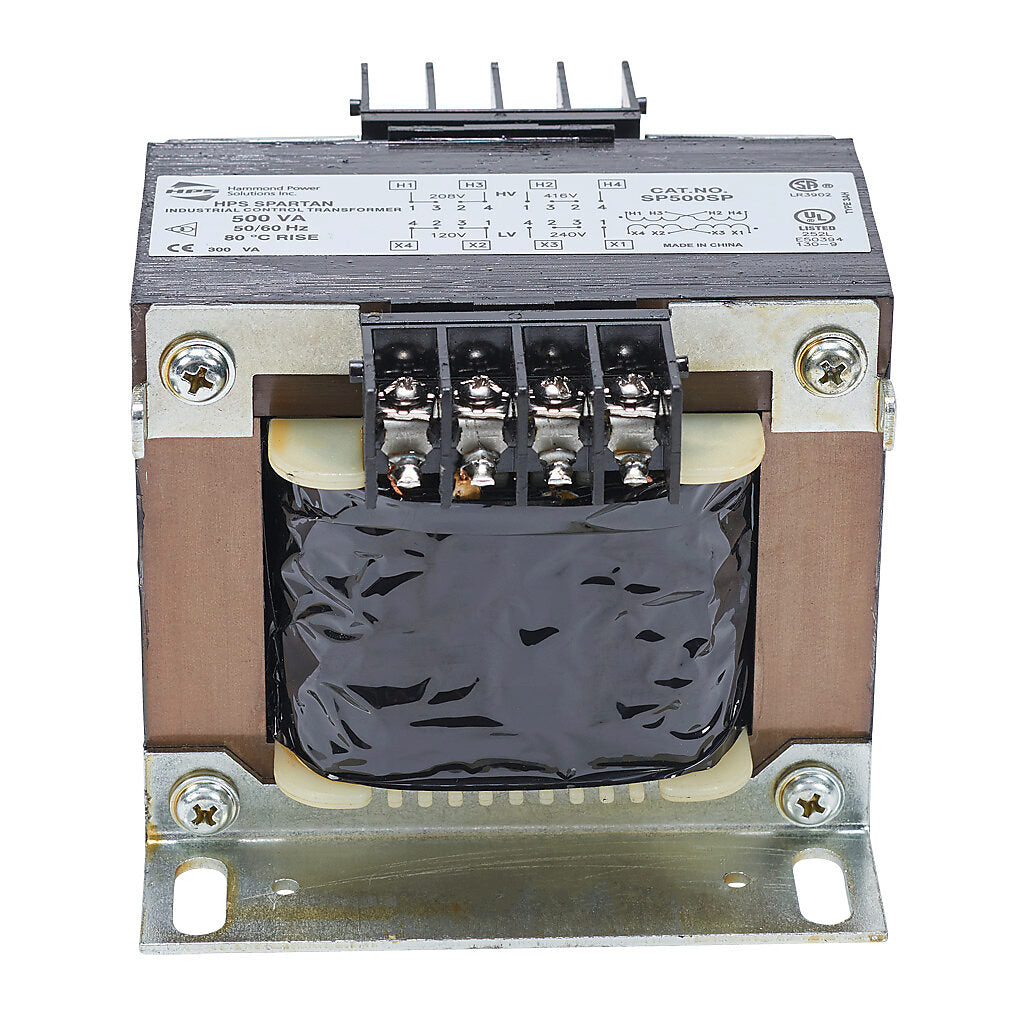

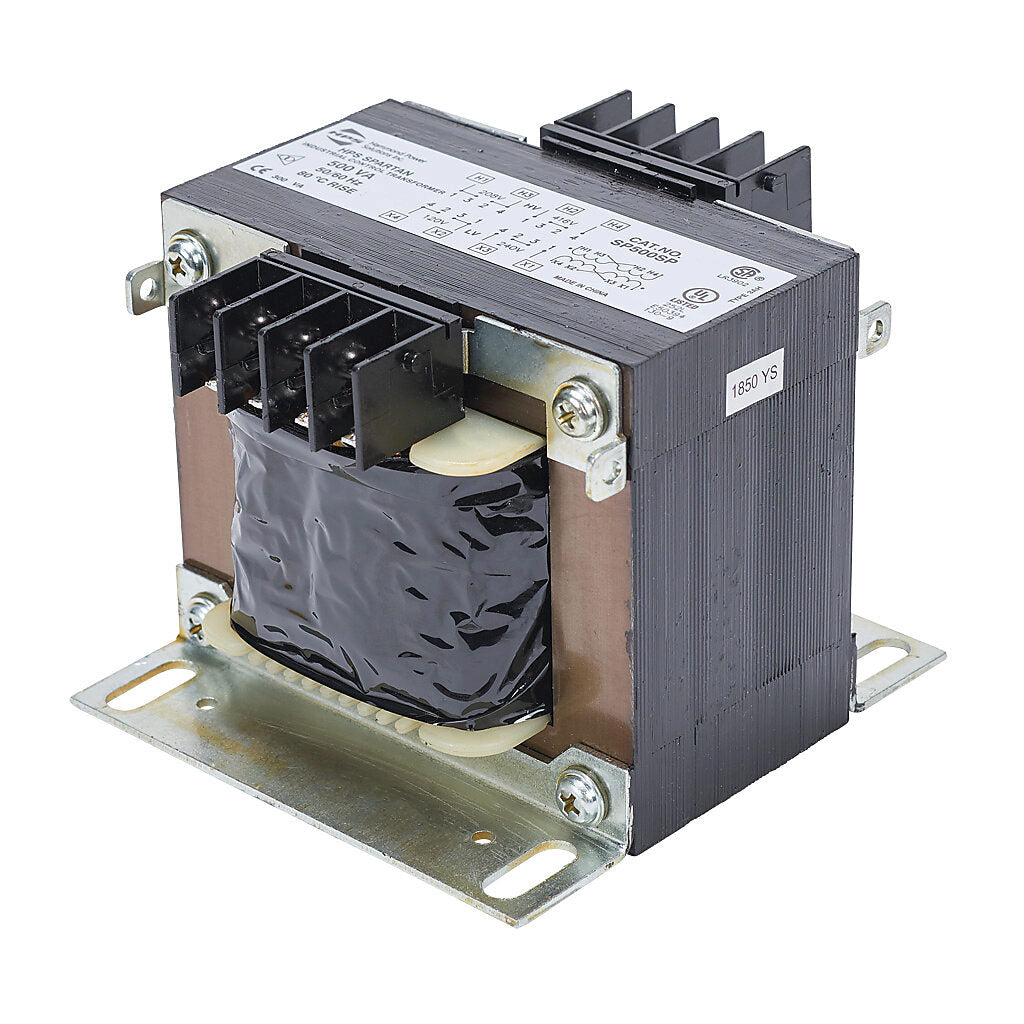

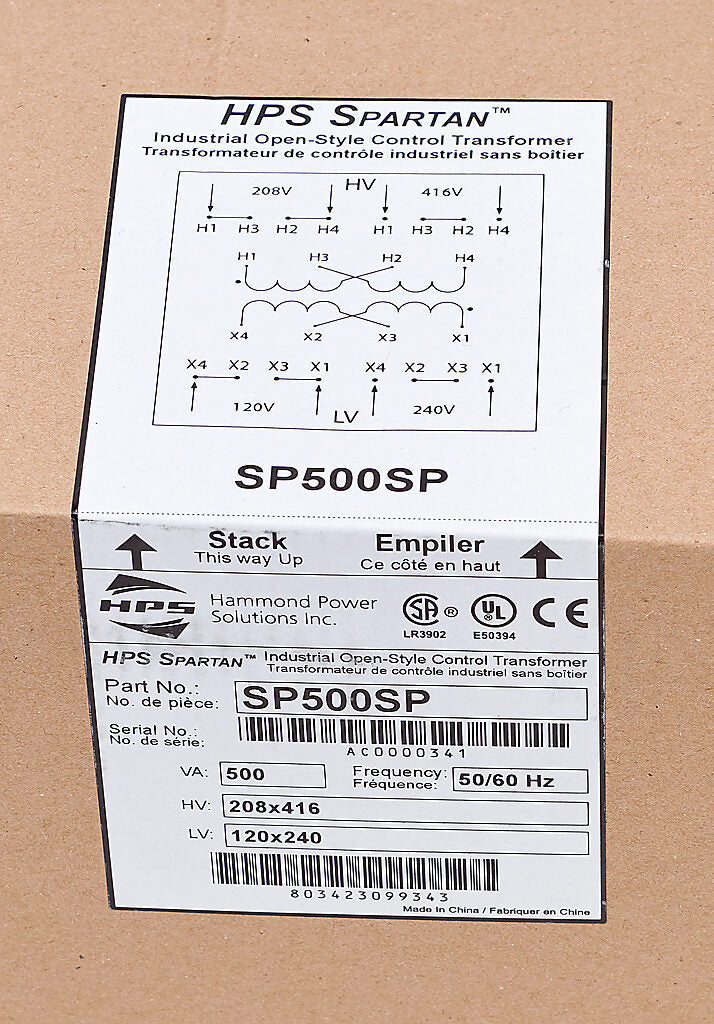

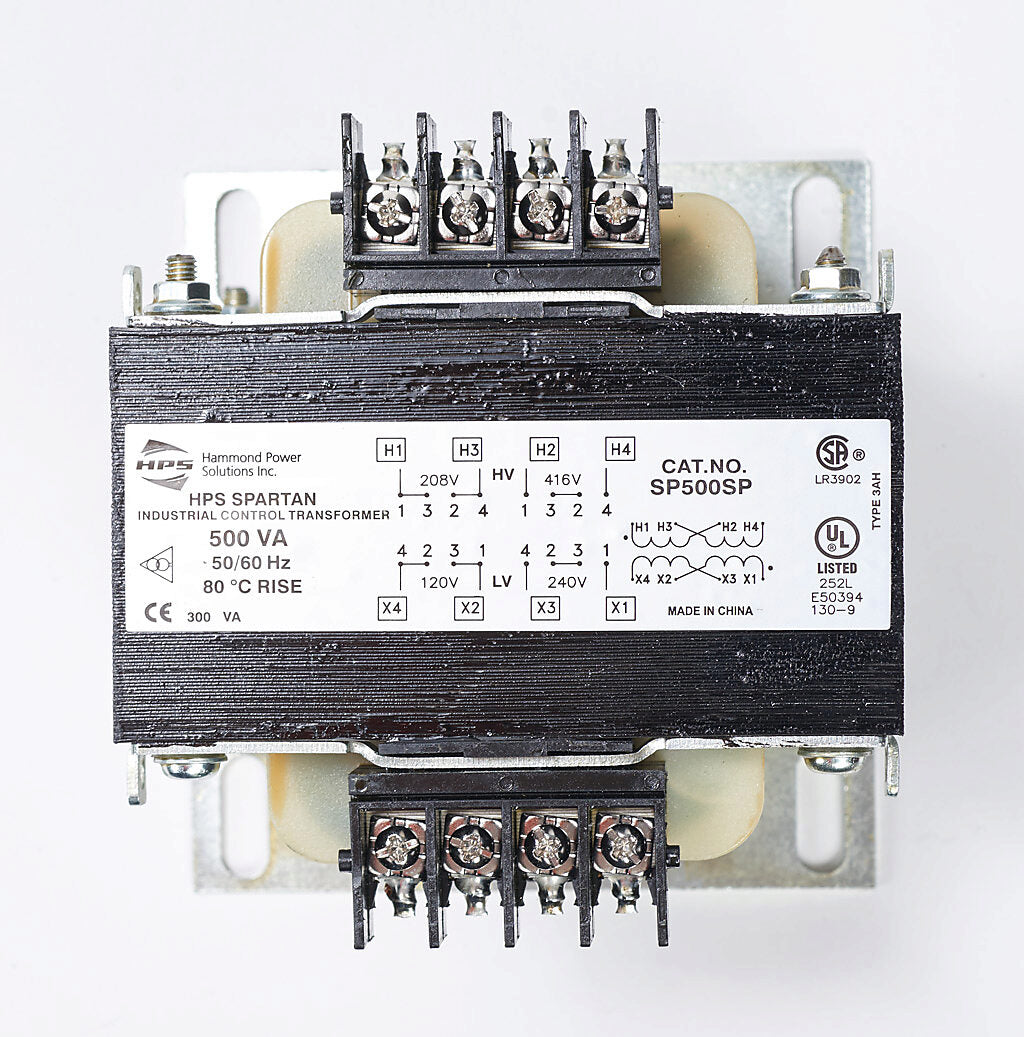

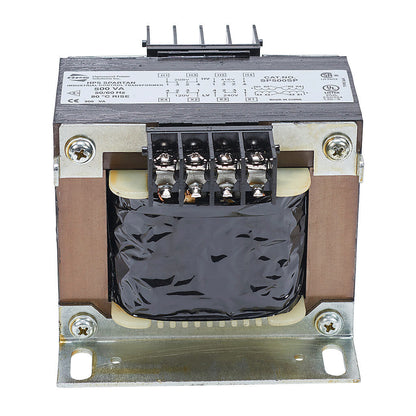

Hammond Power Solutions SP500SP Transformer | 208x416V Primary 120x240V Secondary 50/60Hz Copper Seismic Compliant
Hammond Power Solutions SP500SP Transformer | 208x416V Primary 120x240V Secondary 50/60Hz Copper Seismic Compliant
Price:
Sale
Sold out
Regular price
$147.19 USD
Regular price
$213.00 USD
Sale price
$147.19 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
The SP500SP is a single-phase core and coil transformer designed for industrial power distribution. It features flexible primary voltage inputs of 208x416V and delivers secondary outputs of 120x240V, constructed with copper windings for efficient performance. This transformer is built for high seismic zones, meeting OSHPD and IBC 2018 compliance standards. Typical applications include industrial control systems, machinery power supplies, and electrical equipment requiring reliable voltage transformation.
Key Features:
✔ Part Number: SP500SP
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 50/60Hz
✔ Primary Voltage: 208x416
✔ Primary Connection: Parallel x Series (Vx2V)
✔ Secondary Voltage: 120x240
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ EKVA: 0.740621
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Vector Configuration: 180°
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: Yes
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=1
✔ Seismic SDS Value: Sds=2.0
✔ Primary Termination (Std): Terminal Block
✔ UPC: 803423099343
✔ Weight: 11
✔ Certification: CSA, UL, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
The SP500SP is a single-phase core and coil transformer designed for industrial power distribution. It features flexible primary voltage inputs of 208x416V and delivers secondary outputs of 120x240V, constructed with copper windings for efficient performance. This transformer is built for high seismic zones, meeting OSHPD and IBC 2018 compliance standards. Typical applications include industrial control systems, machinery power supplies, and electrical equipment requiring reliable voltage transformation.
