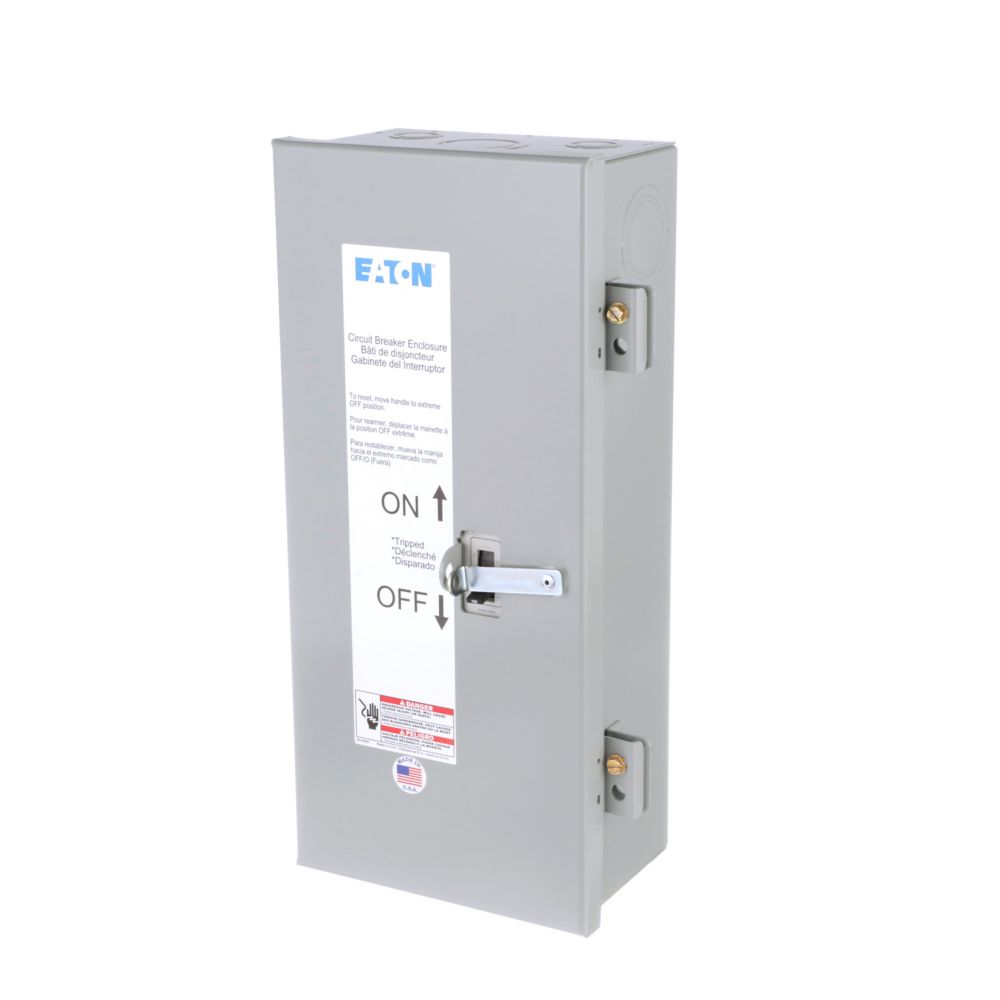

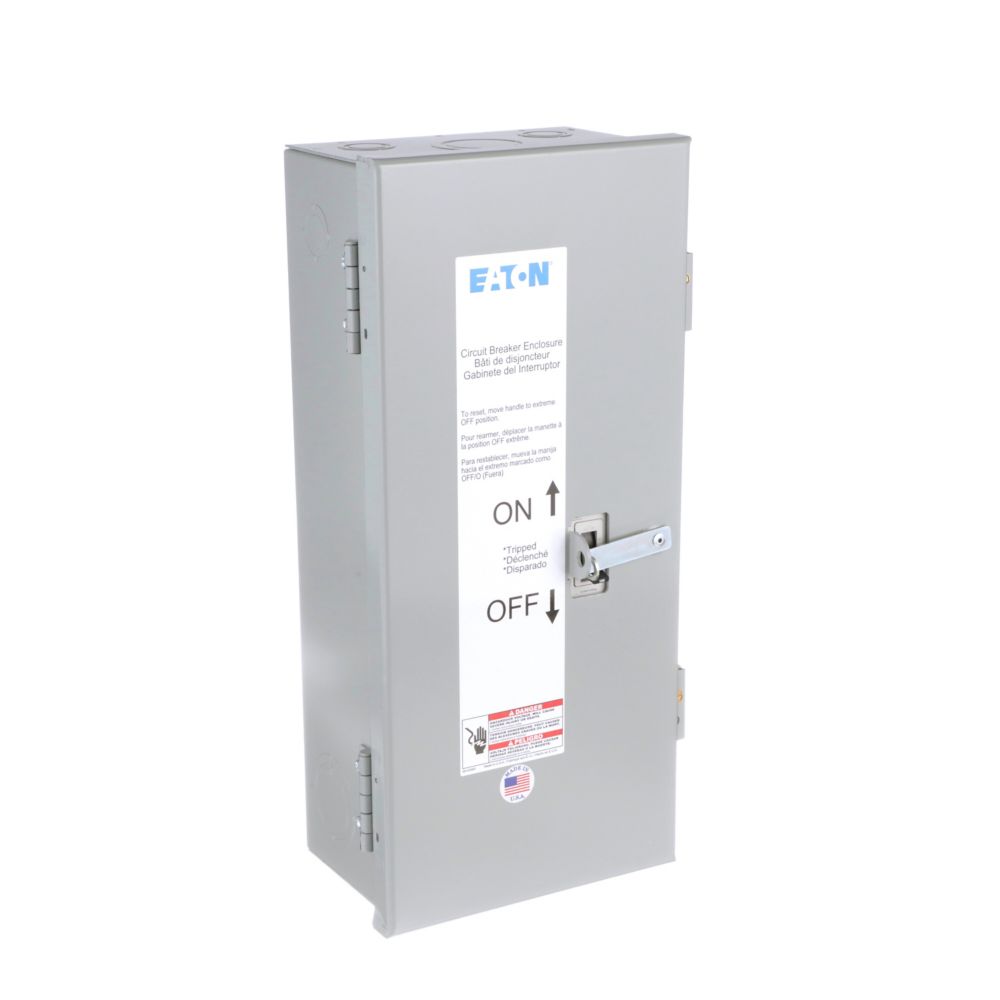

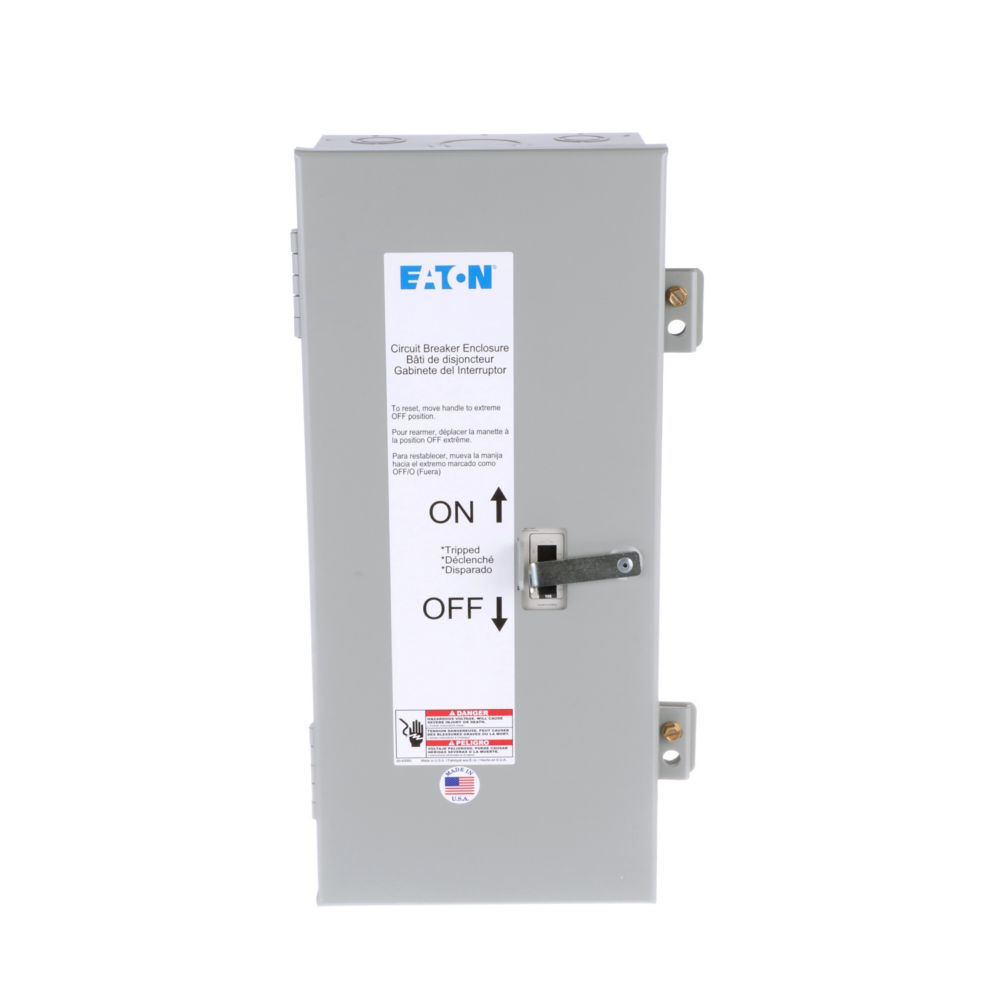

SPD1K0125 Eaton PD1 Frame Breaker Enclosure, NEMA 1 Surface Mount, 3-Pole 125 A

SPD1K0125 Eaton PD1 Frame Breaker Enclosure, NEMA 1 Surface Mount, 3-Pole 125 A

Hanging a three-pole Power Defense breaker on an indoor wall? The SPD1K0125 is the Eaton enclosure set up for that frame. It surface mounts, carries a NEMA 1 rating, and Eaton lists it as accepting a PD1, three-pole, 125 A frame MCCB. Eaton publishes SPD1K0125 as UL Listed and CSA Certified.

Check the frame before you order this one. The Eaton catalog note on SPD1K0125 calls it a Power Defense enclosure and states it is not approved for Series C/G MCCB, so an older Series C or Series G breaker is not the pairing Eaton supports here. Published product measurements on SPD1K0125 are 20.1 in H x 11.2 in W x 10.7 in D at 12.9 lb.

Common Applications

• Wall mounted PD1 frame breaker installations in dry indoor spaces
• Three-pole Power Defense breaker builds at a 125 A frame rating
• Indoor gear locations where NEMA Type 1 is the specified enclosure type
• Jobs that call for UL Listed and CSA Certified breaker enclosures

Key Features

• Surface mount design: Eaton lists surface mounting as the mounting method, so it goes on the wall rather than into it.
• NEMA 1 rated: Type 1 is the indoor rating, covering contact with hazardous parts and falling dirt, with no water rating.
• Three-pole PD1 frame: Sized by Eaton for a PD1, three-pole, 125 A frame molded case breaker.
• 125 A amperage rating: Eaton publishes 125 A as the amperage rating on this catalog number.
• Agency paperwork covered: UL Listed plus CSA Certified per Eaton.
• Series C/G called out: Eaton states this Power Defense enclosure is not approved for Series C/G MCCB.

Specifications

• Catalog Number: SPD1K0125
• Manufacturer: Eaton
• Product Type: Circuit breaker enclosure
• Amperage Rating: 125 A
• Number of Poles: Three-pole
• Enclosure Type: NEMA 1
• Mounting Method: Surface mounting
• Breaker Compatibility: Accepts PD1, 3-pole, 125 A frame MCCB
• Certifications: UL Listed, CSA Certified
• Catalog Notes: Power Defense enclosure, not approved for Series C/G MCCB

Product Identification

• UPC: 786689661878
• Product Dimensions: 20.1 in H x 11.2 in W x 10.7 in D
• Product Weight: 12.9 lb

FAQ

What breaker frame goes in the SPD1K0125?
Eaton lists this enclosure as accepting a PD1, three-pole, 125 A frame molded case circuit breaker.

Can I put a Series C or Series G breaker in it?
No. Eaton's catalog note states this Power Defense enclosure is not approved for Series C/G MCCB.

Is the SPD1K0125 rated for outdoor use?
No. It is a NEMA Type 1 enclosure, and NEMA defines Type 1 as constructed for indoor use with no water protection.

How does it mount?
Eaton specifies surface mounting for this catalog number, so it lands on the wall surface rather than recessed into it.

How big is it and what does it weigh?
Eaton publishes 20.1 in H x 11.2 in W x 10.7 in D and a product weight of 12.9 lb.

What is the amperage rating?
Eaton lists a 125 A amperage rating for SPD1K0125.
