SVX010A1-4A1B1 Eaton SVX Adjustable Frequency Drive, 10 hp, 480 V

SVX010A1-4A1B1 Eaton SVX Adjustable Frequency Drive, 10 hp, 480 V

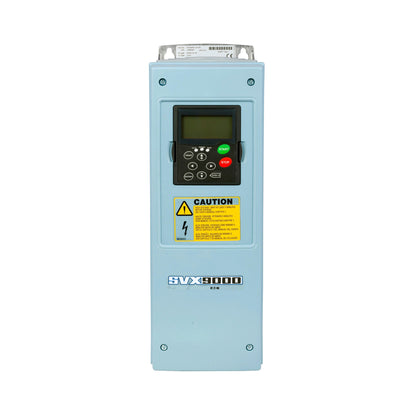

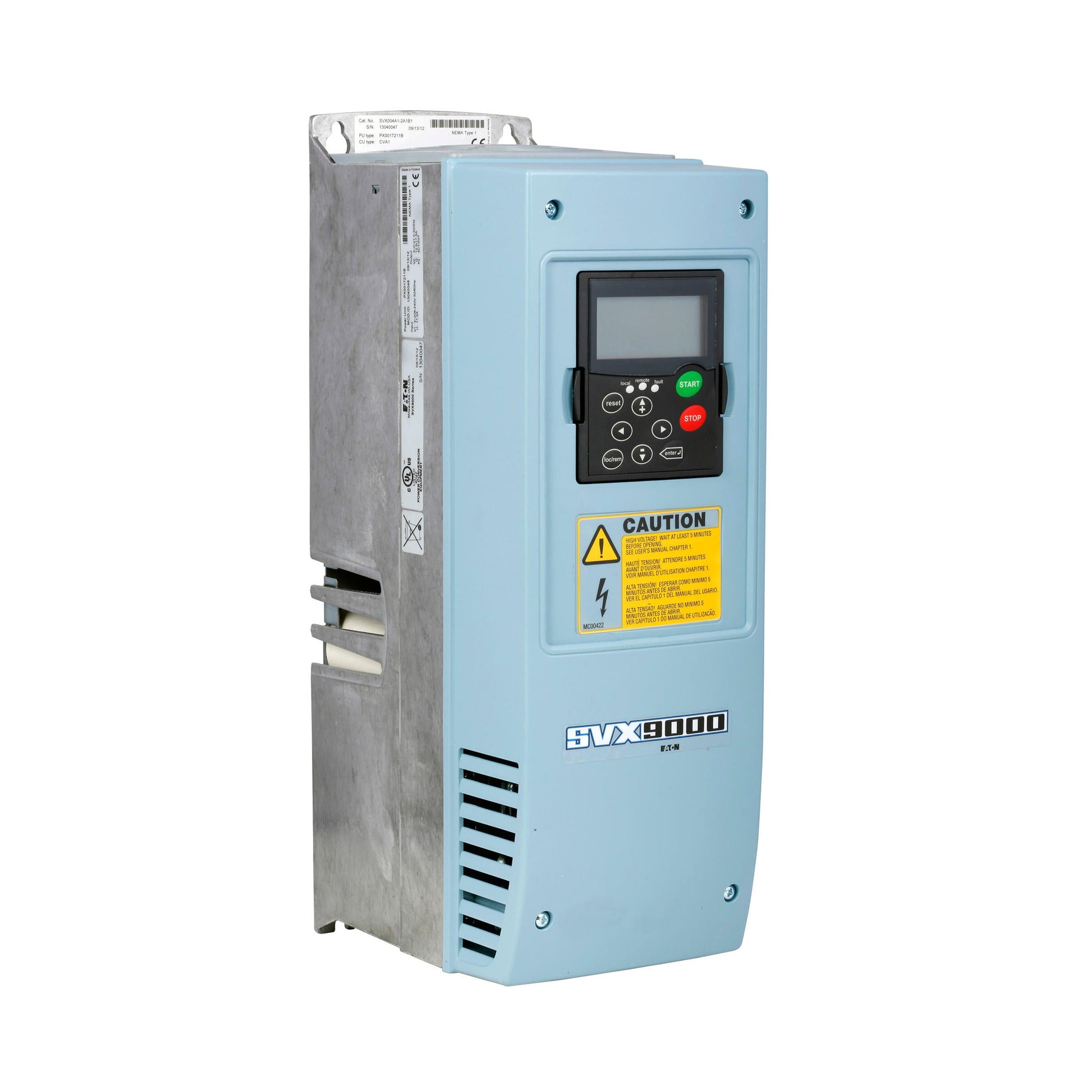

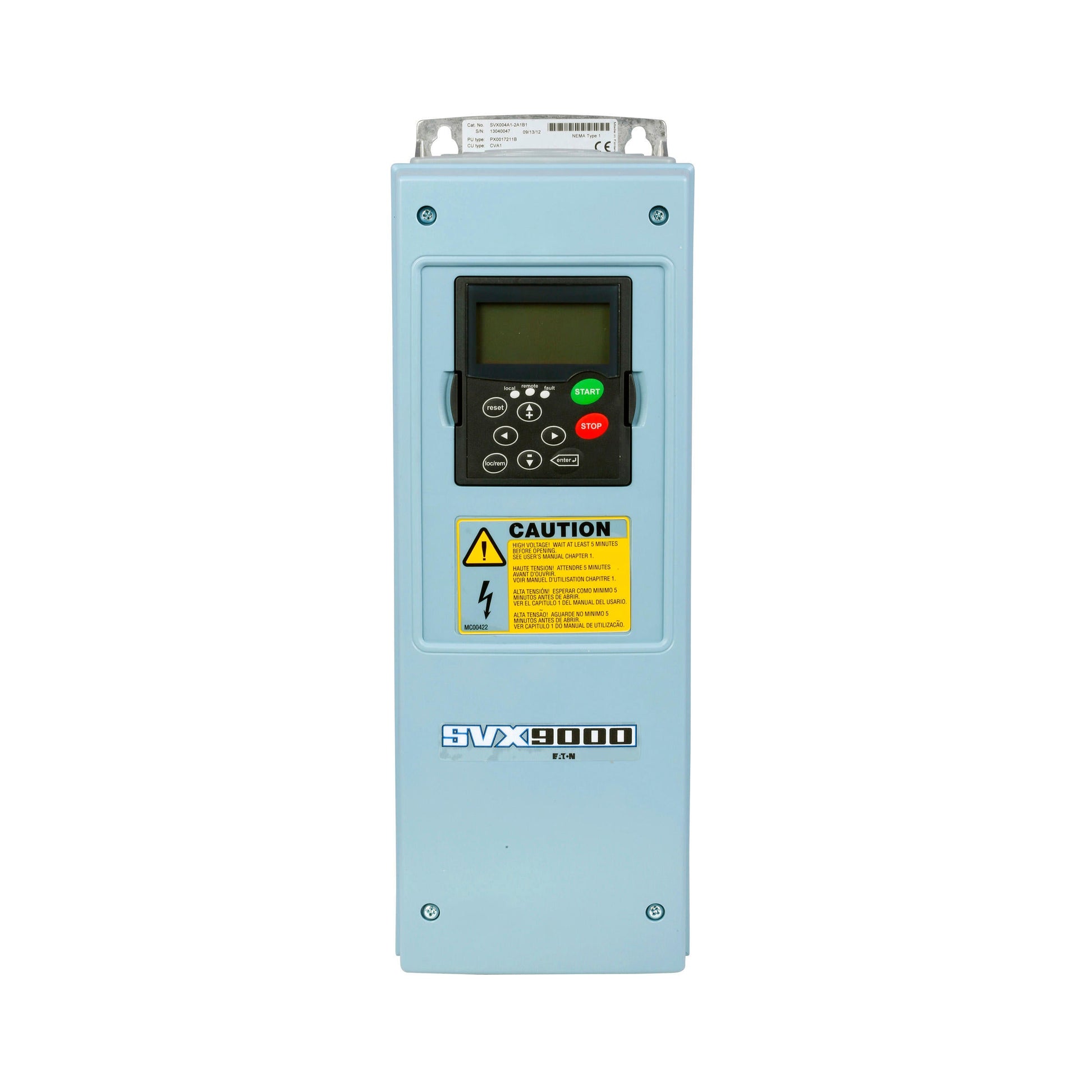

SVX010A1-4A1B1 gives technicians the FR5 SVX configuration with three-phase 380-500 V input and NEMA Type 1/IP21 protection. Match the duty rating before installation: 10 hp at 16 A intensive duty or 15 hp at 23 A light duty.

This build includes Eaton standard software, an alphanumeric keypad, EMC H input, standard boards, and an internal brake chopper.

Common Applications

• Industrial AC motor speed-control work within the exact published ratings
• FR5 drive replacements where SVX010A1-4A1B1 is the required catalog number
• Motor systems using an SVX sensorless vector control platform
• Installations requiring NEMA Type 1/IP21 construction

Key Features

• Keypad: Alphanumeric operator interface
• Brake hardware: Internal brake chopper
• Input option: Three-phase EMC H
• Programming package: Standard software
• Modification: Standard control boards

Specifications

• Input voltage range: 380-500 V
• Intensive-duty output: 10 hp at 16 A
• Light-duty output: 15 hp at 23 A
• Phase: Three-phase
• Frame: FR5
• Protection: NEMA Type 1/IP21
• Overall product size: 16.5 x 5.6 x 8.4 in
• Net product weight: 17.9 lb
• Published standards: IEC 61800-2, UL 508C, EN 61800-3 Level H

Product Identification

• Part number: SVX010A1-4A1B1
• Brand: Eaton
• Drive series: SVX
• Barcode: 782116011490
• Manufacturer warranty: 2 years

FAQ

Is SVX010A1-4A1B1 a circuit breaker?

Eaton identifies the exact part as an adjustable frequency drive rather than a circuit breaker.

What current ratings should be checked?

Use 16 A for intensive-duty selection and 23 A for light-duty selection.

What frame is this Eaton drive?

The exact specification sheet lists an FR5 frame.

What keypad comes with the drive?

Eaton specifies an alphanumeric keypad for this build.
