General Electric TED124100WL Circuit Breaker | 480V 100A 2P 18kA@480V Feed-Thru E150 Line
General Electric TED124100WL Circuit Breaker | 480V 100A 2P 18kA@480V Feed-Thru E150 Line
30 in stock
Couldn't load pickup availability
ABB / GE Branding Notice
On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions. Because of this transition, some products may be labeled as either ABB or GE depending on the manufacturing date and production batch.
Customers may receive products with:
- ABB branding
- GE branding
- Packaging reflecting either brand
Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.
Please contact our support team before ordering if you have questions about labeling, compatibility, or product identification.

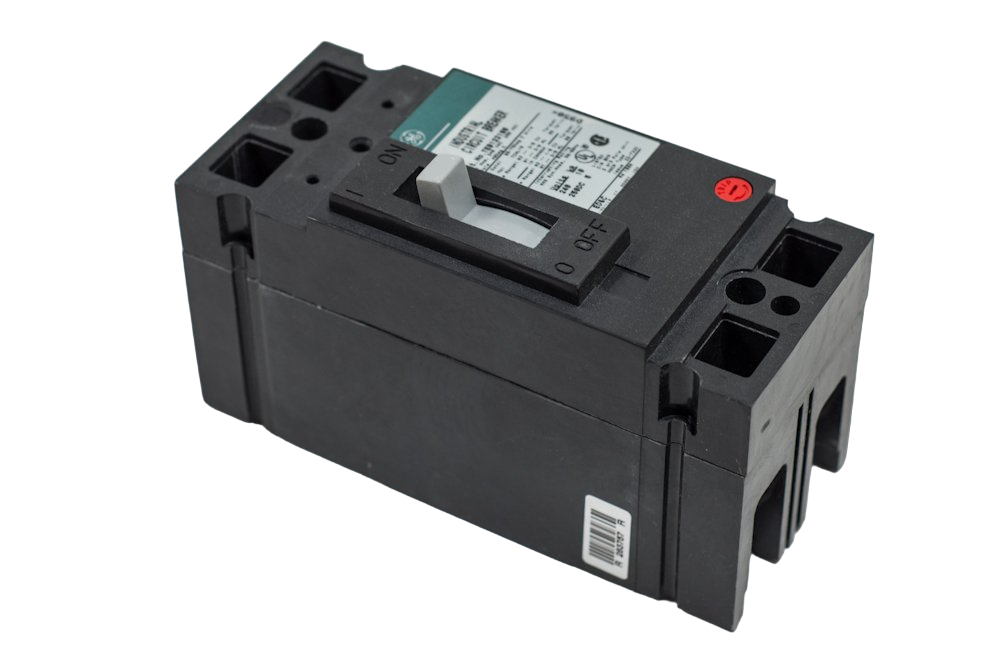

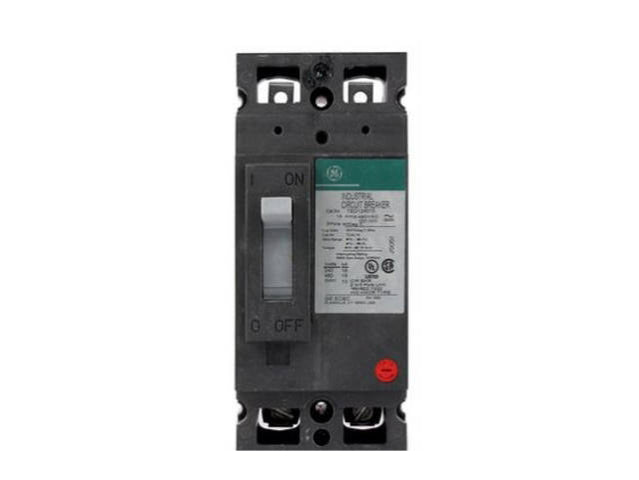

The General Electric TED124100WL is a Molded Case Circuit Breaker from the E150 Line family. It features a 2-pole design with a 480V, 100A rating and an 18kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection. It is compatible with GE Panelboards and meets CSA and UL standards.
Key Features:
✔ Part Number: TED124100WL
✔ Manufacturer: General Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: E150 Line
✔ Type: TED
✔ Voltage: 480
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/TED
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 783164068214
✔ GTIN: 00783164068214
✔ Country of Origin: United States
✔ Dimensions: 2-3/4 in x 6-5/16 in
✔ Weight: 2
✔ Panel Type: GE Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: CSA Certified, UL Listed
