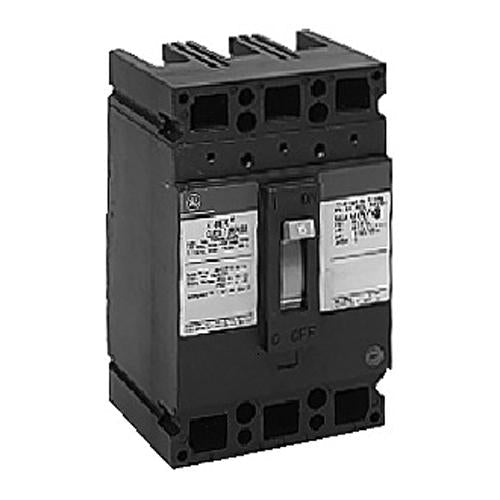

General Electric TED136110WL Circuit Breaker | 600V 110A 3P 18kA@480V Bolt-on Panelboard E150 Line
General Electric TED136110WL Circuit Breaker | 600V 110A 3P 18kA@480V Bolt-on Panelboard E150 Line
Low stock: 3 left
Couldn't load pickup availability
ABB / GE Branding Notice
On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions. Because of this transition, some products may be labeled as either ABB or GE depending on the manufacturing date and production batch.
Customers may receive products with:
- ABB branding
- GE branding
- Packaging reflecting either brand
Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.
Please contact our support team before ordering if you have questions about labeling, compatibility, or product identification.
The General Electric TED136110WL is a Molded Case Circuit Breaker from the E150 Line family. It features a 3-pole design with 600V and 110A ratings, plus an 18kA@480V AIC rating. This breaker uses a bolt-on panelboard connection and offers thermal magnetic protection. It is compatible with GE panelboards and meets CSA and UL standards.
Key Features:
✔ Part Number: TED136110WL
✔ Manufacturer: General Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: E150 Line
✔ Type: TED
✔ Voltage: 600
✔ Amperage: 110
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-on Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/TED
✔ MCM Size: Min. Wire Size 4 AWG (Al), 6 AWG (Cu) Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783164132908
✔ GTIN: 00783164132908
✔ Country of Origin: United States
✔ Dimensions: 4-1/8 in x 6-5/16 in
✔ Weight: 3
✔ Panel Type: GE Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: CSA Certified, UL Listed
✔ Wire Size: 2 to 1/0 AWG
