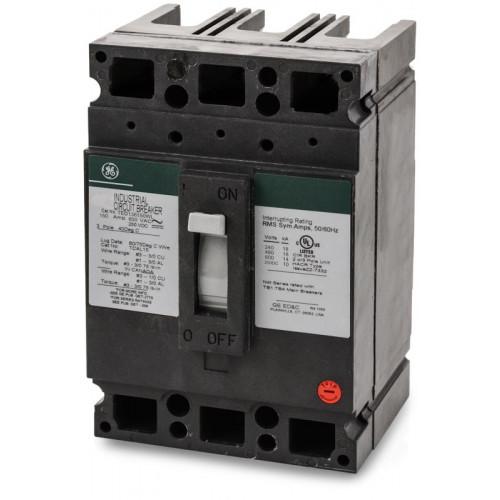

General Electric TED136150WL Molded Case Circuit Breaker | 600V 150A 3P 18kA@480V Bolt-on Panelboard E150 Line
General Electric TED136150WL Molded Case Circuit Breaker | 600V 150A 3P 18kA@480V Bolt-on Panelboard E150 Line
Out of stock
Couldn't load pickup availability
ABB / GE Branding Notice
On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions. Because of this transition, some products may be labeled as either ABB or GE depending on the manufacturing date and production batch.
Customers may receive products with:
- ABB branding
- GE branding
- Packaging reflecting either brand
Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.
Please contact our support team before ordering if you have questions about labeling, compatibility, or product identification.
The General Electric TED136150WL is a Molded Case Circuit Breaker from the E150 Line family. This 3-pole breaker is rated for 150 amps and 600 volts, with an AIC rating of 18kA@480V. It features a bolt-on panelboard connection and provides thermal magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: TED136150WL
✔ Manufacturer: General Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: E150 Line
✔ Type: TED
✔ Voltage: 600
✔ Amperage: 150
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-on Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/TED
✔ MCM Size: Min. Wire Size 4 AWG (Al), 6 AWG (Cu) Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783164132977
✔ GTIN: 00783164132977
✔ Country of Origin: United States
✔ Dimensions: 4-1/8 in x 6-5/16 in
✔ Weight: 3
✔ Panel Type: GE Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: CSA Certified, UL Listed
