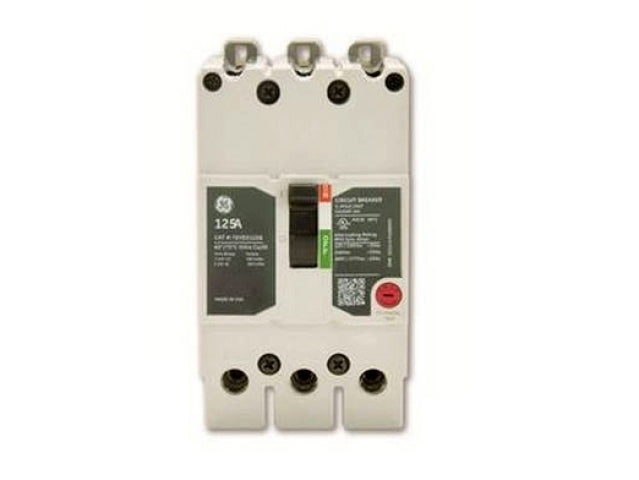

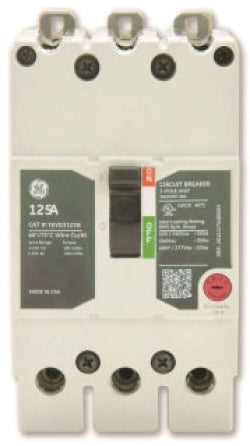

General Electric TEYD3090B Circuit Breaker | 480V 90A 3P 25kA@480V Bolt-On TEYD Series
General Electric TEYD3090B Circuit Breaker | 480V 90A 3P 25kA@480V Bolt-On TEYD Series
Out of stock
Couldn't load pickup availability
ABB / GE Branding Notice
On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions. Because of this transition, some products may be labeled as either ABB or GE depending on the manufacturing date and production batch.
Customers may receive products with:
- ABB branding
- GE branding
- Packaging reflecting either brand
Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.
Please contact our support team before ordering if you have questions about labeling, compatibility, or product identification.
The General Electric TEYD3090B is a Molded Case Circuit Breaker from the TEYD Series family. It features a 3-pole design with a 480V voltage rating and 90 amp capacity, offering reliable thermal magnetic protection. This bolt-on circuit breaker has an AIC rating of 25kA@480V, making it suitable for industrial applications.
Key Features:
✔ Part Number: TEYD3090B
✔ Manufacturer: General Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: TEYD Series
✔ Type: TEYD
✔ Voltage: 480
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 25kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/TEY
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783164461725
✔ GTIN: 00783164461824
✔ Country of Origin: United States
✔ Weight: 2 lb
✔ Panel Type: GE AS Lighting Panels
✔ Standards: UL
