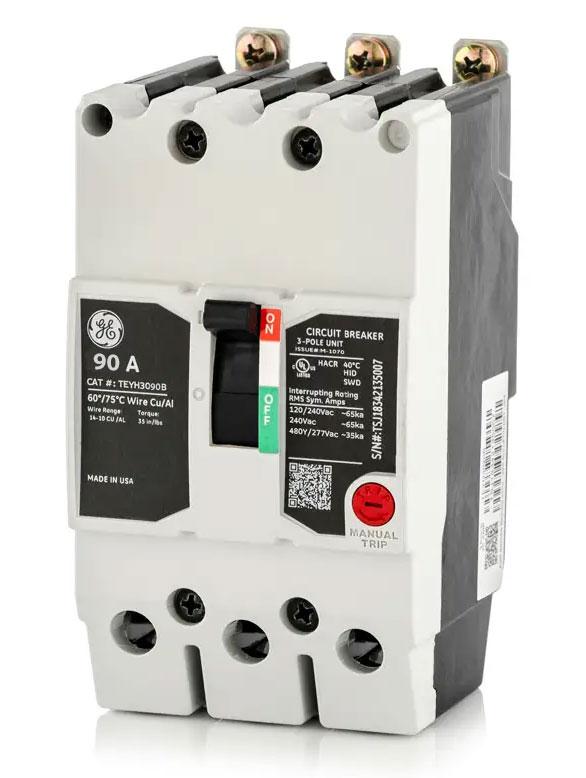

General Electric TEYH3090B Circuit Breaker | 480V 90A 3P 35kA@480V Bolt-On TEYH Series
General Electric TEYH3090B Circuit Breaker | 480V 90A 3P 35kA@480V Bolt-On TEYH Series
12 in stock
Couldn't load pickup availability
ABB / GE Branding Notice
On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions. Because of this transition, some products may be labeled as either ABB or GE depending on the manufacturing date and production batch.
Customers may receive products with:
- ABB branding
- GE branding
- Packaging reflecting either brand
Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.
Please contact our support team before ordering if you have questions about labeling, compatibility, or product identification.
The General Electric TEYH3090B is a Molded Case Circuit Breaker from the TEYH Series. It features a 3-pole design with a 480V voltage rating and 90A amperage capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 35kA@480V. It is compatible with GE AS Lighting Panels and uses a Bolt-On connection for secure installation.
Key Features:
✔ Part Number: TEYH3090B
✔ Manufacturer: General Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: TEYH Series
✔ Type: TEYH
✔ Voltage: 480
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/TEY
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 078316446225
✔ GTIN: 00783164462227
✔ Country of Origin: United States
✔ Weight: 2 lb
✔ Panel Type: GE AS Lighting Panels
✔ Standards: UL
